Lexus, Toyota Coilover Spring and Shock Assembly - Front - ICON Vehicle Dynamics - 58746C

COILOVER KIT
58746C
Factory Wheels and Tires Fitment: Yes
Recommended Aftermarket Wheels: ICON Alloys - 17x8.
5 w/ 4.
75" Backspace / 0mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 18x9 w/ 5" Backspace / 0mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 20x9 w/ 5" Backspace / 0mm Offset
Recommended Aftermarket Tires: 33" x 11.
50" (Larger Tires May Fit but Fender Trimming and Modifications will be Required)
APPLICATION NOTE #47: 700lb coil spring available for heavier equipped vehicles.
APPLICATION NOTE #55: Shocks are fully serviceable.
Lift heights indicated are for a stock equipped vehicle.
APPLICATION NOTE #111: Bump stop spacer kit available that can be installed to increase threads showing beyond max recommendation.
TECH NOTE: Standard travel length coilovers are compatible with stock front upper control arms
10-14 FJ/10-24 4RUNNER 2.

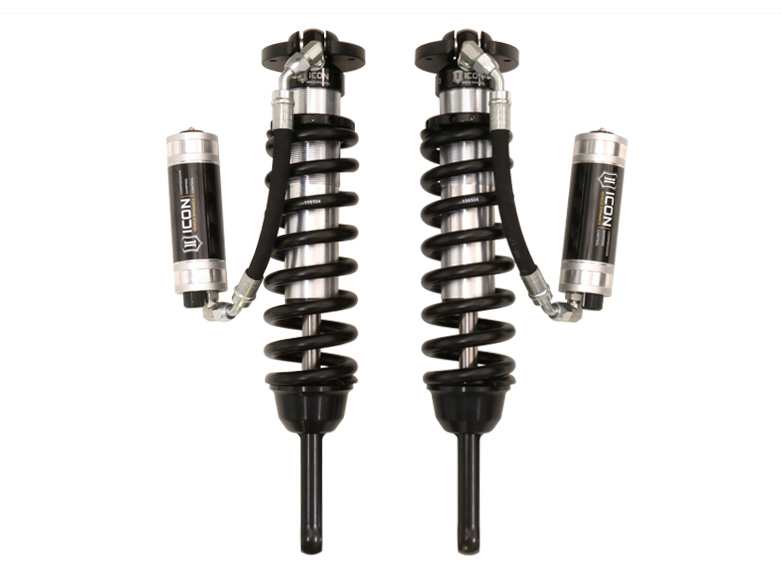

5 VS RR CDCV COILOVER KIT
These ICON coilovers feature 2.
5 Series shocks and coil springs optimized for this application.
The shock’s larger 2.
5” body and increased piston area improves damping ability and ride quality across varying types of terrain.
ICON Vehicle Dynamics V.
S.
2.
5 Series internal reservoir front coilover shocks are an incredible upgrade for the front end of the 2010-2024 Toyota 4Runner, 2010-2014 Toyota FJ Cruiser, and 2010-2023 Lexus GX460.
These adjustable coilovers allow up to 0-3.
5” of lift height adjustability, allowing the use of larger, more aggressive wheel and tire combinations.
ICON’s Vehicle-specific shock length and valving along with the larger 2.
5” shock body and increased piston area over stock components yield the maximum travel possible, while still being compatible with the vehicle’s stock front upper control arms, along with superior ride quality and suspension performance both on- and off-road.
Remote reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade.
ICON's exclusive Compression Damping Control Valves are included for precisely dialing in your suspension performance.
CDCV controls fluid flow under compression, allowing you to achieve the perfect tune whether driving on the street, slow-crawling through the rocks or mobbing across the desert at full throttle.
When paired with ICON 2.
0 or 2.
5 Aluminum Series rear shock absorbers vehicle control will be balanced front to rear, resulting in the best overall driving experience for your Toyota 4Runner, FJ Cruiser or Lexus GX460.
Increased wheel travel and improved ride quality over stock
Vehicle specific tuned for superior shock damping and control
Adjustable ride height for 0-3.
5" of front lift height over stock
Remote reservoirs maintain cooler operating temperatures during extended off-road use
ICON CDCV equipped for 10 settings of external compression damping adjustment
ICON engineered coil springs
6061 Aircraft grade aluminum CNC machined components
Corrosion resistant CAD plated shock bodies with 7/8" diameter shafts
FK rod end bearings for extended longevity and minimal deflection
Fully rebuildable and re-tunable
100% Bolt-on - no drilling, cutting or welding necessary for installation
ICON 2010-2024 Toyota 4Runner/2010-2014 FJ Cruiser/2010-2023 Lexus GX460, 0-3.
5" Lift, V.
S.
2.
5 Series Coilover Kit, Remote Reservoir w/ CDCV, 58746C
ICON 2010-2024 Toyota 4Runner/2010-2014 FJ Cruiser/2010-2023 Lexus GX460, 0-3.
5" Lift, V.
S.
2.
5 Series Coilover Kit, Remote Reservoir w/ CDCV
ICON 10-14 FJ/10-24 4RUNNER 2.
5 VS RR CDCV COILOVER KIT.

Detailed Fitment Results
Year Make Model 2010 Lexus GX460 2010 Toyota 4Runner 2010 Toyota FJ Cruiser 2011 Lexus GX460 2011 Toyota 4Runner 2011 Toyota FJ Cruiser 2012 Lexus GX460 2012 Toyota 4Runner 2012 Toyota FJ Cruiser 2013 Lexus GX460 2013 Toyota 4Runner 2013 Toyota FJ Cruiser 2014 Lexus GX460 2014 Toyota 4Runner 2014 Toyota FJ Cruiser 2015 Lexus GX460 2015 Toyota 4Runner 2016 Lexus GX460 2016 Toyota 4Runner 2017 Lexus GX460 2017 Toyota 4Runner 2018 Lexus GX460 2018 Toyota 4Runner 2019 Lexus GX460 2019 Toyota 4Runner 2020 Lexus GX460 2020 Toyota 4Runner 2021 Lexus GX460 2021 Toyota 4Runner 2022 Lexus GX460 2022 Toyota 4Runner 2023 Lexus GX460 2023 Toyota 4Runner 2024 Toyota 4Runner
