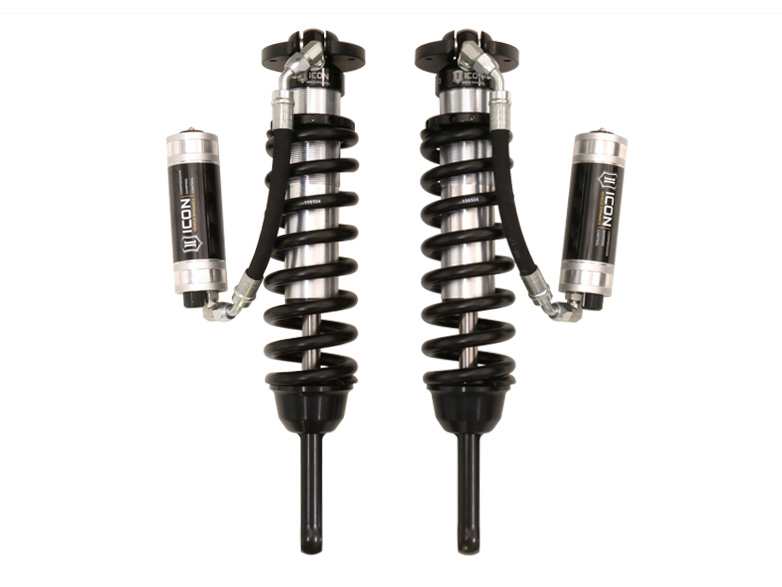

Lexus, Toyota Coilover Spring and Shock Assembly - Front - ICON Vehicle Dynamics - 58745C-700

FJ/T4R/GX COILOVERS
FJ/T4R/GX EXT CDCV COILOVER KIT 700LB
Factory Wheels and Tires Fitment: Yes
Recommended Aftermarket Wheels: ICON Alloys - 17x8.
5 w/ 4.
75" Backspace / 0mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 18x9 w/ 5" Backspace / 0mm Offset
Recommended Aftermarket Tires: 33" x 11.
50" (Larger Tires May Fit but Fender Trimming and Modifications will be Required)
TECH NOTE: Aftermarket front upper control arms required for installation
TECH NOTE: 700lb/in spring rate only recommended for trucks with additional weight added to front end.
See ICON Help Center for information.
07-09 FJ/03-09 4RNR/03-09 GX EXT TRAVEL CDCV COILOVER KIT 700LB
2007-2009 FJ CRUISER/2003-2009 4RUNNER/2003-2009 GX470 EXTENDED TRAVEL CDCV COILOVER KIT WITH 700LB COILS
The ICON Vehicle Dynamics V.
S.
2.
5 Series remote reservoir coilover shocks are an incredible upgrade for the front end of the Toyota FJ Cruiser, 4Runner, and Lexus GX platforms.
ICON’s Vehicle-specific valving provides a sport tuned feel on and off-road while offering 0-3.
5” of lift height adjustability for use of larger, more aggressive wheel and tire combinations.
ICON's larger 2.
5” shock body and increased piston area over stock components provides improved damping ability and outstanding ride characteristics across varying types of terrain.
Remote reservoirs ensure optimum performance by increasing the duration of consistent damping regardless of situation, keeping the shocks at a cooler operating temperature during heavy use.
The ICON CDC Valve upgrade is included for those desiring an easy way to tune the ride externally with 10 adjustment settings from soft to hard.
Upgraded coil springs are included to better support added weight from accessories such as front bumpers and winches.
These extended length versions offer increased wheel travel but also require the installation of aftermarket upper control arms in conjunction with the coilovers.
When paired with ICON 2.
0 Aluminum Series or 2.
5 Series rear shocks, vehicle control will be balanced front to rear resulting in the best overall driving experience for your Toyota or Lexus SUV.
Adjustable coilovers yield 0-3.
5" of front lift height
Increased wheel travel and vehicle specific valving provides unrivaled ride quality across a wide range of on and off-road use
Extended Travel length requires installation of aftermarket front upper control arms
Superior low speed control reduces body roll and increases on-road stability
External reservoir to attain cooler operating temperatures during extended off-road use
ICON's CDC Valve technology allows for 10 levels of high-resolution compression adjustability with the turn of a knob
High quality ICON-engineered coil springs with higher spring rate included to better support added weight to front end
Corrosion resistant CAD plated shock body with 7/8" shaft
FK Rod End bearings provide extended longevity and minimal deflection
Fully serviceable design allows for revalves, rebuilds, and an immeasurable service life
Bolt-in design makes for an easy install into OEM shock location
ICON 07-09 Toyota FJ/03-09 4Rnr/03-09 GX, Ext Travel RR/CDCV Coilover Kit, 700lb, 58747C-700
ICON 07-09 Toyota FJ/03-09 4Rnr/03-09 GX, Ext Travel RR/CDCV Coilover Kit, 700lb.

Detailed Fitment Results
Year Make Model 2003 Lexus GX470 2003 Toyota 4Runner 2004 Lexus GX470 2004 Toyota 4Runner 2005 Lexus GX470 2005 Toyota 4Runner 2006 Lexus GX470 2006 Toyota 4Runner 2007 Lexus GX470 2007 Toyota 4Runner 2007 Toyota FJ Cruiser 2008 Lexus GX470 2008 Toyota 4Runner 2008 Toyota FJ Cruiser 2009 Lexus GX470 2009 Toyota 4Runner 2009 Toyota FJ Cruiser
