Lexus, Toyota Coilover Spring and Shock Assembly - Front - ICON Vehicle Dynamics - 58740

FJ/T4R COILOVER KIT
FJ/4RUNNER 2.
5 VS RR COILOVER KIT
Factory Wheels and Tires Fitment: Yes
Recommended Aftermarket Wheels: 8.
5" wide wheel with 4.
75" backspace
Recommended Aftermarket Tires: 33" x 11.
50" (Larger Tires May Fit but Fender Trimming and Modifications will be Required)
07-09 FJ/03-09 4RUNNER 2.
5 VS RR COILOVER KIT

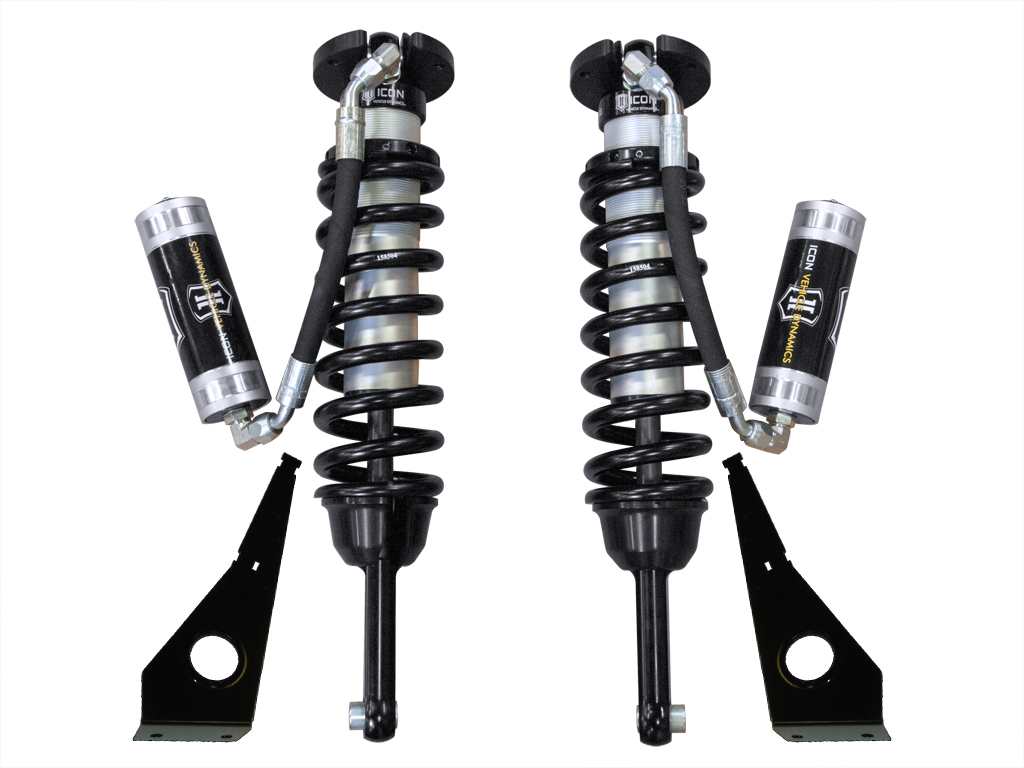

2007-2009 FJ CRUISER/2003-2009 4RUNNER 2.
5 VS REMOTE RESERVOIR COILOVER KIT
ICON Vehicle Dynamics has taken their already perfect performing coilover shocks and given it the heat dissipation and long lasting performance of a full blown race shock.
All of this has been developed to bolt on and install with ease.
They increase suspension travel and dramatically increase the capabilities of your FJ Cruiser or 4Runner's front suspension.
These coilovers come complete with all the hardware necessary to complete the installation as well as a sway bar relocation bracket kit to adjust the location of the sway bar to clear the larger shock.
Adjustable ride height from 0" - 3"
Race shock piston with flutter stack compression valving
Kit Includes Sway bar relocation brackets
Kit also Includes Reservoir Mounting Brackets
Cad-plated threaded body / Extreme Weather Plating Option Available
Billet aluminum upper mount
5/8" PTFE-lined spherical bearing
Completely re-buildable
Hose Length Optimized for Increased Fluid Transfer
Mounting Bracket Orients Reservoir for Optimum Tire Clearance
External Reservoir Ensures Maximum Cooling
Chrome-silicon spring
250 PSI nitrogen-charged internal reservoir
ICON 03-09 4Runner/2007-09 FJ Cruiser, 2.
5 VS Remote Reservoir Coilover Kit, 58740
ICON 03-09 4Runner/2007-09 FJ Cruiser, 2.
5 VS Remote Reservoir Coilover Kit.

Detailed Fitment Results
Year Make Model 2003 Lexus GX470 2003 Toyota 4Runner 2004 Lexus GX470 2004 Toyota 4Runner 2005 Lexus GX470 2005 Toyota 4Runner 2006 Lexus GX470 2006 Toyota 4Runner 2007 Lexus GX470 2007 Toyota 4Runner 2007 Toyota FJ Cruiser 2008 Lexus GX470 2008 Toyota 4Runner 2008 Toyota FJ Cruiser 2009 Lexus GX470 2009 Toyota 4Runner 2009 Toyota FJ Cruiser
