05-23 Toyota Tacoma (4WD/RWD) Coilover Spring and Shock Assembly - Front - ICON Vehicle Dynamics - 58731-700-CB

COILOVER KIT
58731-700-CB
TECH NOTE: Coilover length optimized for Pro Comp 6" lift but may also be compatible with others
TECH NOTE: 700lb/in spring rate only recommended for trucks with additional weight added to front end.
See ICON Help Center for information.
05-23 TACOMA 2.
5 VS RR COILOVER KIT W PROCOMP 6"-700
These ICON coilovers feature 2.
5 Series shocks and coil springs optimized for this application.
The shock’s larger 2.
5” body and increased piston area improves damping ability and ride characteristics across varying types of terrain.
ICON Vehicle Dynamics V.
S.
2.

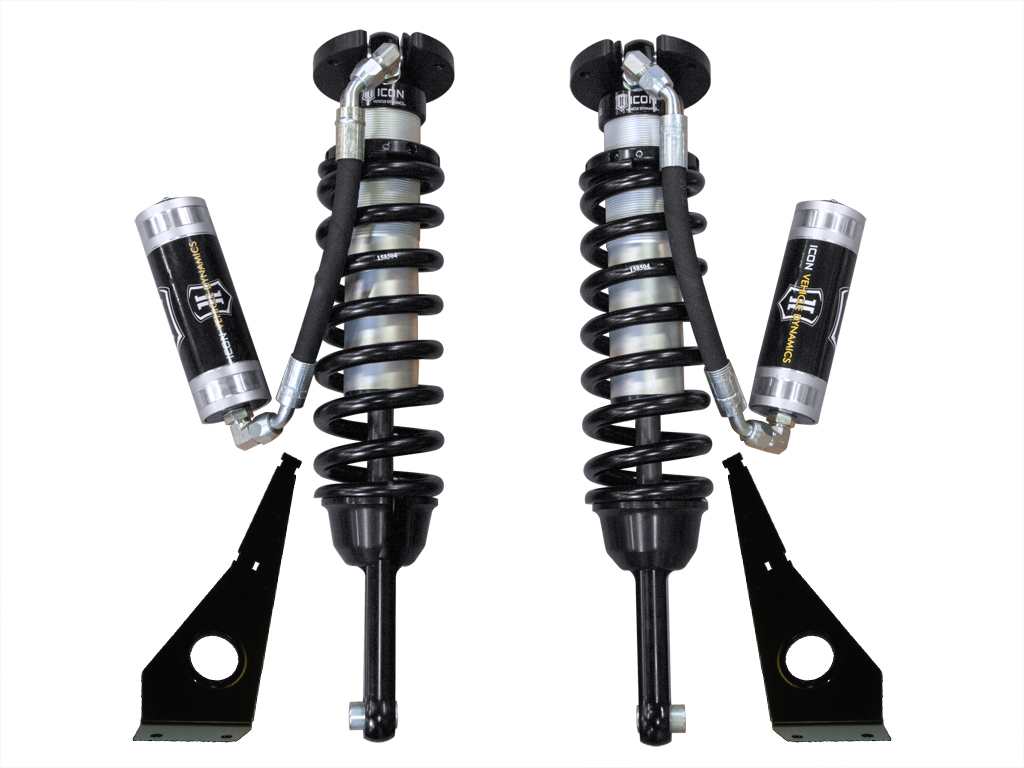

5 Series remote reservoir front coilover shocks are an incredible upgrade for the front end of the 2005-2023 Toyota Tacoma equipped with the Pro Comp 6” lift kit.
These coilovers offer lift height adjustability, allowing fine tuning of ride height or the use of larger, more aggressive wheel and tire combinations.
ICON’s Vehicle-specific shock length and valving along with the larger 2.
5” shock body and increased piston area over stock components yield the maximum travel possible along with superior ride quality and suspension performance both on- and off-road.
To better support the weight of additional accessories such as aftermarket front bumpers and winches, these coilovers include ICON engineered coil springs with an increased, 700 lbs/in spring rate, allowing for taller ride heights with increased front end weight.
Remote reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade.
When paired with ICON 2.
0 or 2.
5 Aluminum Series rear shock absorbers vehicle control will be balanced front to rear, resulting in the best overall driving experience for your Toyota Tacoma.
Increased wheel travel and improved ride quality over stock
Vehicle specific tuned for superior shock damping and control
Height-adjustable coilovers with application specific length for fitment with Pro Comp 6" lift kits
Remote reservoirs maintain cooler operating temperatures during extended off-road use
ICON engineered coil springs with 700 lbs/in spring rate are more ideal for heavier equipped front ends
6061 Aircraft grade aluminum CNC machined components
Corrosion resistant CAD plated shock bodies with 7/8" diameter shafts
FK rod end bearings for extended longevity and minimal deflection
Fully rebuildable and re-tunable
ICON 2005-2023 Toyota Tacoma 2.
5 VS Remote Reservoir Coilover Kit for Pro Comp 6” Lift, 700 lbs/in Coils, 58731-700-CB
ICON 2005-2023 Toyota Tacoma 2.
5 VS Remote Reservoir Coilover Kit for Pro Comp 6” Lift, 700 lbs/in Coils
ICON 05-23 TACOMA 2.
5 VS RR COILOVER KIT W PROCOMP 6"-700.

Detailed Fitment Results
Year Make Model Submodel 2005 Toyota Tacoma 2005 Toyota Tacoma Pre Runner 2006 Toyota Tacoma 2006 Toyota Tacoma Pre Runner 2006 Toyota Tacoma Base Prerunner 2006 Toyota Tacoma SR5 Prerunner 2006 Toyota Tacoma TRD Sport Prerunner 2007 Toyota Tacoma 2007 Toyota Tacoma Pre Runner 2007 Toyota Tacoma SR5 Prerunner 2007 Toyota Tacoma TRD Sport Prerunner 2008 Toyota Tacoma 2008 Toyota Tacoma Pre Runner 2008 Toyota Tacoma SR5 Prerunner 2008 Toyota Tacoma TRD Sport Prerunner 2009 Toyota Tacoma 2009 Toyota Tacoma Pre Runner 2009 Toyota Tacoma SR5 Prerunner 2009 Toyota Tacoma TRD Sport Prerunner 2010 Toyota Tacoma 2010 Toyota Tacoma Pre Runner 2010 Toyota Tacoma TRD Sport 2011 Toyota Tacoma 2011 Toyota Tacoma Pre Runner 2011 Toyota Tacoma TRD Sport 2012 Toyota Tacoma 2012 Toyota Tacoma Pre Runner 2012 Toyota Tacoma TRD Sport 2013 Toyota Tacoma 2013 Toyota Tacoma Pre Runner 2013 Toyota Tacoma TRD Sport 2014 Toyota Tacoma 2014 Toyota Tacoma Pre Runner 2014 Toyota Tacoma TRD Sport 2015 Toyota Tacoma 2015 Toyota Tacoma Pre Runner 2015 Toyota Tacoma TRD Sport 2016 Toyota Tacoma 2017 Toyota Tacoma 2018 Toyota Tacoma 2019 Toyota Tacoma 2020 Toyota Tacoma 2021 Toyota Tacoma 2022 Toyota Tacoma 2023 Toyota Tacoma
