Toyota (4WD) Coilover Spring and Shock Assembly - Front - ICON Vehicle Dynamics - 58730C

COILOVER KIT
58730C
OEM Wheels and Tires Fitment: Yes
Recommended Aftermarket Wheels: ICON Alloys - 17x8.
5 with 4.
75” Backspace / 0mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 18x9 with 5.
00” Backspace / 0mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 20x9 with 5.
00” Backspace / 0mm Offset
Recommended Aftermarket Tires: 33" x 11.
50" (Larger tires may fit but fender trimming and modifications will be required.
)
APPLICATION NOTE #47: 700Lb/In Expedition Coil Available For Heavier Equipped Vehicles
APPLICATION NOTE #55: Shocks Are Fully Serviceable.
Coilover Heights Indicated Are For A Stock Equipped Vehicle
APPLICATION NOTE #109: 2016-2023 Tacoma Lift Range Is 0-2.
75”
APPLICATION NOTE #110: Trimming Required For Recommended Tire Size
APPLICATION NOTE #111: Bump Stop Spacer Kit 51045 Can Be Installed To Increase Preload.
25” Beyond Maximum
TECH NOTE: Will not fit 2005-2015 2WD 5-Lug Toyota Tacoma models
TECH NOTE: 2005-2015 Toyota Tacoma will have front lift height range of 0-3.
5" over stock
TECH NOTE: 2017-2023 Tacoma TRD Pro models will have front lift height range of 0-1.
25" over stock

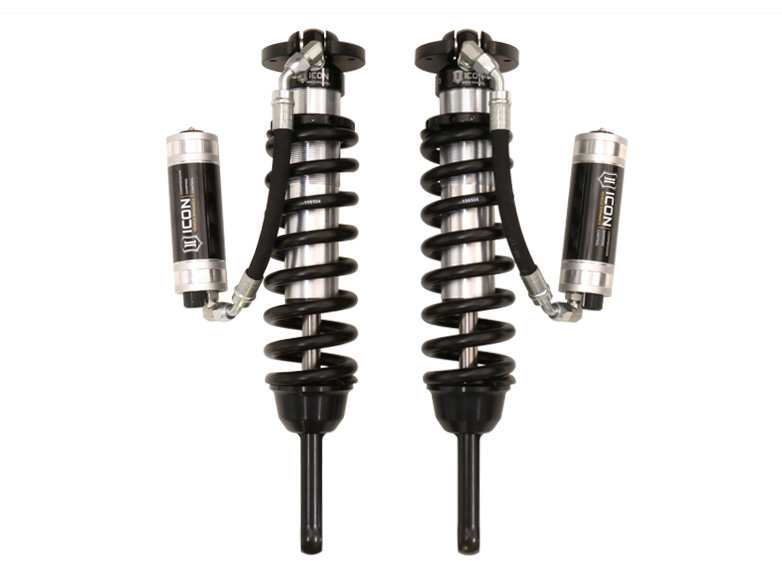

05-23 TACOMA 2.
5 VS RR CDCV COILOVER KIT
These ICON coilovers feature 2.
5 Series shocks and coil springs optimized for this application.
The shock’s larger 2.
5” body and increased piston area improves damping ability and ride characteristics across varying types of terrain.
ICON Vehicle Dynamics V.
S.
2.
5 Series remote reservoir front coilover shocks are an incredible upgrade for the front end of the 2005-2023 Toyota Tacoma.
These adjustable coilovers allow up to 0-3.
5” of lift height adjustability on 2005-2015 models or 0-2.
75” of lift height adjustability on 2016-2023 models, allowing the use of larger, more aggressive wheel and tire combinations.
ICON’s Vehicle-specific shock length and valving along with the larger 2.
5” shock body and increased piston area over stock components yield the maximum travel possible along with superior ride quality and suspension performance both on- and off-road.
Remote reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade.
ICON's exclusive Compression Damping Control Valves are included for precisely dialing in your suspension performance.
CDCV controls fluid flow under compression, allowing you to achieve the perfect tune whether driving on the street, slow-crawling through the rocks or mobbing across the desert at full throttle.
When paired with ICON 2.
0 or 2.
5 Aluminum Series rear shock absorbers vehicle control will be balanced front to rear, resulting in the best overall driving experience for your Toyota Tacoma.
Height-adjustable coilovers offer 0-3.
5" or 0-2.
75" of lift height adjustment depending on year model
Vehicle specific tuned for superior shock damping and control
Kit Includes Sway bar relocation brackets
Kit also Includes Reservoir Mounting Brackets for Optimum Tire Clearance
CAD-plated threaded body
Billet aluminum upper mount
5/8" PTFE-lined spherical bearings
Completely re-buildable
Hose Length Optimized for Increased Fluid Transfer
External Reservoirs Ensures Maximum Cooling
ICON CDCV equipped for 10 settings of external compression damping adjustment
ICON engineered coil springs
ICON 2005-2023 Toyota Tacoma 2.
5 VS Remote Reservoir w/ CDCV Coilover Kit, 58730C
ICON 2005-2023 Toyota Tacoma 2.
5 VS Remote Reservoir w/ CDCV Coilover Kit
ICON 05-23 TACOMA 2.
5 VS RR CDCV COILOVER KIT.

Detailed Fitment Results
Year Make Model Submodel 2005 Toyota Tacoma Pre Runner 2005 Toyota Tacoma Base 2005 Toyota Hilux 2006 Toyota Tacoma Pre Runner 2006 Toyota Tacoma Base 2006 Toyota Tacoma SR5 Prerunner 2006 Toyota Tacoma TRD Sport Prerunner 2006 Toyota Tacoma Base Prerunner 2006 Toyota Hilux 2007 Toyota Tacoma Pre Runner 2007 Toyota Tacoma Base 2007 Toyota Tacoma SR5 Prerunner 2007 Toyota Tacoma TRD Sport Prerunner 2007 Toyota Hilux 2008 Toyota Tacoma Pre Runner 2008 Toyota Tacoma Base 2008 Toyota Tacoma SR5 Prerunner 2008 Toyota Tacoma TRD Sport Prerunner 2008 Toyota Hilux 2009 Toyota Tacoma Pre Runner 2009 Toyota Tacoma Base 2009 Toyota Tacoma SR5 Prerunner 2009 Toyota Tacoma TRD Sport Prerunner 2009 Toyota Hilux 2010 Toyota Tacoma Pre Runner 2010 Toyota Tacoma Base 2010 Toyota Tacoma TRD Sport 2010 Toyota Hilux 2011 Toyota Tacoma Pre Runner 2011 Toyota Tacoma Base 2011 Toyota Tacoma TRD Sport 2011 Toyota Hilux 2012 Toyota Tacoma Pre Runner 2012 Toyota Tacoma Base 2012 Toyota Tacoma TRD Sport 2012 Toyota Hilux 2013 Toyota Tacoma Pre Runner 2013 Toyota Tacoma Base 2013 Toyota Tacoma TRD Sport 2013 Toyota Hilux 2014 Toyota Tacoma Pre Runner 2014 Toyota Tacoma Base 2014 Toyota Tacoma TRD Sport 2014 Toyota Hilux 2015 Toyota Tacoma Pre Runner 2015 Toyota Tacoma Base 2015 Toyota Tacoma TRD Sport 2015 Toyota Tacoma TRD Pro 2015 Toyota Hilux 2016 Toyota Tacoma SR5 2016 Toyota Tacoma Edicion Especial 2016 Toyota Tacoma SR 2016 Toyota Tacoma Limited 2016 Toyota Tacoma TRD Sport 2016 Toyota Tacoma TRD Off-Road 2016 Toyota Hilux 2017 Toyota Tacoma SR5 2017 Toyota Tacoma Edicion Especial 2017 Toyota Tacoma SR 2017 Toyota Tacoma Limited 2017 Toyota Tacoma TRD Sport 2017 Toyota Tacoma TRD Off-Road 2017 Toyota Tacoma Sport 2017 Toyota Tacoma TRD Pro 2017 Toyota Hilux 2018 Toyota Tacoma SR5 2018 Toyota Tacoma Edicion Especial 2018 Toyota Tacoma SR 2018 Toyota Tacoma Limited 2018 Toyota Tacoma TRD Sport 2018 Toyota Tacoma TRD Off-Road 2018 Toyota Tacoma Sport 2018 Toyota Tacoma TRD Pro 2018 Toyota Hilux 2019 Toyota Tacoma SR5 2019 Toyota Tacoma Edicion Especial 2019 Toyota Tacoma SR 2019 Toyota Tacoma Limited 2019 Toyota Tacoma TRD Sport 2019 Toyota Tacoma TRD Off-Road 2019 Toyota Tacoma Sport 2019 Toyota Tacoma TRD Pro 2019 Toyota Hilux 2020 Toyota Tacoma SR5 2020 Toyota Tacoma Edicion Especial 2020 Toyota Tacoma SR 2020 Toyota Tacoma Limited 2020 Toyota Tacoma TRD Sport 2020 Toyota Tacoma TRD Off-…
