96-02 Toyota 4Runner Coilover Spring and Shock Assembly - ICON Vehicle Dynamics - 58716

COILOVER KIT
58716
OEM Wheels and Tires Fitment: Yes
Recommended Aftermarket Wheels: ICON Alloys - 17x8.
5" w/ 4.
75” Backspace / 0mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.
00” Backspace / 0mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.
00” Backspace / 0mm Offset
Recommended Aftermarket Tires: 33" x 11.
25" (Larger tires may fit but fender trimming and modifications will be required.
)
APPLICATION NOTE #18: These systems are to be used with aftermarket upper control arms only
APPLICATION NOTE #35: Remote reservoir mounting brackets may interfere with aftermarket bumper mounts/windshield washer bottles
APPLICATION NOTE #47: 700Lb/In Expedition Coil available for heavier equipped vehicles
APPLICATION NOTE #55: Shocks are fully serviceable.
Coilover heights indicated are for a stock equipped vehicle
APPLICATION NOTE #111: Bump stop spacer kit available that can be installed to increase threads showing beyond max recommendation
96-02 4RUNNER 2.
5 VS EXT TRAV RR COILOVER KIT

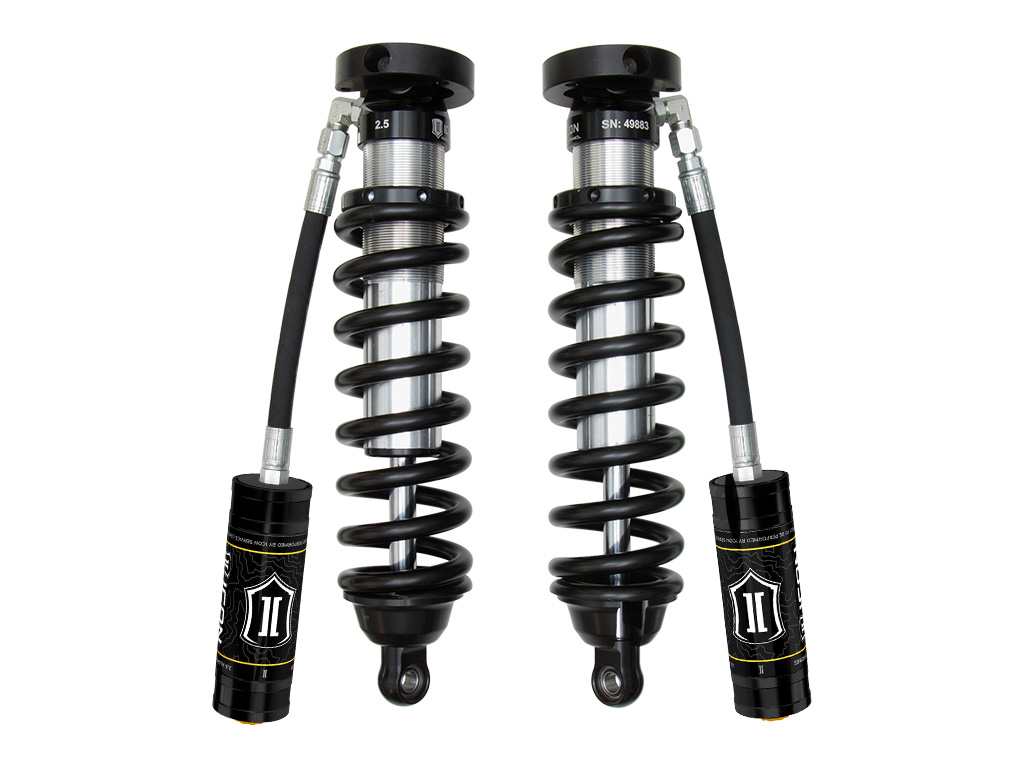

These ICON coilovers feature 2.
5 Series shocks and coil springs optimized for this application.
The shock’s larger 2.
5” body and increased piston area improves damping ability and ride characteristics across varying types of terrain.
ICON Vehicle Dynamics V.
S.
Series 2.
5” remote reservoir coilover shocks are an incredible upgrade for the front end of the 1996-2002 Toyota 4Runner.
ICON’s Vehicle-specific valving provides a sport tuned feel on and off-road while offering 0-3” of lift height adjustability for use of larger, more aggressive wheel and tire combinations.
The larger 2.
5” shock body and increased piston area over stock components provides improved damping ability and outstanding ride characteristics across varying types of terrain.
Remote reservoirs ensure optimum performance by increasing the duration of consistent damping regardless of situation, keeping the shocks at a cooler operating temperature during heavy use.
When paired with ICON rear 2.
0 Aluminum Series or 2.
5" Series shocks, vehicle control will be balanced front to rear resulting in the best overall driving experience for your 4Runner.
Increased wheel travel over ICON standard travel coilovers
Vehicle specific tuned front shocks for superior shock damping and control
External reservoir to attain cooler operating temperatures during extended off-road use
Improved ride quality over stock both on and off-road
Height-adjustable coilovers offer 0-3" of lift height adjustment
ICON engineered coil springs
6061 Aircraft grade aluminum CNC machined components
Corrosion resistant CAD plated shock body with 7/8" induction hardened, chrome plated shaft
FK Rod End bearings for extended longevity and minimal deflection
100% Bolt-on - no cutting or welding necessary for installation
ICON 1996-2002 Toyota 4Runner, 0-3" Lift, Front, V.
S.
2.
5 Series Coilover Kit, Extended Travel, Remote Reservoir, 58716
ICON 1996-2002 Toyota 4Runner, 0-3" Lift, Front, V.
S.
2.
5 Series Coilover Kit, Extended Travel, Remote Reservoir w/ CDCV
ICON 96-02 4RUNNER 2.
5 VS EXT TRAV RR COILOVER KIT.

Detailed Fitment Results
Year Make Model 1996 Toyota 4Runner 1997 Toyota 4Runner 1998 Toyota 4Runner 1999 Toyota 4Runner 2000 Toyota 4Runner 2001 Toyota 4Runner 2002 Toyota 4Runner
