95-04 Toyota Tacoma (4WD) Coilover Spring and Shock Assembly - ICON Vehicle Dynamics - 58715

COILOVER KIT
58715
OEM Wheels and Tires Fitment: Yes
Recommended Aftermarket Wheels: ICON Alloys - 17x8.
5" w/ 4.
75” Backspace / 0mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.
00” Backspace / 0mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.
00” Backspace / 0mm Offset
Recommended Aftermarket Tires: 33" x 11.
50" (Larger tires may fit but fender trimming and modifications will be required.
)
APPLICATION NOTE #18: These systems are to be used with aftermarket upper control arms only
APPLICATION NOTE #47: 700Lb/In Expedition Coil available for heavier equipped vehicles
APPLICATION NOTE #55: Shocks are fully serviceable.
Coilover heights indicated are for a stock equipped vehicle
APPLICATION NOTE #111: Bump stop spacer kit available that can be installed to increase threads showing beyond max recommendation
APPLICATION NOTE #185: Will not fit 2WD Tacoma with 5 wheel lug studs

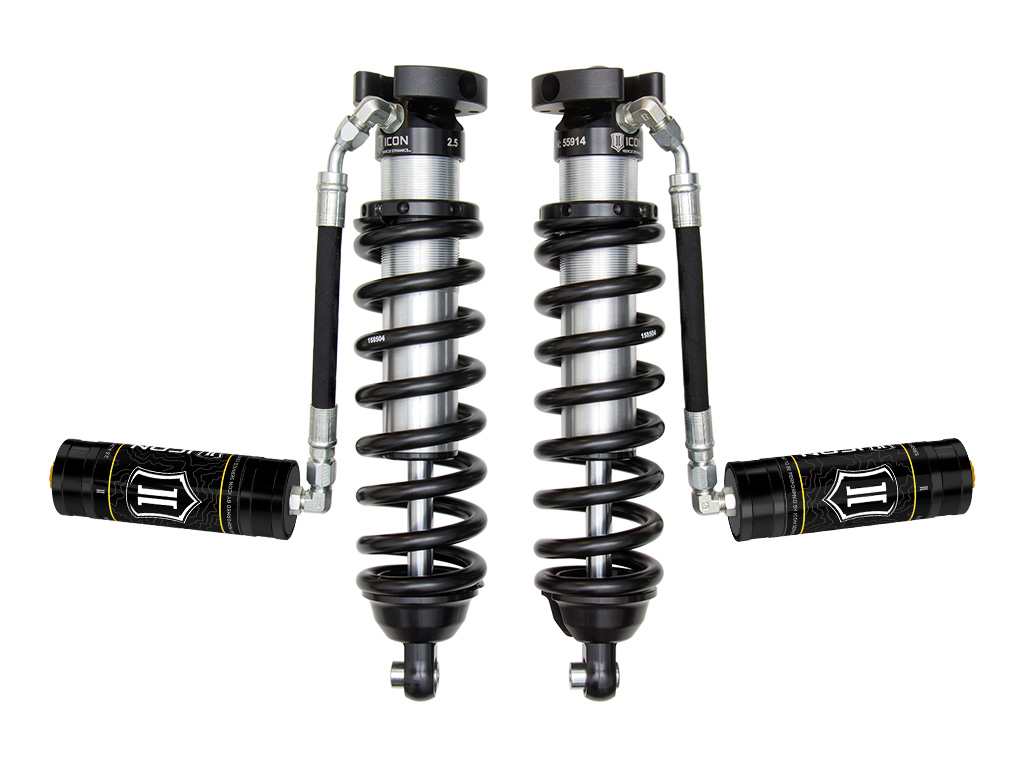

96-04 TACOMA EXT TRAVEL 2.
5 VS RR COILOVER KIT
These ICON coilovers feature 2.
5 Series shocks and coil springs optimized for this application.
The shock’s larger 2.
5” body and increased piston area improves damping ability and ride characteristics across varying types of terrain.
ICON Vehicle Dynamics V.
S.
Series 2.
5” remote reservoir coilover shocks are an incredible upgrade for the front end of the 1996-2004 Toyota Tacoma 4WD/Prerunner.
ICON’s Vehicle-specific valving provides a sport tuned feel on and off-road while offering 0-3” of lift height adjustability for use of larger, more aggressive wheel and tire combinations.
The larger 2.
5” shock body and increased piston area over stock components provides improved damping ability and outstanding ride characteristics across varying types of terrain.
Their extended travel length allows for more wheel travel but also requires the installation of aftermarket front upper control arms.
Remote reservoirs ensure optimum performance by increasing the duration of consistent damping regardless of situation, keeping the shocks at a cooler operating temperature during heavy use.
When paired with ICON rear 2.
0 Aluminum Series rear shocks, vehicle control will be balanced front to rear resulting in the best overall driving experience for your Tacoma.
Increased wheel travel over stock
Vehicle specific tuned front shocks for superior shock damping and control
External reservoir to attain cooler operating temperatures during extended off-road use
Improved ride quality over stock on and off-road
Height-adjustable coilovers offer 0-3" of lift height adjustment
ICON engineered coil springs
6061 Aircraft grade aluminum CNC machined components
Corrosion resistant CAD plated shock body with 7/8" induction hardened, chrome plated shaft
FK Rod End bearings for extended longevity and minimal deflection
100% Bolt-on - no cutting or welding necessary for installation
ICON 1996-2004 Toyota Tacoma, 0-3" Lift, Front,V.
S.
2.
5 Series Coilover Kit, Extended Travel, Remote Reservoir, 58715
ICON 1996-2004 Toyota Tacoma, 0-3" Lift, Front,V.
S.
2.
5 Series Coilover Kit, Extended Travel, Remote Reservoir
ICON 96-04 TACOMA EXT TRAVEL 2.
5 VS RR COILOVER KIT.

Detailed Fitment Results
Year Make Model Submodel 1995 Toyota Tacoma Base 1995 Toyota Tacoma DLX 1995 Toyota Tacoma SR5 1996 Toyota Tacoma Base 1996 Toyota Tacoma DLX 1996 Toyota Tacoma SR5 1997 Toyota Tacoma Base 1997 Toyota Tacoma DLX 1997 Toyota Tacoma SR5 1998 Toyota Tacoma Base 1998 Toyota Tacoma DLX 1998 Toyota Tacoma SR5 1998 Toyota Tacoma Pre Runner 1998 Toyota Tacoma Limited 1999 Toyota Tacoma Base 1999 Toyota Tacoma DLX 1999 Toyota Tacoma SR5 1999 Toyota Tacoma Pre Runner 1999 Toyota Tacoma Limited 2000 Toyota Tacoma Base 2000 Toyota Tacoma DLX 2000 Toyota Tacoma SR5 2000 Toyota Tacoma Pre Runner 2000 Toyota Tacoma Limited 2001 Toyota Tacoma Base 2001 Toyota Tacoma DLX 2001 Toyota Tacoma Pre Runner 2002 Toyota Tacoma Base 2002 Toyota Tacoma DLX 2002 Toyota Tacoma Pre Runner 2003 Toyota Tacoma Base 2003 Toyota Tacoma DLX 2003 Toyota Tacoma Pre Runner 2004 Toyota Tacoma Base 2004 Toyota Tacoma Pre Runner
