2024 Toyota Land Cruiser Coilover Spring and Shock Assembly - ICON Vehicle Dynamics - 58691

COILOVER KIT
58691
OEM Wheels and Tires Fitment: Yes
Recommended Aftermarket Wheels: 17x8.
5 with 6.
32” Backspace / 40mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 18x9 with 6.
6” Backspace / 40mm Offset
Recommended Aftermarket Tires: 33" x 11.
50" (Larger tires may fit but fender trimming and modifications will be required.
)
APPLICATION NOTE #55: Shocks are fully serviceable.
Lift heights indicated are for a stock equipped vehicle.
APPLICATION NOTE #85: Advertised lift height ranges are for a stock equipped vehicle.
Increasing weight of vehicle due to accessories will alter lift range.
APPLICATION NOTE #169: 4WD models require front differential drop part # 55160
TECH NOTE: ICON Delta Joint Pro front upper control arms are recommended to maintain proper wheel alignment above 2" of lift
24 LAND CRUISER 250 SERIES FRONT 2.
5 VS IR COILOVER KIT
ICON 2.

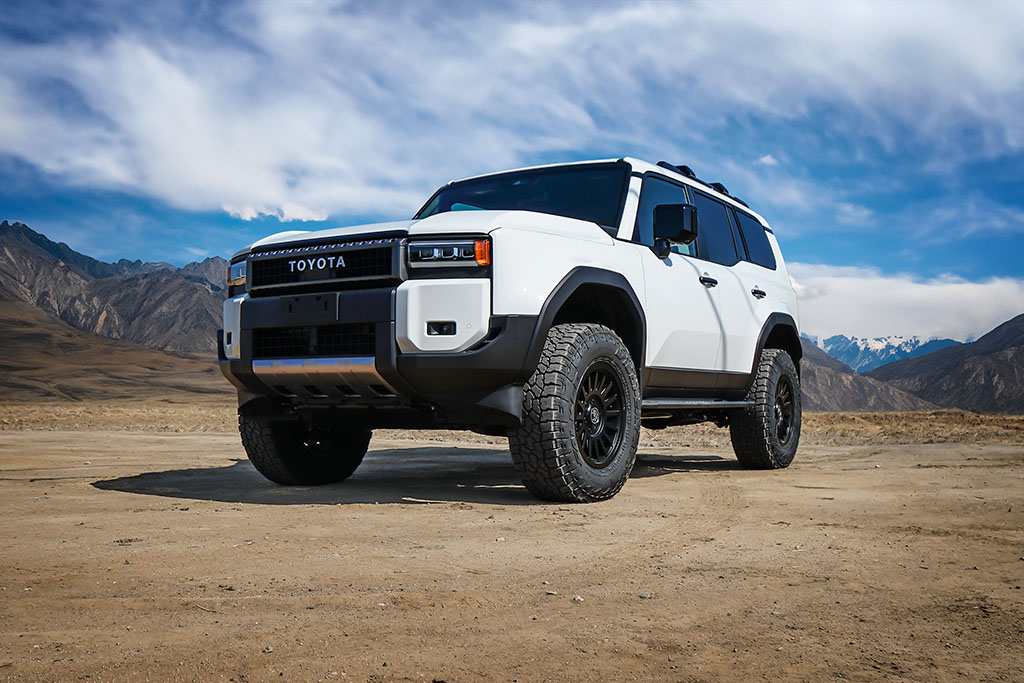

5 Series front coilover shocks are an incredible upgrade for the 2024 Toyota Land Cruiser.
These adjustable coilovers allow up 1.
25-3” of lift with vehicle-specific shock length and valving for superior ride quality and performance.
ICON Vehicle Dynamics V.
S.
2.
5 Series internal reservoir front coilover shocks are an incredible upgrade for the front end of the 2024 Toyota Land Cruiser 250 Series.
These adjustable coilovers allow up 1.
25-3” of lift height adjustability, allowing the use of larger, more aggressive wheel and tire combinations.
ICON’s Vehicle-specific shock length and valving, their large 2.
5” shock body with increased piston surface area over stock components, and their pairing with an ICON front differential drop, yield the maximum travel possible along with superior ride quality and suspension performance both on- and off-road.
When paired with ICON 2.
0 or 2.
5 Aluminum Series rear shock absorbers vehicle control will be balanced front to rear, resulting in the best overall driving experience for your Toyota Land Cruiser 250 Series.
Vehicle specific tuned for superior shock damping, vehicle control, and improved ride quality over stock
Vehicle specific shock length and pairing with front differential drop yields maximum wheel travel
Height-adjustable coilovers offer 1.
25-3" of lift height adjustment over stock
2.
5" diameter shock bodies with internal reservoirs for consistent performance
ICON engineered coil springs
6061 Aircraft grade aluminum CNC machined components
Corrosion resistant CAD plated shock bodies with 7/8" diameter shafts
FK rod end bearings for extended longevity and minimal deflection
Fully rebuildable and re-tunable
ICON 2024 Toyota Land Cruiser 250 Series, 1.
25-3" Lift, Front, 2.
5 Series Coilover Kit, Internal Reservoir, 58691
ICON 2024 Toyota Land Cruiser 250 Series, 1.
25-3" Lift, Front, 2.
5 Series Coilover Kit, Internal Reservoir
ICON 24 LAND CRUISER 250 SERIES FRONT 2.
5 VS IR COILOVER KIT.

Detailed Fitment Results
Year Make Model Submodel 2024 Toyota Land Cruiser 1958 2024 Toyota Land Cruiser Base 2024 Toyota Land Cruiser First Edition
