24-25 Toyota Tacoma (4WD/RWD) Coilover Spring and Shock Assembly - ICON Vehicle Dynamics - 58680

COILOVER KIT
58680
OEM Wheels and Tires Fitment: Yes
Recommended Aftermarket Wheels: ICON Alloys - 17x8.
5 with 5.
75” Backspace / 25mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 18x9 with 6.
00” Backspace / 25mm Offset
Recommended Aftermarket Tires: 33" x 11.
50" (Larger tires may fit but fender trimming and modifications will be required.
)
APPLICATION NOTE #55: Shocks are fully serviceable.
Lift heights indicated are for a stock equipped vehicle.
APPLICATION NOTE #85: Advertised lift height ranges are for a stock equipped vehicle.
Increasing weight of vehicle due to accessories will alter lift range.
APPLICATION NOTE #153: Not compatible with Adaptive Variable Suspension (AVS) equipped vehicles
APPLICATION NOTE #155: Requires recalibration of Advanced Driver Assistance Systems (ADAS) after install
APPLICATION NOTE #169: 4WD/AWD models require front differential drop part # 55160
TECH NOTE: ICON Delta Joint Pro front upper control arms are recommended to maintain proper wheel alignment above 2" of lift
24-25 TACOMA 2.
5 VS IR COILOVER KIT
ICON 2.

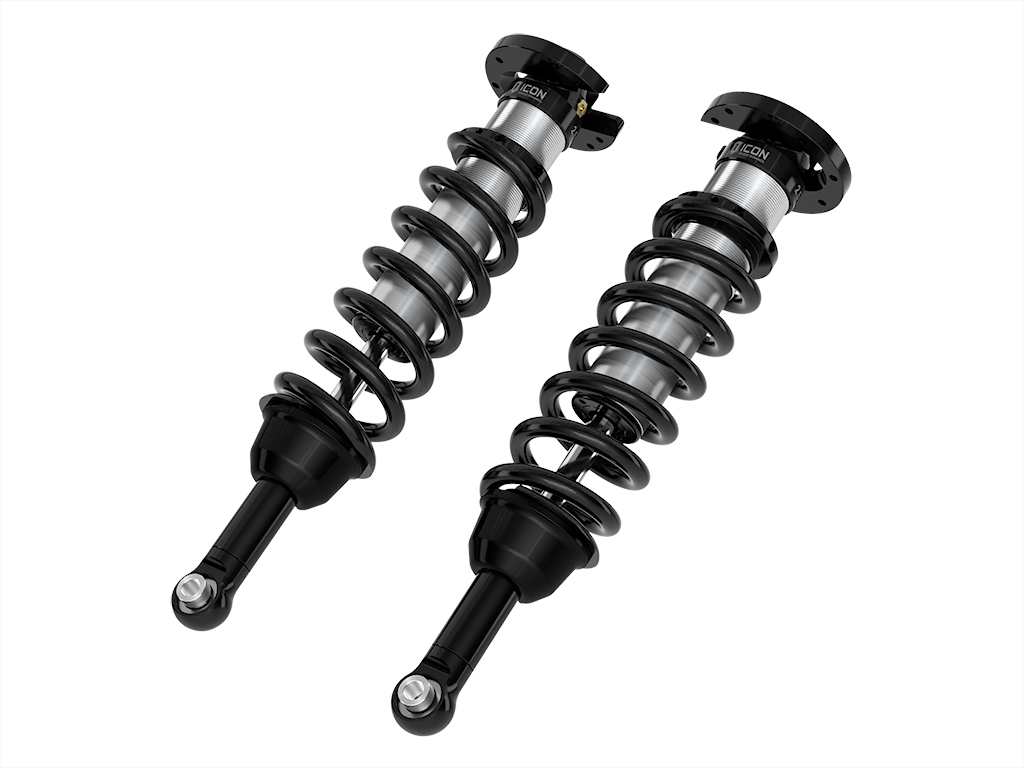

5 Series front coilover shocks are an incredible upgrade for the 4th gen Toyota Tacoma.
These adjustable coilovers allow up 1.
25-3” of lift with vehicle-specific shock length and valving for superior ride quality and performance.
ICON Vehicle Dynamics V.
S.
2.
5 Series internal reservoir front coilover shocks are an incredible upgrade for the front end of the 2024-2025 Toyota Tacoma.
These adjustable coilovers allow up 1.
25-3” of lift height adjustability, allowing the use of larger, more aggressive wheel and tire combinations.
ICON’s Vehicle-specific shock length and valving, their large 2.
5” shock body with increased piston surface area over stock components, and their pairing with an ICON front differential drop (4WD only), yield the maximum travel possible along with superior ride quality and suspension performance both on- and off-road.
When paired with ICON 2.
0 or 2.
5 Aluminum Series rear shock absorbers vehicle control will be balanced front to rear, resulting in the best overall driving experience for your Toyota Tacoma.
Vehicle specific tuned for superior shock damping, vehicle control, and improved ride quality over stock
Vehicle specific shock length and pairing with front differential drop yields maximum wheel travel
Height-adjustable coilovers offer 1.
25-3" of lift height adjustment over stock
2.
5" diameter shock bodies with internal reservoirs for consistent performance
ICON engineered coil springs
6061 Aircraft grade aluminum CNC machined components
Corrosion resistant CAD plated shock bodies with 7/8" diameter shafts
FK rod end bearings for extended longevity and minimal deflection
Fully rebuildable and re-tunable
ICON 2024-2025 Toyota Tacoma, V.
S.
2.
5 Series Coilover Kit, Internal Reservoir, Pair, 58680
ICON 2024-2025 Toyota Tacoma, V.
S.
2.
5 Series Coilover Kit, Internal Reservoir, Pair
ICON 24-25 TACOMA 2.
5 VS IR COILOVER KIT.

Detailed Fitment Results
Year Make Model Submodel 2024 Toyota Tacoma SR 2024 Toyota Tacoma SR5 2024 Toyota Tacoma TRD PreRunner 2024 Toyota Tacoma TRD Sport 2024 Toyota Tacoma TRD Off-Road 2024 Toyota Tacoma Limited 2024 Toyota Tacoma HEV 2024 Toyota Tacoma Sport 2025 Toyota Tacoma SR 2025 Toyota Tacoma SR5 2025 Toyota Tacoma TRD PreRunner 2025 Toyota Tacoma TRD Sport 2025 Toyota Tacoma TRD Off-Road 2025 Toyota Tacoma TRD Sport Premium
