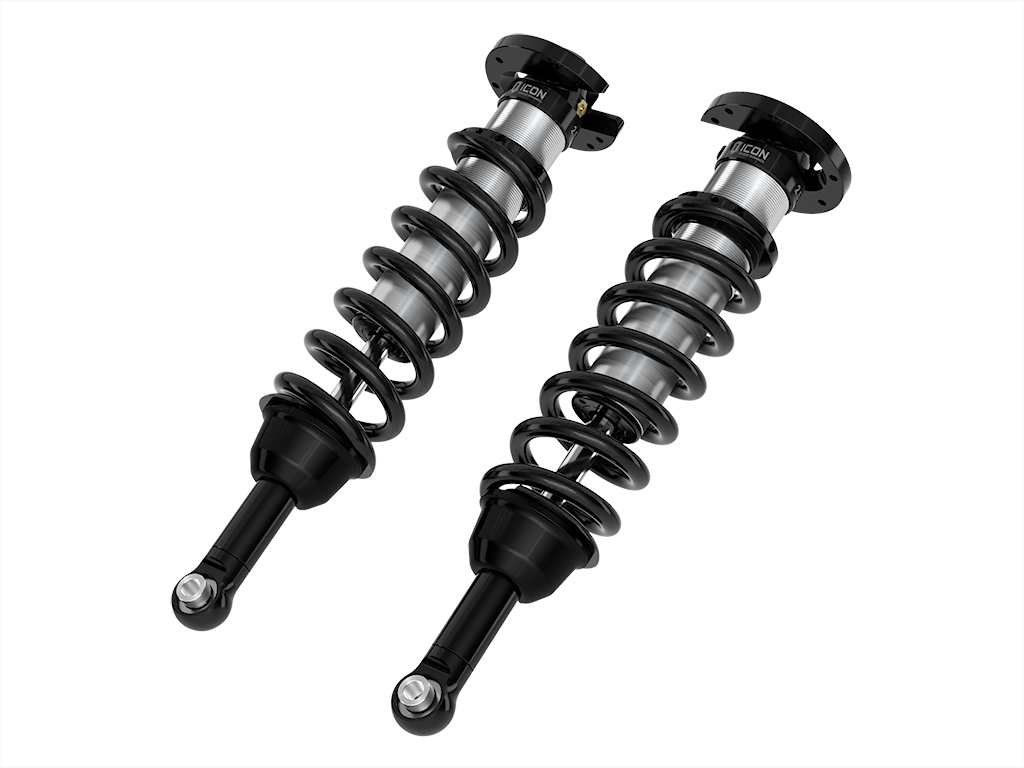

23-25 Toyota Sequoia TRD Pro Coilover Spring and Shock Assembly - ICON Vehicle Dynamics - 58673

COILOVER KIT
58673
OEM Wheels and Tires Fitment: Yes
Recommended Aftermarket Wheels: ICON Alloys - 17x8.
5 with 5.
75” Backspace / 25mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 18x9 with 6.
00” Backspace / 25mm Offset
Recommended Aftermarket Tires: 35" x 12.
50" (Minor fender trimming and modifications may be required)
APPLICATION NOTE #55: Shocks are fully serviceable.
Lift heights indicated are for a stock equipped vehicle.
APPLICATION NOTE #85: Advertised lift height ranges are for a stock equipped vehicle.
Increasing weight of vehicle due to accessories will alter lift range.
APPLICATION NOTE #155: Requires recalibration of Advanced Driver Assistance Systems (ADAS) after install
APPLICATION NOTE #189: For Sequoia TRD Pro ICON Diff Drop (part# 55156) is recommended but not required.
If installing ICON Diff Drop, ICON Skid Plate Spacer Kit (part# 55164) is also required.
APPLICATION NOTE #190: Designed for use with stock billet TRD front upper control arms
23-25 SEQUOIA TRD PRO 2.
5 VS IR COILOVER KIT
ICON’s Vehicle-specific shock length and valving along with the larger 2.
5” shock body and increased piston area over stock yield the maximum travel possible along with superior ride quality and suspension performance both on- and off-road.
ICON Vehicle Dynamics V.
S.
2.
5 Series internal reservoir front coilover shocks are an incredible upgrade for the front end of the 2023-2025 Toyota Sequoia TRD Pro.
These adjustable coilovers allow up to 1-2.
5” of lift height adjustability on Sequoia TRD Pro, allowing the use of larger, more aggressive wheel and tire combinations.
ICON’s Vehicle-specific shock length and valving along with the larger 2.
5” shock body and increased piston area over stock components yield the maximum travel possible along with superior ride quality and suspension performance both on- and off-road.
Additionally, their vehicle specific shock length allows the stock, billet TRD front upper control arms to be utilized with the new suspension system, eliminating the requirement for ICON front UCAs.
When paired with ICON 2.
0 or 2.
5 Aluminum Series rear shock absorbers vehicle control will be balanced front to rear, resulting in the best overall driving experience for your Toyota Sequoia TRD Pro.
Increased wheel travel and improved ride quality over stock
Vehicle specific tuned for superior shock damping and control
Specifically designed shock lengths for compatibility with Sequoia TRD Pro's stock front upper control arms
Adjustable ride height offers 1-2.
5" of front lift over stock on Sequoia TRD Pro
ICON engineered coil springs
6061 Aircraft grade aluminum CNC machined components
Corrosion resistant CAD plated shock bodies with 7/8" diameter shafts
FK rod end bearings for extended longevity and minimal deflection
Fully rebuildable and re-tunable
ICON 2023-2025 Sequoia TRD Pro, 1-2.
5" Lift, Front, V.
S.
2.
5 Series Front Coilover Kit, Internal Reservoir, Pair, 58673
ICON 2023-2025 Sequoia TRD Pro, 1-2.
5" Lift, Front, V.
S.
2.
5 Series Front Coilover Kit, Internal Reservoir, Pair
ICON 23-25 SEQUOIA TRD PRO 2.
5 VS IR COILOVER KIT.

Detailed Fitment Results
Year Make Model Submodel 2023 Toyota Sequoia TRD Pro 2024 Toyota Sequoia TRD Pro 2025 Toyota Sequoia TRD Pro
