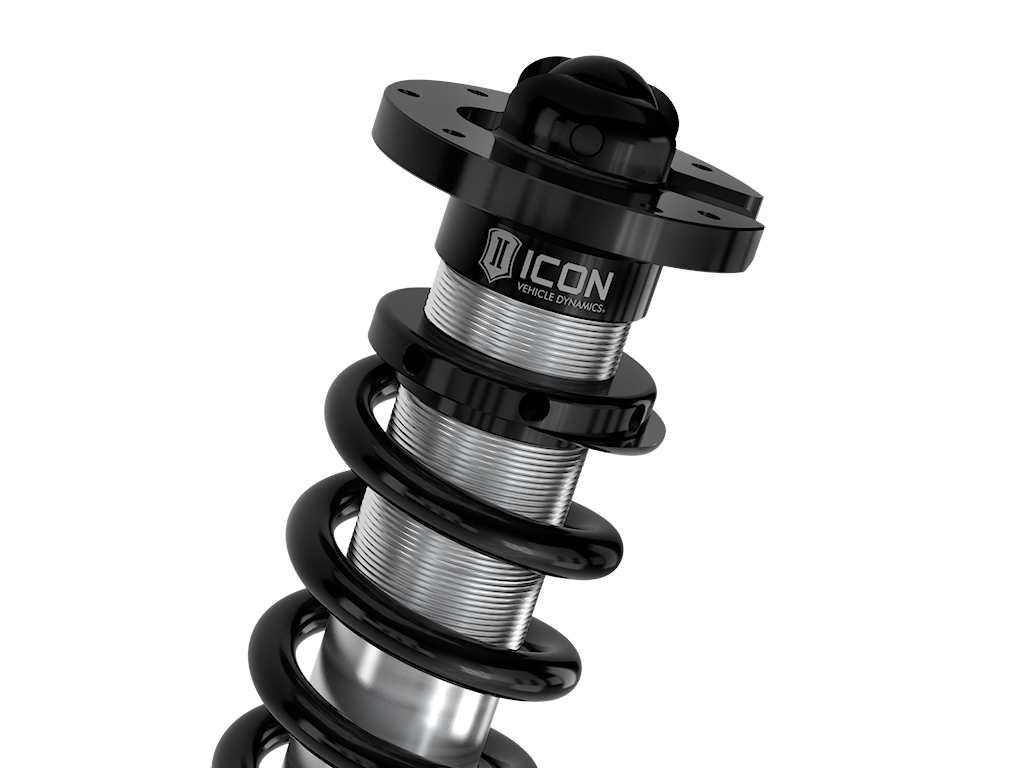

22-23 Toyota Land Cruiser Coilover Spring and Shock Assembly - Front - ICON Vehicle Dynamics - 58661

COILOVER KIT
58661
OEM Wheels and Tires Fitment: Yes
Recommended Aftermarket Wheels: ICON Alloys - 17x8.
5" w/ 5.
75” Backspace / 25mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 6” Backspace / 25mm Offset
Recommended Aftermarket Tires: 35" x 12.
50" (Minor fender trimming and modifications may be required)
APPLICATION NOTE #55: Shocks Are Fully Serviceable.
Lift Heights Indicated Are For A Stock Equipped Vehicle.
APPLICATION NOTE #85: Advertised Lift Height Ranges Are For A Stock Equipped Vehicle.
Increasing Weight Of Vehicle Due To Accessories Will Alter Lift Range.
APPLICATION NOTE #142: Not compatible with vehicles equipped with Load-Leveling Rear Height Control Air Suspension.
22-23 LC 300 2.
5 VS IR COILOVER KIT
ICON’s Vehicle-specific shock length and valving along with the larger 2.
5” shock body and increased piston area over stock yield the maximum travel possible along with superior ride quality and suspension performance both on- and off-road.
ICON Vehicle Dynamics V.
S.
2.
5 Series internal reservoir front coilover shocks are an incredible upgrade for the front end of the 2022-2023 Toyota Land Cruiser 300 Series.
These adjustable coilovers allow up to 1-3” of lift height adjustability, allowing the use of larger, more aggressive wheel and tire combinations.
ICON’s Vehicle-specific shock length and valving along with the larger 2.
5” shock body and increased piston area over stock components yield the maximum travel possible along with superior ride quality and suspension performance both on- and off-road.
When paired with ICON 2.
5 Aluminum Series rear shocks vehicle control will be balanced front to rear, resulting in the best overall driving experience for your Toyota Land Cruiser 300 Series.
Increased wheel travel and improved ride quality over stock
Vehicle specific tuned for superior shock damping and control
Adjustable ride height offers 1-3" of front lift over stock
ICON engineered coil springs
6061 Aircraft grade aluminum CNC machined components
Corrosion resistant CAD plated shock bodies with 7/8" diameter shafts
FK rod end bearings for extended longevity and minimal deflection
Fully rebuildable and re-tunable
2022-2023 Toyota Land Cruiser 300 Series, 2.
5 VS Internal Reservoir Coilover Kit, Front, 58661
2022-2023 Toyota Land Cruiser 300 Series, 2.
5 VS Internal Reservoir Coilover Kit, Front
ICON 22-23 LC 300 2.
5 VS IR COILOVER KIT.

Detailed Fitment Results
Year Make Model Fitment Notes 2022 Toyota Land Cruiser Recommended Aftermarket Wheel Size: 17x8.5 inch with 5.75” Backspace / 25mm Offset 2023 Toyota Land Cruiser Recommended Aftermarket Wheel Size: 17x8.5 inch with 5.75” Backspace / 25mm Offset
