07-21 Toyota Tundra Coilover Spring and Shock Assembly - Front - ICON Vehicle Dynamics - 58655

EXP COILOVER
07-21 TUNDRA EXP COILOVER
OEM Wheels and Tires Fitment: Yes
Recommended Aftermarket Wheels: ICON Alloys - 17x8.
5 with 5.
75” Backspace / 25mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 18x9 with 6.
00” Backspace / 25mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 20x9 with 5.
625” Backspace / 16mm Offset
Recommended Aftermarket Tires: 35" x 12.
50" (Minor fender trimming may be required)
APPLICATION NOTE #55: Shocks Are Fully Serviceable.
Lift Heights Indicated Are For A Stock Equipped Vehicle.
APPLICATION NOTE #110: Trimming Required For Recommended Tire Size
APPLICATION NOTE #144: Not Compatible With Trd Pro
07-21 TUNDRA FRONT 2.
5 EXP COILOVER
2007-2021 TOYOTA TUNDRA FRONT 2.
5 EXP SERIES COILOVER

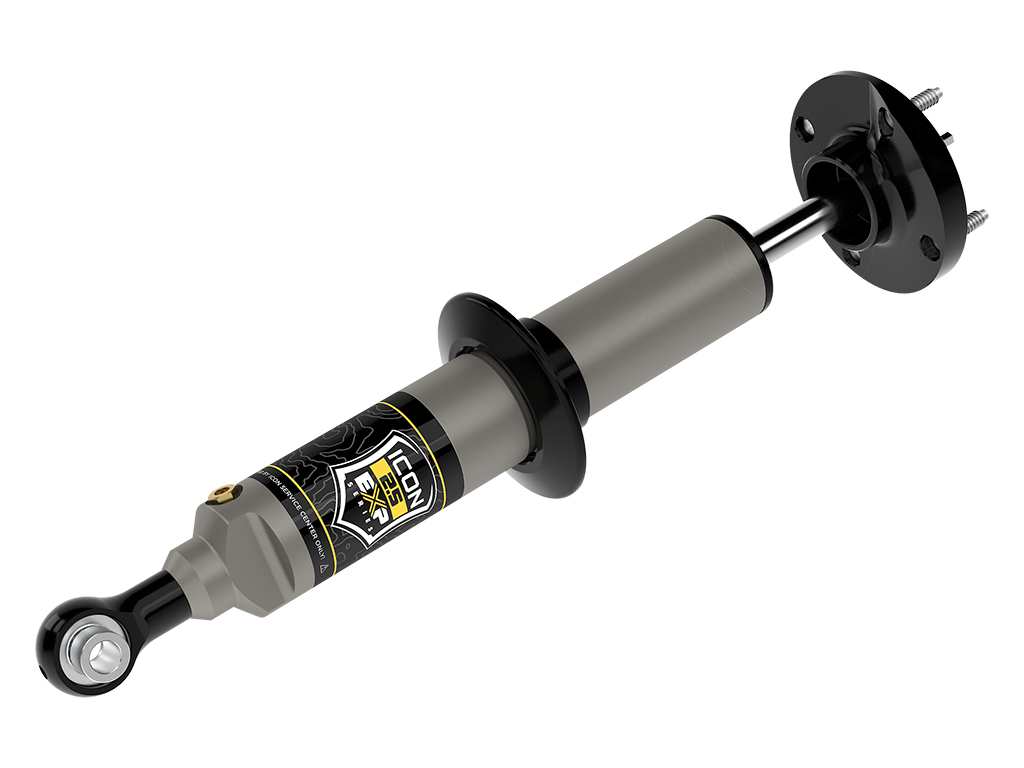

EXP Series is based on ICON’s proven 2.
5-inch diameter Aluminum Series shock absorber, featuring a one-piece impact-extruded aluminum shock body.
Hard anodizing provides a great-looking, consistent finish with superior resistance to abrasion and corrosion.
The massive 7/8-inch diameter shaft is induction hardened and chrome plated.
2007-2021 Toyota Tundra EXP shocks mount in a shaft-up orientation and include the upper shock mount and spring seat.
The 6061-billet aluminum coil spring seat is CNC machined to fit the Tundra's OE coil springs.
A series of snap-ring grooves machined into the shock body provide easily-selectable front-end ride height adjustment from 0" to 2.
25” of lift over stock.
EXP Series shocks utilize a one-piece digressive piston design and are custom tuned for the Tundra in conjunction with their stock front coil springs to maximize damping performance and provide unsurpassed ride quality, on and off-road.
The increased piston size and shock oil volume provided by the 2.
5-inch diameter aluminum body also provide superior heat dissipation compared to the smaller, steel bodied OE shocks, resulting in longer-lasting shock performance over prolonged use at higher speeds and through rougher terrain.
For those who would like to further tune their suspension, EXP shocks are fully re-valvable (and rebuildable) by any qualified shock technician, with parts available from ICON.
Vehicle specific design for 2007-2021 Toyota Tundra
Vehicle specific tuned for superior shock damping and control
2.
5 Aluminum Series Shock with Internal Reservoir
Adjustable ride heights from 0-2.
25” of front lift over stock with the use of snap ring
Utilizes factory coil and coil hardware
Inverted shaft up design featuring 7/8” diameter, induction hardened, chrome plated shaft
Impact extruded, hard anodized aluminum cylinder offer excellent corrosion resistance and consistent finish
CNC machined 6061 aluminum components with a black anodized finish
PTFE lined spherical bearing for extended longevity and minimal deflection
Fully rebuildable and re-tunable
ICON 2007-2021 Toyota Tundra Front EXP Coilover, 58655
ICON 07-21 Toyota Tundra Front EXP Coilover.

Detailed Fitment Results
Year Make Model Submodel Fitment Notes 2007 Toyota Tundra Limited Recommended Aftermarket Wheel Size: 17x8.5 inch with 5.75” Backspace / 25mm Offset 2007 Toyota Tundra SR5 Recommended Aftermarket Wheel Size: 17x8.5 inch with 5.75” Backspace / 25mm Offset 2007 Toyota Tundra Base Recommended Aftermarket Wheel Size: 17x8.5 inch with 5.75” Backspace / 25mm Offset 2008 Toyota Tundra Limited Recommended Aftermarket Wheel Size: 17x8.5 inch with 5.75” Backspace / 25mm Offset 2008 Toyota Tundra SR5 Recommended Aftermarket Wheel Size: 17x8.5 inch with 5.75” Backspace / 25mm Offset 2008 Toyota Tundra Base Recommended Aftermarket Wheel Size: 17x8.5 inch with 5.75” Backspace / 25mm Offset 2009 Toyota Tundra Limited Recommended Aftermarket Wheel Size: 17x8.5 inch with 5.75” Backspace / 25mm Offset 2009 Toyota Tundra SR5 Recommended Aftermarket Wheel Size: 17x8.5 inch with 5.75” Backspace / 25mm Offset 2009 Toyota Tundra Base Recommended Aftermarket Wheel Size: 17x8.5 inch with 5.75” Backspace / 25mm Offset 2010 Toyota Tundra Limited Recommended Aftermarket Wheel Size: 17x8.5 inch with 5.75” Backspace / 25mm Offset 2010 Toyota Tundra SR5 Recommended Aftermarket Wheel Size: 17x8.5 inch with 5.75” Backspace / 25mm Offset 2010 Toyota Tundra Base Recommended Aftermarket Wheel Size: 17x8.5 inch with 5.75” Backspace / 25mm Offset 2010 Toyota Tundra Platinum Recommended Aftermarket Wheel Size: 17x8.5 inch with 5.75” Backspace / 25mm Offset 2011 Toyota Tundra Limited Recommended Aftermarket Wheel Size: 17x8.5 inch with 5.75” Backspace / 25mm Offset 2011 Toyota Tundra SR5 Recommended Aftermarket Wheel Size: 17x8.5 inch with 5.75” Backspace / 25mm Offset 2011 Toyota Tundra Base Recommended Aftermarket Wheel Size: 17x8.5 inch with 5.75” Backspace / 25mm Offset 2012 Toyota Tundra Limited Recommended Aftermarket Wheel Size: 17x8.5 inch with 5.75” Backspace / 25mm Offset 2012 Toyota Tundra SR5 Recommended Aftermarket Wheel Size: 17x8.5 inch with 5.75” Backspace / 25mm Offset 2012 Toyota Tundra Base Recommended Aftermarket Wheel Size: 17x8.5 inch with 5.75” Backspace / 25mm Offset 2013 Toyota Tundra Limited Recommended Aftermarket Wheel Size: 17x8.5 inch with 5.75” Backspace / 25mm Offset 2013 Toyota Tundra SR5 Recommended Aftermarket Wheel Size: 17x8.5 inch with 5.75” Backspace / 25mm Offset 2013 Toyota Tundra Base Recommended Aftermarket Wheel Size: 17x8.5 inch with 5.75” Backspace / 25mm Offset 2013 Toyota Tundra Platinum Recommended Aftermarket Wheel Size: 17x8.5 inch with 5.75” Backspace / 25mm Offset 2014 Toyota Tundra Limited Recommended Aftermarket Wheel Size: 17x8.5 inch with 5.75” Backspace / 25mm Offset 2014 Toyota Tundra SR5 Recommended Aftermarket Wheel Size: 17x8.5 inch with 5.75” Backspace / 25mm Offset 2014 Toyota Tundra Platinum Recommended Aftermarket Wheel Size: 17x8.5 inch with 5.75” Backspace / 25mm Offset 2014 Toyota Tundra 1794 Edition Recommended Aftermarket Wheel Size: 17x8.5 inch with 5.75” Backspace / 25mm Offset 2014 Toyota Tundra SR Recommended Aftermarket Wheel Size: 17x8…
