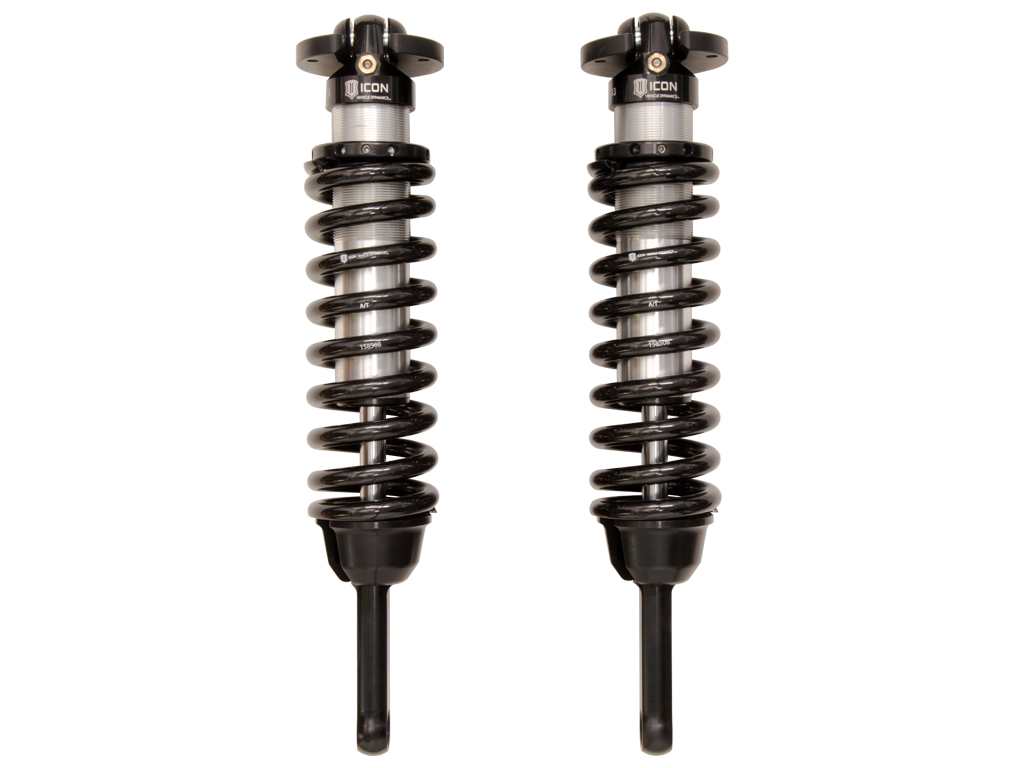

Lexus, Toyota Coilover Spring and Shock Assembly - Front - ICON Vehicle Dynamics - 58645

FJ/T4R/GX COILOVERS
58645
Factory Wheels and Tires Fitment: Yes
Recommended Aftermarket Wheels: ICON Alloys - 17x8.
5 w/ 4.
75" Backspace / 0mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 18x9 w/ 5" Backspace / 0mm Offset
Recommended Aftermarket Tires: 33" x 11.
50" (Larger Tires May Fit but Fender Trimming and Modifications will be Required)
TECH NOTE: Aftermarket front upper control arms required for installation
07-09 FJ/03-09 4RNR/03-09 GX EXT TRAVEL 2.
5 VS IR COILOVER KIT
Beyond the added ground clearance, the dual rate design of ICON springs provides a softer initial rate for superb on-road comfort and a firmer secondary rate that delivers excellent bottoming resistance and superior off-road performance.
ICON's Vehicle Specific (V.
S.
) 2.
5 Series coilover shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street.
These shocks are configured specifically for each application in both length and damping tune.
These extended length versions offer increased wheel travel but also require the installation of aftermarket upper control arms in conjunction with the coilovers.
Like all ICON shock absorbers, V.
S.
2.
5 Series shocks are 100% rebuildable and 100% revalveable.
Adjustable coilovers yield 0-3.
5" of front lift height
Increased wheel travel and vehicle specific valving provides unrivaled ride quality across a wide range of on and off-road use
Extended Travel length requires installation of aftermarket front upper control arms
Superior low speed control reduces body roll and increases on-road stability
High quality ICON-engineered coil springs are guaranteed for life against sagging or breakage
Corrosion resistant CAD plated shock body with 7/8" shaft
FK Rod End bearings provide extended longevity and minimal deflection
Fully serviceable design allows for revalves, rebuilds, and an immeasurable service life
Bolt-in design makes for an easy install into OEM shock location
ICON 2007-09 FJ/03-09 4Runner and GX470 Extended Travel 2.
5 VS Coilover Kit, 58645
ICON 2007-09 FJ/03-09 4Runner and GX470 Extended Travel 2.
5 VS Coilover Kit
ICON 07-09 FJ/03-09 4RNR/03-09 GX EXT TRAVEL 2.
5 VS IR COILOVER KIT.

Detailed Fitment Results
Year Make Model 2003 Lexus GX470 2003 Toyota 4Runner 2004 Lexus GX470 2004 Toyota 4Runner 2005 Lexus GX470 2005 Toyota 4Runner 2006 Lexus GX470 2006 Toyota 4Runner 2007 Lexus GX470 2007 Toyota 4Runner 2007 Toyota FJ Cruiser 2008 Lexus GX470 2008 Toyota 4Runner 2008 Toyota FJ Cruiser 2009 Lexus GX470 2009 Toyota 4Runner 2009 Toyota FJ Cruiser
