Toyota Coilover Spring and Shock Assembly - Front - ICON Vehicle Dynamics - 58620-700

COILOVER KIT
58620-700
OEM Wheels and Tires Fitment: Yes
Recommended Aftermarket Wheels: ICON Alloys - 17x8.
5" w/ 4.
75” Backspace / 0mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.
00” Backspace / 0mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.
00” Backspace / 0mm Offset
Recommended Aftermarket Tires: 33" x 11.
50" (Larger tires may fit but fender trimming and modifications will be required.
)
APPLICATION NOTE #55: Shocks are fully serviceable.
Coilover heights indicated are for a stock equipped vehicle
APPLICATION NOTE #111: Bump stop spacer kit available that can be installed to increase threads showing beyond max recommendation.
TECH NOTE: 700lb/in spring rate only recommended for trucks with additional weight added to front end.
See ICON Help Center for information.
TECH NOTE: These "Standard Travel" length coilovers are optimized for use with stock front upper control arms.
If using aftermarket front upper control arms with high angle ball joints, consider "Extended Travel" versions, ICON part number 58625-700.

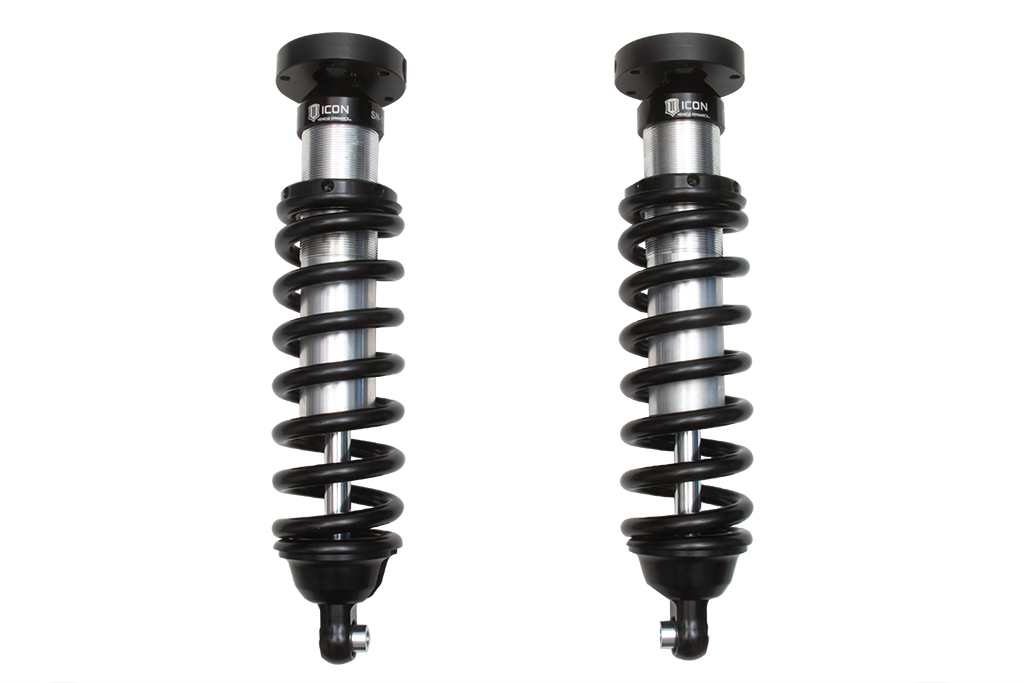

00-06 TUNDRA/01-07 SEQUOIA 2.
5 VS IR COILOVER KIT 700LB
These ICON coilovers feature 2.
5 Series shocks and coil springs optimized for this application.
The shock’s larger 2.
5” body and increased piston area improves damping ability and ride quality across varying types of terrain.
ICON Vehicle Dynamics V.
S.
2.
5 Series internal reservoir front coilover shocks are an incredible upgrade for the front end of the 2000-2006 Toyota Tundra and 2001-2007 Toyota Sequoia.
These adjustable coilovers allow up 0-2.
5” of lift height adjustability, allowing the use of larger, more aggressive wheel and tire combinations.
ICON’s Vehicle-specific shock length and valving, their large 2.
5” shock body with increased piston surface area over stock components, yield increased front wheel travel along with superior ride quality and suspension performance both on- and off-road.
To better support the weight of additional accessories such as aftermarket front bumpers and winches, these coilovers include ICON engineered coil springs with an increased, 700 lbs/in spring rate, allowing for taller ride heights with increased front end weight.
When paired with ICON 2.
0 or 2.
5 Aluminum Series rear shock absorbers vehicle control will be balanced front to rear, resulting in the best overall driving experience for your vehicle.
Vehicle specific tuned for superior shock damping, vehicle control, and improved ride quality over stock
Vehicle specific shock length and pairing with stock front upper control arms yield increased wheel travel
Height-adjustable coilovers offer 0-2.
5" of lift height adjustment over stock
ICON engineered coil springs with 700 lbs/in spring rate are more ideal for heavier equipped front ends
2.
5" diameter shock bodies with internal reservoirs for consistent performance
6061 Aircraft grade aluminum CNC machined components
Corrosion resistant CAD plated shock bodies with 7/8" diameter shafts
FK rod end bearings for extended longevity and minimal deflection
Fully rebuildable and re-tunable
ICON 2000-2006 Toyota Tundra/2001-2007 Toyota Sequoia, V.
S.
2.
5 Series Coilover Kit, Internal Reservoir, 700 lb/in Coils, 58620-700
ICON 2000-2006 Toyota Tundra/2001-2007 Toyota Sequoia, V.
S.
2.
5 Series Coilover Kit, Internal Reservoir, 700 lb/in Coils
ICON 00-06 TUNDRA/01-07 SEQUOIA 2.
5 VS IR COILOVER KIT 700LB.

Detailed Fitment Results
Year Make Model 2000 Toyota Tundra 2001 Toyota Tundra 2001 Toyota Sequoia 2002 Toyota Tundra 2002 Toyota Sequoia 2003 Toyota Tundra 2003 Toyota Sequoia 2004 Toyota Tundra 2004 Toyota Sequoia 2005 Toyota Tundra 2005 Toyota Sequoia 2006 Toyota Tundra 2006 Toyota Sequoia 2007 Toyota Sequoia
