08-21 Toyota Land Cruiser Suspension Control Arm Kit - Front Upper - ICON Vehicle Dynamics - 58570DJ

DELTA JOINT UCA KIT
08-UP LC 200 BILLET UCA DELTA JOINT KIT
Factory Wheels and Tires Fitment: Yes
Recommended Aftermarket Wheels: 17" x 8.
5" with max 5.
75" back space
Recommended Aftermarket Tires: 34" x 10.
50"
08-UP LC 200 BILLET UCA DJ KIT
2008-UP LC 200 BILLET UCA DELTA JOINT KIT
Take the performance of your 2008-UP Toyota Land Cruiser to new levels with the ICON Vehicle Dynamics Delta Joint billet aluminum upper control arm kit.
All ICON billet upper control arms are constructed from CNC machined 6061 aluminum and then finished in a matte anodization process for maximum strength and corrosion resistance.
ICON billet aluminum upper control arms feature quality PTFE-lined rod ends and machined adjuster sleeves that allow for on-vehicle alignment adjustment and precision caster and camber tuning.
The precise alignment specs provided by these components translates into superior performance and ride quality for your LC200.
These upper control arms feature ICON's patented Delta Joint.
The Delta Joint is a heavy duty high angle ball joint that combines the durability of a ball joint with the performance characteristics of a traditional uniball.
While the industry standard uniball does a great job of allowing the control arms of a vehicle to articulate with little bind, they do have an inherent weakness that leaves more to be desired when used in a daily driven application - exposure to the elements.
The Delta Joint features a zinc plated housing providing the first layer of corrosion resistance, while a tough grease seal keeps potentially harmful elements out of the inner workings of the joint.
Metal on metal construction and a greasable design increase the longevity of the Delta Joint while at the same time allowing for noise-free operation.
What makes the Delta Joint unique is that it brings the best of both worlds to ICON upper control arms with features that make it more robust than a uniball, and at the same time capable of greater angularity than a typical ball joint.
ICON Delta Joint
CNC Machined 6061 Billet Aluminum Construction
Quality PTFE-lined ¾” FK Rod Ends
On-Vehicle Adjustable For Quick And Precise Alignment
Caster and Camber Adjustability Allows For Fine Tuning Of Vehicle Handling
Matte Anodized Finish Provides Exceptional Corrosion Resistance
O-ring Sealed Delta Joint Cover Cap For Additional Protection From The Elements

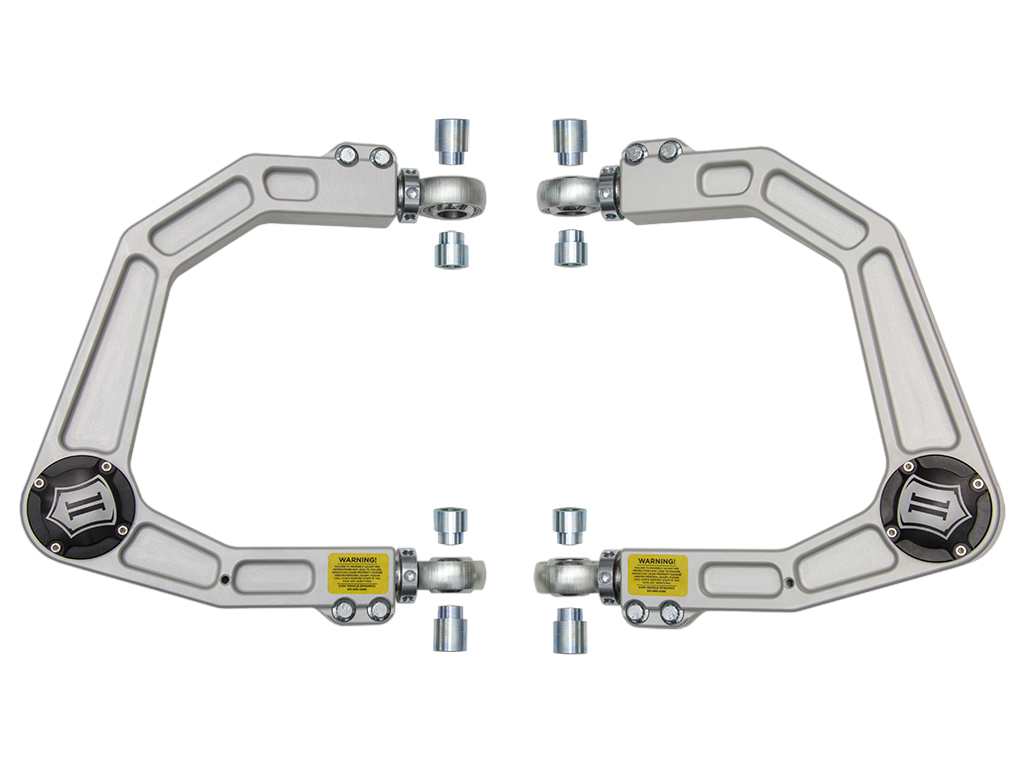

ICON 2008-Up Toyota Land Cruiser, Billet Upper Control Arm w/Delta Joint Kit, 58570DJ
ICON 2008-Up Toyota Land Cruiser, Billet Upper Control Arm w/Delta Joint Kit.

Detailed Fitment Results
Year Make Model 2008 Toyota Land Cruiser 2009 Toyota Land Cruiser 2010 Toyota Land Cruiser 2011 Toyota Land Cruiser 2013 Toyota Land Cruiser 2014 Toyota Land Cruiser 2015 Toyota Land Cruiser 2016 Toyota Land Cruiser 2017 Toyota Land Cruiser 2018 Toyota Land Cruiser 2019 Toyota Land Cruiser 2020 Toyota Land Cruiser 2021 Toyota Land Cruiser
