Toyota (4WD/RWD - Coil) Suspension Control Arm Kit - ICON Vehicle Dynamics - 58561DJ

BILLET UCA KIT
58561DJ
Factory Wheels and Tires Fitment: Yes
Recommended Aftermarket Wheels (2-3.
5" Lift): ICON Alloys - 17x8.
5 with 5.
75” Backspace / 25mm Offset
Recommended Aftermarket Wheels (2-3.
5" Lift): ICON Alloys - 18x9 with 6.
00” Backspace / 25mm Offset
Recommended Aftermarket Wheels (ICON 6" Lift): ICON Alloys - 20x9 with 5.
625” Backspace / 16mm Offset
Recommended Aftermarket Tires (2-3.
5" Lift): 35" x 12.
50"
Recommended Aftermarket Tires (ICON 6" Lift): 37" x 12.
50"
TECH NOTE: Compatible with 2022-2025 Tundra equipped with 0-3.
5” of front lift over stock
TECH NOTE: Compatible with 2022-2024 Tundra with TRD Sport Package equipped with 0-4.
5” of front lift over stock
TECH NOTE: Compatible with 2022-2025 Tundra TRD Pro equipped with 0-1.
75” of front lift over stock
TECH NOTE: Compatible with ICON 2022-2024 Tundra 6" Lift Performance Suspension System but NOT compatible with 6" lift kits from other manufacturers
TECH NOTE: Compatible with 2023-2024 Sequoia equipped with 0-4.
5” of front lift over stock
22-25 TUNDRA/23-25 SEQUOIA BILLET UCA DJ PRO KIT

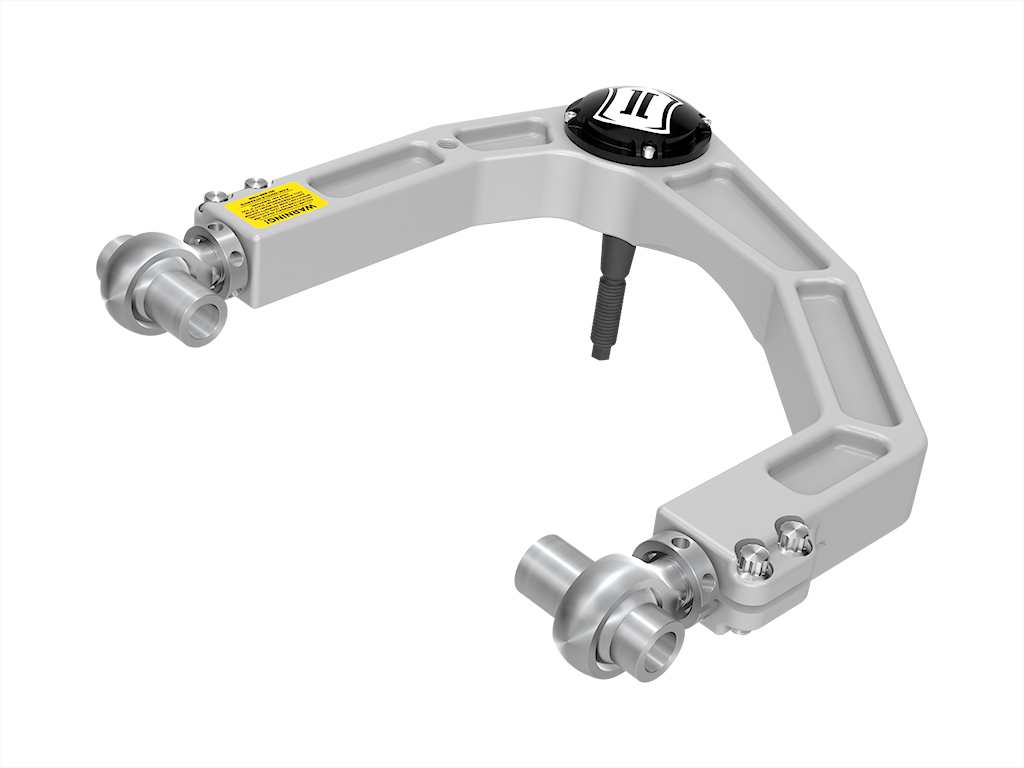

ICON billet UCAs are made from CNC machined 6061 aluminum and feature PTFE-lined rod ends and ICON’s Delta Joint PRO, a hardcore high-angle ball joint that combines the durability of a ball joint with the performance of a uniball.
This ICON billet aluminum upper control arm kit is designed to improve the overall performance of the 2022-2025 Toyota Tundra/2023-2025 Toyota Sequoia with corrected front-end geometry, increased camber and caster adjustment, and improved suspension component clearance.
Constructed of CNC machined 6061 billet aluminum utilizing a hybrid H-beam cross-section that is light-weight and resists bending forces better than tubular arms.
Replacing the OE ball joint with the all-new, serviceable, and rebuildable ICON Delta Joint PRO allows for full bump and droop travel of the front suspension while eliminating bind.
FK Rod End 3/4” heim joints provide precise and smooth function throughout the range of travel while ICON’s signature double adjuster sleeve allows for on-vehicle camber and caster adjustment.
Included with all components and hardware necessary for a complete install, these billet UCAs are the perfect front end upgrade for the 2022-2025 Toyota Tundra or 2023-2025 Toyota Sequoia.
ICON suspension components with the all-new Delta Joint PRO represent the state of the art in off-road performance and durability.
Delta Joint PRO is ICON's innovative new suspension articulation joint which combines the durability and longevity of factory style ball joints with performance and strength that exceeds traditional motorsports-style ball joints.
The Delta Joint PRO features a new rebuildable, serviceable design in which any component may be removed, inspected and replaced without having to purchase a whole new joint.
Strength and durability are improved by using a larger ball with 56% more bearing surface than our standard Delta Joint, along with improved lubrication sealing.
But improved performance is at the heart of the Delta Joint PRO, with a full 90 degrees of articulation, from one extreme to the other.
This represents a 14% improvement in range of motion, over the highly capable original Delta Joint, allowing for maximum bind-free suspension movement through the complete range of travel.
The Delta Joint PRO is built to take the abuse, with a chromoly ball and shaft that has a bearing surface hardened to Rockwell C 55.
The replaceable races are made of graphite-impregnated sintered metal, machined to the finest tolerance to provide a flawless, metal-to-metal bearing interface.
We also redesigned the lubrication system, with lubricant channels that distribute grease more efficiently without extending past the bearing seal.
CNC machined 6061 billet aluminum construction with satin anodized finish
Corrects suspension geometry and allows for proper wheel alignment on Tundras with up to 3” of lift
Quick, precise, on-vehicle adjustment for both caster and camber
Delta Joint PRO allows maximum articulation without binding
Delta Joint PRO is 100% serviceable and rebuildable
FK Rod Ends at chassis pivots for strength and precision driving characteristics
Built in O-ring sealed dust cover cap
ICON 2022-2025 Toyota Tundra/2023-2025 Toyota Sequoia, Billet Upper Control Arm Kit, w/ Delta Joint Pro, 58561DJ
ICON 2022-2025 Toyota Tundra/2023-2025 Toyota Sequoia, Billet Upper Control Arm Kit, w/ Delta Joint Pro
ICON 22-25 TUNDRA/23-25 SEQUOIA BILLET UCA DJ PRO KIT.

Detailed Fitment Results
Year Make Model Submodel 2022 Toyota Tundra Limited 2022 Toyota Tundra Platinum 2022 Toyota Tundra TRD Pro 2022 Toyota Tundra SR 2022 Toyota Tundra 1794 Edition 2022 Toyota Tundra Capstone 2022 Toyota Tundra SR5 2022 Toyota Tundra 2022 Toyota Tundra SR5 TRD Off-Road 2022 Toyota Tundra Platinum 1794 Edition 2022 Toyota Tundra Limited TRD Off-Road 2022 Toyota Tundra SR TRD Off-Road 2023 Toyota Tundra Limited 2023 Toyota Tundra Platinum 2023 Toyota Tundra TRD Pro 2023 Toyota Tundra SR 2023 Toyota Tundra 1794 Edition 2023 Toyota Tundra Capstone 2023 Toyota Tundra SR5 2023 Toyota Tundra 2023 Toyota Sequoia SR5 2023 Toyota Sequoia Limited 2023 Toyota Sequoia Capstone 2023 Toyota Sequoia TRD Pro 2023 Toyota Sequoia Platinum 2023 Toyota Sequoia TRD Off-Road 2024 Toyota Tundra Limited 2024 Toyota Tundra Platinum 2024 Toyota Tundra TRD Pro 2024 Toyota Tundra SR 2024 Toyota Tundra 1794 Edition 2024 Toyota Tundra Capstone 2024 Toyota Tundra SR5 2024 Toyota Tundra TRD Off-Road 2024 Toyota Sequoia SR5 2024 Toyota Sequoia Limited 2024 Toyota Sequoia Capstone 2024 Toyota Sequoia TRD Pro 2024 Toyota Sequoia Platinum 2025 Toyota Tundra Limited 2025 Toyota Tundra Platinum 2025 Toyota Tundra TRD Pro 2025 Toyota Tundra SR 2025 Toyota Tundra 1794 Edition 2025 Toyota Tundra Capstone 2025 Toyota Tundra TRD Off-Road 2025 Toyota Tundra SR5 2025 Toyota Sequoia SR5 2025 Toyota Sequoia Limited 2025 Toyota Sequoia Capstone 2025…
