Toyota Suspension Control Arm Kit - Front Upper - ICON Vehicle Dynamics - 58560DJ

UPPER CONTROL ARMS
58560DJ
Factory Wheels and Tires Fitment: Yes
Recommended Aftermarket Wheels: ICON Alloys - 17x8.
5" w/ 5.
75” Backspace / 25mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 6.
00” Backspace / 25mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.
625” Backspace / 16mm Offset
Recommended Aftermarket Tires: 35" x 12.
50"
APPLICATION NOTE #110: Trimming required for recommended tire size
TECH NOTE: NOT compatible with all subframe-drop lift kits or aftermarket spindles.
TECH NOTE: Geometry optimized for 0-3" of front lift over stock

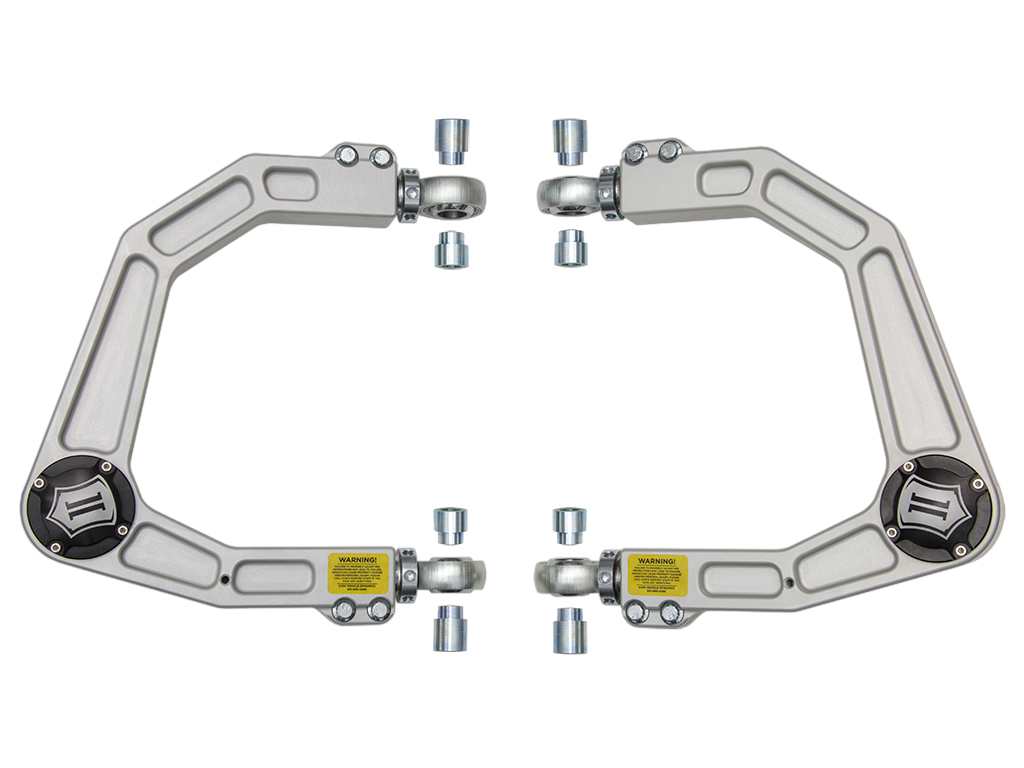

07-21 TUNDRA/08-22 SEQUOIA BILLET UCA DJ KIT
ICON billet UCAs are made from CNC machined 6061 aluminum and feature PTFE-lined rod ends and ICON’s Delta Joint, a hardcore high-angle ball joint that combines the durability of a ball joint with the performance of a traditional uniball.
Take the performance of your 2007-2021 Toyota Tundra or 2008-2022 Toyota Sequoia to new levels with the ICON Vehicle Dynamics Delta Joint billet aluminum upper control arm kit.
All ICON billet upper control arms are constructed from CNC machined 6061 aluminum and then finished in a matte anodization process for maximum strength and corrosion resistance.
ICON billet aluminum upper control arms feature quality PTFE-lined rod ends and machined adjuster sleeves that allow for on-vehicle alignment adjustment and precision caster and camber tuning.
Another major benefit of ICON upper control arms is the potential for increased wheel travel when paired with our extended travel coilovers.
The additional droop travel provided by these components translates into superior performance and ride quality for your 2007-2021 Toyota Tundra or 2008-2022 Toyota Sequoia.
These upper control arms feature ICON's patented Delta Joint.
The Delta Joint is a heavy-duty high angle ball joint that combines the durability of a ball joint with the performance characteristics of a traditional uniball.
While the industry standard uniball does a great job of allowing the control arms of a vehicle to articulate with little bind, they do have an inherent weakness that leaves more to be desired when used in a daily driven application - exposure to the elements.
The Delta Joint features a zinc plated housing providing the first layer of corrosion resistance, while a tough grease seal keeps potentially harmful elements out of the inner workings of the joint.
Metal on metal construction and a greaseable design increase the longevity of the Delta Joint while at the same time allowing for noise-free operation.
What makes the Delta Joint unique is that it brings the best of both worlds to ICON upper control arms with features that make it more robust than a uniball, and at the same time capable of greater angularity than a typical ball joint.
ICON Delta Joint
CNC Machined 6061 Billet Aluminum Construction
Quality PTFE-lined ¾” FK Rod Ends
On-Vehicle Adjustable For Quick And Precise Alignment
Caster and Camber Adjustability Allows For Fine Tuning Of Vehicle Handling
Matte Anodized Finish Provides Exceptional Corrosion Resistance
O-ring Sealed Delta Joint Cover Cap For Additional Protection From The Elements
ICON 2007-2021 Toyota Tundra/2008-2022 Toyota Sequoia, Billet Front Upper Control Arm w/ Delta Joint Kit, 58560DJ
ICON 2007-2021 Toyota Tundra/2008-2022 Toyota Sequoia, Billet Front Upper Control Arm w/ Delta Joint Kit
ICON 07-21 TUNDRA/08-22 SEQUOIA BILLET UCA DJ KIT.

Detailed Fitment Results
Year Make Model 2007 Toyota Tundra 2008 Toyota Tundra 2008 Toyota Sequoia 2009 Toyota Tundra 2009 Toyota Sequoia 2010 Toyota Tundra 2010 Toyota Sequoia 2011 Toyota Tundra 2011 Toyota Sequoia 2012 Toyota Tundra 2012 Toyota Sequoia 2013 Toyota Tundra 2013 Toyota Sequoia 2014 Toyota Tundra 2014 Toyota Sequoia 2015 Toyota Tundra 2015 Toyota Sequoia 2016 Toyota Tundra 2016 Toyota Sequoia 2017 Toyota Tundra 2017 Toyota Sequoia 2018 Toyota Tundra 2018 Toyota Sequoia 2019 Toyota Tundra 2019 Toyota Sequoia 2020 Toyota Tundra 2020 Toyota Sequoia 2021 Toyota Tundra 2021 Toyota Sequoia 2022 Toyota Sequoia
