Toyota (4WD) Suspension Control Arm Kit - Front Upper - ICON Vehicle Dynamics - 58550DJ

DELTA JOINT UCA KIT
58550DJ
OEM Wheels and Tires Fitment: Yes
Recommended Aftermarket Wheels: ICON Alloys - 17x8.
5 with 4.
75” Backspace / 0mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 18x9 with 5.
00” Backspace / 0mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 20x9 with 5.
00” Backspace / 0mm Offset
Recommended Aftermarket Tires: 33" x 11.
50" (Larger tires may fit but fender trimming and modifications will be required.
)
TECH NOTE: Only compatible with OE spindles.
DO NOT install in combination with ANY aftermarket spindles.
TECH NOTE: Will not fit 2005-2015 2WD 5-Lug Toyota Tacoma models
TECH NOTE: Compatible with 0-3.
5" of front lift over stock on 2005-2015 Toyota Tacoma
TECH NOTE: Compatible with 0-2.
75" of front lift over stock on 2016-2023 Toyota Tacoma
05-23 TACOMA BILLET UCA DJ KIT

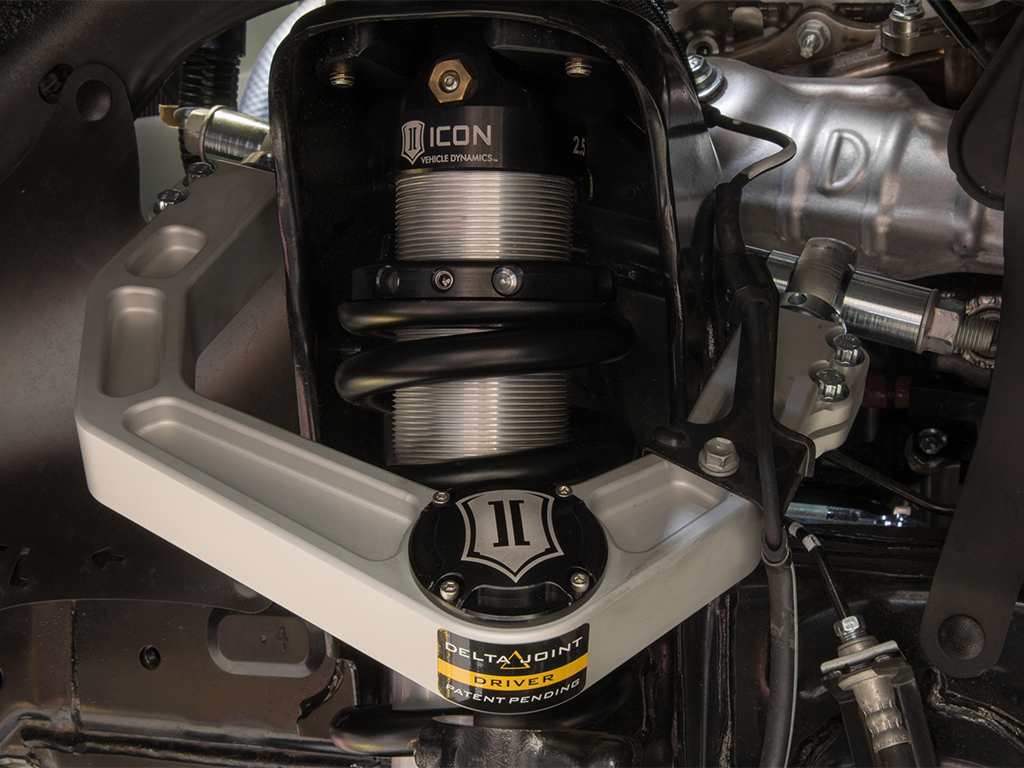

ICON billet UCAs are made from CNC machined 6061 aluminum and feature PTFE-lined rod ends and ICON’s Delta Joint, a hardcore high-angle ball joint that combines the durability of a ball joint with the performance of a traditional uniball.
Take the performance of your 2005-2023 Toyota Tacoma to new levels with the ICON Vehicle Dynamics Delta Joint billet aluminum upper control arm kit.
All ICON billet upper control arms are constructed from CNC machined 6061 aluminum and then finished in a matte anodization process for maximum strength and corrosion resistance.
ICON billet aluminum upper control arms feature quality PTFE-lined rod ends and machined adjuster sleeves that allow for on-vehicle alignment adjustment and precision caster and camber tuning.
Another major benefit of ICON upper control arms is the potential for increased wheel travel when paired with our extended travel coilovers.
The additional droop travel provided by these components translates into superior performance and ride quality for your 2005-2023 Toyota Tacoma.
These upper control arms feature ICON's patented Delta Joint.
The Delta Joint is a heavy-duty high angle ball joint that combines the durability of a ball joint with the performance characteristics of a traditional uniball.
While the industry standard uniball does a great job of allowing the control arms of a vehicle to articulate with little bind, they do have an inherent weakness that leaves more to be desired when used in a daily driven application - exposure to the elements.
The Delta Joint features a zinc plated housing providing the first layer of corrosion resistance, while a tough grease seal keeps potentially harmful elements out of the inner workings of the joint.
Metal on metal construction and a greaseable design increase the longevity of the Delta Joint while at the same time allowing for noise-free operation.
What makes the Delta Joint unique is that it brings the best of both worlds to ICON upper control arms with features that make it more robust than a uniball, and at the same time capable of greater angularity than a typical ball joint.
Features patended ICON Delta Joint (U.
S.
Pat.
10,731,700)
CNC Machined 6061 Billet Aluminum Construction
High-Quality PTFE-lined ¾” FK Rod Ends
On-Vehicle Adjustable For Quick And Precise Alignment
Caster and Camber Adjustability Allows For Fine Tuning Of Vehicle Handling
Matte Anodized Finish Provides Exceptional Corrosion Resistance
O-ring Sealed Delta Joint Cover Cap For Additional Protection From The Elements
ICON 2005-2023 Toyota Tacoma, Billet Front Upper Control Arm w/ Delta Joint Kit, 58550DJ
ICON 2005-2023 Toyota Tacoma, Billet Front Upper Control Arm w/ Delta Joint Kit
ICON 05-23 TACOMA BILLET UCA DJ KIT.

Detailed Fitment Results
Year Make Model Submodel 2005 Toyota Tacoma Pre Runner 2005 Toyota Tacoma Base 2005 Toyota Hilux 2006 Toyota Tacoma Pre Runner 2006 Toyota Tacoma Base 2006 Toyota Tacoma SR5 Prerunner 2006 Toyota Tacoma TRD Sport Prerunner 2006 Toyota Tacoma Base Prerunner 2006 Toyota Hilux 2007 Toyota Tacoma Pre Runner 2007 Toyota Tacoma Base 2007 Toyota Tacoma SR5 Prerunner 2007 Toyota Tacoma TRD Sport Prerunner 2007 Toyota Hilux 2008 Toyota Tacoma Pre Runner 2008 Toyota Tacoma Base 2008 Toyota Tacoma SR5 Prerunner 2008 Toyota Tacoma TRD Sport Prerunner 2008 Toyota Hilux 2009 Toyota Tacoma Pre Runner 2009 Toyota Tacoma Base 2009 Toyota Tacoma SR5 Prerunner 2009 Toyota Tacoma TRD Sport Prerunner 2009 Toyota Hilux 2010 Toyota Tacoma Pre Runner 2010 Toyota Tacoma Base 2010 Toyota Tacoma TRD Sport 2010 Toyota Hilux 2011 Toyota Tacoma Pre Runner 2011 Toyota Tacoma Base 2011 Toyota Tacoma TRD Sport 2011 Toyota Hilux 2012 Toyota Tacoma Pre Runner 2012 Toyota Tacoma Base 2012 Toyota Tacoma TRD Sport 2012 Toyota Hilux 2013 Toyota Tacoma Pre Runner 2013 Toyota Tacoma Base 2013 Toyota Tacoma TRD Sport 2013 Toyota Hilux 2014 Toyota Tacoma Pre Runner 2014 Toyota Tacoma Base 2014 Toyota Tacoma TRD Sport 2014 Toyota Hilux 2015 Toyota Tacoma Pre Runner 2015 Toyota Tacoma Base 2015 Toyota Tacoma TRD Sport 2015 Toyota Tacoma TRD Pro 2015 Toyota Hilux 2016 Toyota Tacoma SR 2016 Toyota Tacoma TRD Sport 2016 Toyota Tacoma TRD Off-Road 2016 Toyota Tacoma Edicion Especial 2016 Toyota Tacoma Limited 2016 Toyota Tacoma SR5 2016 Toyota Hilux 2017 Toyota Tacoma SR 2017 Toyota Tacoma TRD Sport 2017 Toyota Tacoma TRD Off-Road 2017 Toyota Tacoma Edicion Especial 2017 Toyota Tacoma Limited 2017 Toyota Tacoma SR5 2017 Toyota Tacoma Sport 2017 Toyota Tacoma TRD Pro 2017 Toyota Hilux 2018 Toyota Tacoma SR 2018 Toyota Tacoma TRD Sport 2018 Toyota Tacoma TRD Off-Road 2018 Toyota Tacoma Edicion Especial 2018 Toyota Tacoma Limited 2018 Toyota Tacoma SR5 2018 Toyota Tacoma Sport 2018 Toyota Tacoma TRD Pro 2018 Toyota Hilux 2019 Toyota Tacoma SR 2019 Toyota Tacoma TRD Sport 2019 Toyota Tacoma TRD Off-Road 2019 Toyota Tacoma Edicion Especial 2019 Toyota Tacoma Limited 2019 Toyota Tacoma SR5 2019 Toyota Tacoma Sport 2019 Toyota Tacoma TRD Pro 2019 Toyota Hilux 2020 Toyota Tacoma SR 2020 Toyota Tacoma TRD Sport 2020 Toyota Tacoma TRD Off-Road 2020 Toyota Tacoma Edicion Especial 2020 Toyota Tacom…
