Toyota (4WD) Suspension Control Arm Kit - ICON Vehicle Dynamics - 58500DJ

UPPER CONTROL ARMS
58500DJ
OEM Wheels and Tires Fitment: Yes
Recommended Aftermarket Wheels: ICON Alloys - 17x8.
5" w/ 4.
75” Backspace / 0mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5” Backspace / 0mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5” Backspace / 0mm Offset
Recommended Aftermarket Tires: 33" x 11.
50" (Larger tires may fit but fender trimming and modifications will be required.
)
APPLICATION NOTE #185: Will not fit 2WD Tacoma with 5 wheel lug studs
96-04 TACOMA/96-02 4RNR BILLET UCA DJ KIT

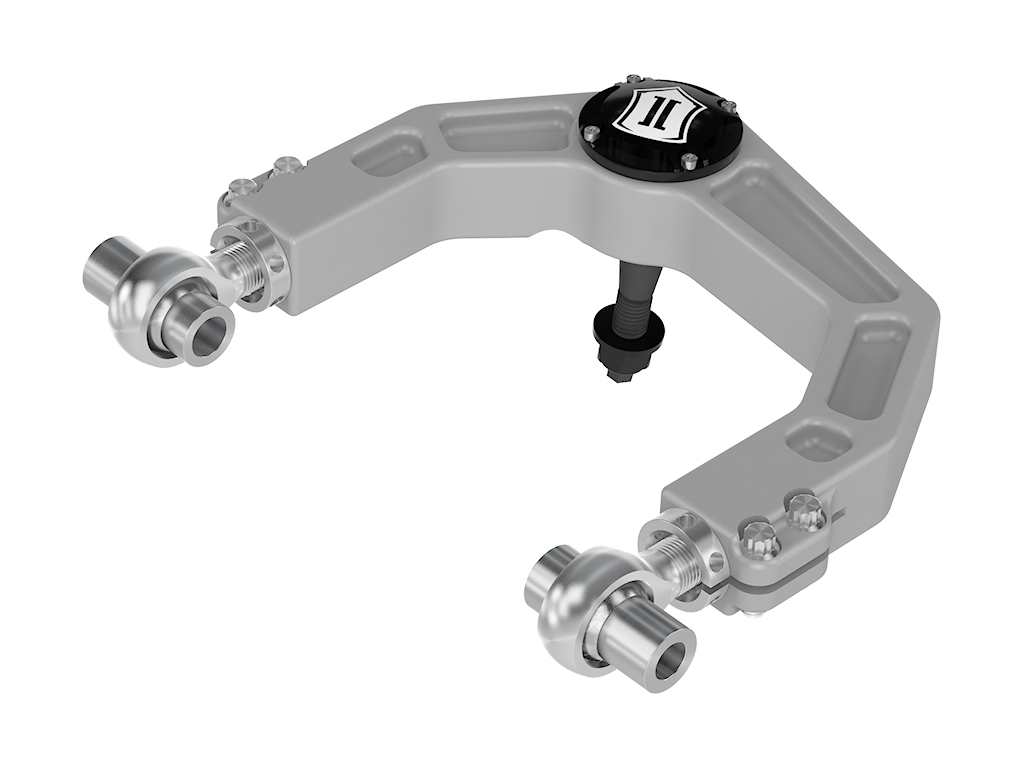

ICON billet UCAs are made from CNC machined 6061 aluminum and feature PTFE-lined rod ends and ICON’s Delta Joint, a hardcore high-angle ball joint that combines the durability of a ball joint with the performance of a traditional uniball.
Take the performance of your 1996-2004 Toyota Tacoma or 1996-2002 Toyota 4Runner to new levels with the ICON Vehicle Dynamics Delta Joint billet aluminum upper control arm kit.
All ICON billet upper control arms are constructed from CNC machined 6061 aluminum and then finished in a matte anodization process for maximum strength and corrosion resistance.
ICON billet aluminum upper control arms feature quality PTFE-lined rod ends and machined adjuster sleeves that allow for on-vehicle alignment adjustment and precision caster and camber tuning.
Another major benefit of ICON upper control arms is the potential for increased wheel travel when paired with our extended travel coilovers.
The additional droop travel provided by these components translates into superior performance and ride quality for your 1996-2004 Toyota Tacoma or 1996-2002 Toyota 4Runner.
These upper control arms feature ICON's patented Delta Joint.
The Delta Joint is a heavy-duty high angle ball joint that combines the durability of a ball joint with the performance characteristics of a traditional uniball.
While the industry standard uniball does a great job of allowing the control arms of a vehicle to articulate with little bind, they do have an inherent weakness that leaves more to be desired when used in a daily driven application - exposure to the elements.
The Delta Joint features a zinc plated housing providing the first layer of corrosion resistance, while a tough grease seal keeps potentially harmful elements out of the inner workings of the joint.
Metal on metal construction and a greaseable design increase the longevity of the Delta Joint while at the same time allowing for noise-free operation.
What makes the Delta Joint unique is that it brings the best of both worlds to ICON upper control arms with features that make it more robust than a uniball, and at the same time capable of greater angularity than a typical ball joint.
Direct bolt-in design makes for a simple and straightforward installation
Patented Delta Joint (U.
S.
Pat.
10,731,700) combines the durability and weather resistance of a ball joint with the performance characteristics of a uniball
CNC machined steel taper adapter
CNC Machined 6061 Billet Aluminum Construction
High-Quality PTFE-lined ¾” FK Rod Ends
On-Vehicle Adjustable For Quick And Precise Alignment
Caster and Camber Adjustability Allows For Fine Tuning Of Vehicle Handling
Matte Anodized Finish Provides Exceptional Corrosion Resistance
O-ring Sealed Delta Joint Cover Cap For Additional Protection From The Elements
Delta Joint upper control arms carry ICON's exclusive 5 year limited warranty when used in a complete ICON suspension system
ICON 1996-2004 Toyota Tacoma/1996-2002 Toyota 4Runner, Billet Upper Control Arm w/ Delta Joint Kit, 58500DJ
ICON 1996-2004 Toyota Tacoma/1996-2002 Toyota 4Runner, Billet Upper Control Arm w/ Delta Joint Kit
ICON 96-04 TACOMA/96-02 4RNR BILLET UCA DJ KIT.

Detailed Fitment Results
Year Make Model Submodel 1995 Toyota Tacoma Base 1995 Toyota Tacoma DLX 1995 Toyota Tacoma SR5 1996 Toyota 4Runner 1996 Toyota Tacoma Base 1996 Toyota Tacoma DLX 1996 Toyota Tacoma SR5 1997 Toyota 4Runner 1997 Toyota Tacoma Base 1997 Toyota Tacoma DLX 1997 Toyota Tacoma SR5 1998 Toyota 4Runner 1998 Toyota Tacoma Base 1998 Toyota Tacoma DLX 1998 Toyota Tacoma SR5 1998 Toyota Tacoma Pre Runner 1998 Toyota Tacoma Limited 1999 Toyota 4Runner 1999 Toyota Tacoma Base 1999 Toyota Tacoma DLX 1999 Toyota Tacoma SR5 1999 Toyota Tacoma Pre Runner 1999 Toyota Tacoma Limited 2000 Toyota 4Runner 2000 Toyota Tacoma Base 2000 Toyota Tacoma DLX 2000 Toyota Tacoma SR5 2000 Toyota Tacoma Pre Runner 2000 Toyota Tacoma Limited 2001 Toyota 4Runner 2001 Toyota Tacoma Base 2001 Toyota Tacoma DLX 2001 Toyota Tacoma Pre Runner 2002 Toyota 4Runner 2002 Toyota Tacoma Base 2002 Toyota Tacoma DLX 2002 Toyota Tacoma Pre Runner 2003 Toyota Tacoma Base 2003 Toyota Tacoma DLX 2003 Toyota Tacoma Pre Runner 2004 Toyota Tacoma Base 2004 Toyota Tacoma Pre Runner
