Toyota (4WD) Suspension Control Arm Kit - ICON Vehicle Dynamics - 58400DJ

UPPER CONTROL ARMS
58400DJ
OEM Wheels and Tires Fitment: Yes
Recommended Aftermarket Wheels: ICON Alloys - 17x8.
5" w/ 4.
75” Backspace / 0mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5” Backspace / 0mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5” Backspace / 0mm Offset
Recommended Aftermarket Tires: 33" x 11.
50" (Larger tires may fit but fender trimming and modifications will be required.
)
APPLICATION NOTE #185: Will not fit 2WD Tacoma with 5 wheel lug studs

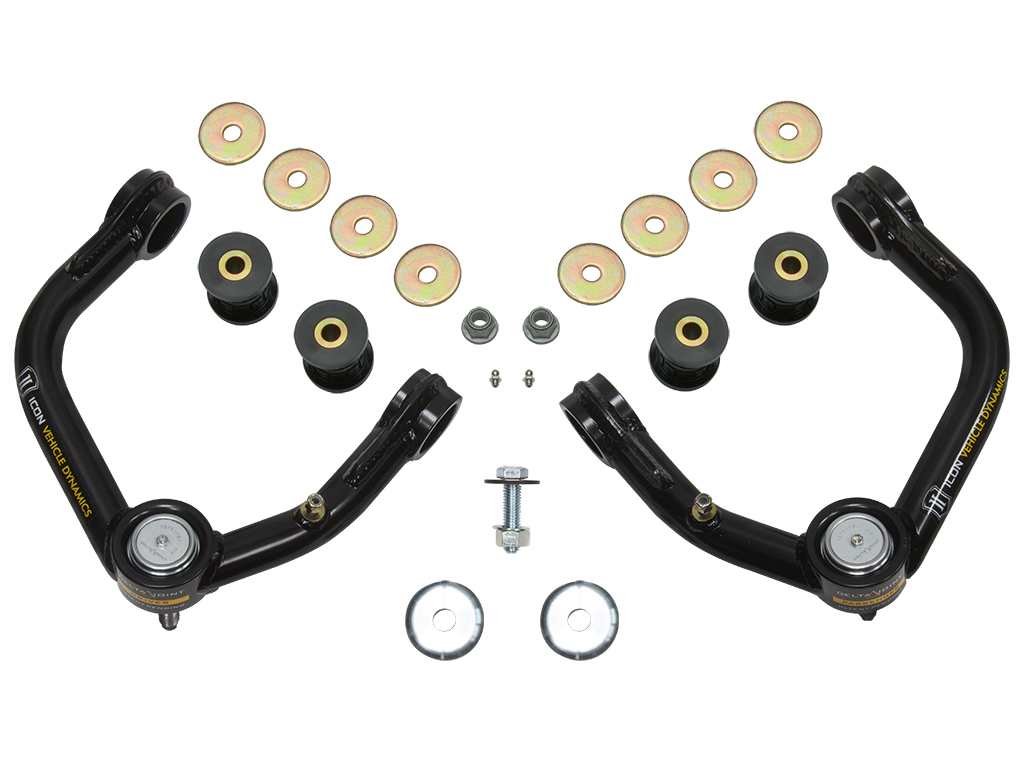

96-04 TACOMA/96-02 4RNR TUBULAR UCA DJ KIT
ICON tubular upper control arms feature 1026 DOM tube construction, PTFE-lined rod ends, and ICON’s Delta Joint, a hardcore high-angle ball joint that combines the durability of a ball joint with the performance of a traditional uniball.
Through hours of in-house research and thousands of miles of real world testing, ICON engineers have identified the limiting factors of the 1996-2004 Toyota Tacoma and 1996-2002 Toyota 4Runner OEM upper control arms and developed a kit to address these limits.
Like all ICON tubular upper control arms, these are constructed from CNC bent 1026 DOM steel tubing and then powder coated to a semi-gloss black finish for maximum strength and corrosion resistance.
These arms are engineered with built-in geometry correction for optimal alignment specifications and increased caster for confidence inspiring handling.
The robust, two piece steel taper adapter clamps from both sides of the spindle to distribute the extreme forces seen during aggressive off-road driving while CNC machining provides a precise, OE style fit for the Delta Joint taper pin.
These upper control arms feature ICON's patented Delta Joint.
The Delta Joint is a heavy duty high angle ball joint that combines the durability of a ball joint with the performance characteristics of a traditional uniball.
While the industry standard uniball does a great job of allowing the control arms of a vehicle to articulate with little bind, they do have an inherent weakness that leaves more to be desired when used in a daily driven application - exposure to the elements.
The Delta Joint features a zinc plated housing providing the first layer of corrosion resistance, while a tough grease seal keeps potentially harmful elements out of the inner workings of the joint.
Metal on metal construction and a greasable design increase the longevity of the Delta Joint while at the same time allowing for noise-free operation.
What makes the Delta Joint unique is that it brings the best of both worlds to ICON upper control arms with features that make it more robust than a uniball, and at the same time capable of greater angularity than a typical ball joint.
Direct bolt-in design makes for a simple and straightforward installation
Patented Delta Joint (U.
S.
Pat.
10,731,700) combines the durability and weather resistance of a ball joint with the performance characteristics of a uniball
CNC machined steel taper adapter
1026 DOM steel construction
CNC bent and notched tubing
Serviceable dual stage bushings
CNC machined bushing housings and sleeves
Built-In caster correction
Black semi-gloss powder coat finish
Delta Joint upper control arms carry ICON's exclusive 5 year limited warranty when used in a complete ICON suspension system
ICON 1996-2004 Toyota Tacoma/1996-2002 Toyota 4Runner, Tubular Upper Control Arm w/Delta Joint Kit, 58400DJ
ICON 1996-2004 Toyota Tacoma/1996-2002 Toyota 4Runner, Tubular Upper Control Arm w/Delta Joint Kit
ICON 96-04 TACOMA/96-02 4RNR TUBULAR UCA DJ KIT.

Detailed Fitment Results
Year Make Model Submodel 1995 Toyota Tacoma Base 1995 Toyota Tacoma DLX 1995 Toyota Tacoma SR5 1996 Toyota 4Runner 1996 Toyota Tacoma Base 1996 Toyota Tacoma DLX 1996 Toyota Tacoma SR5 1997 Toyota 4Runner 1997 Toyota Tacoma Base 1997 Toyota Tacoma DLX 1997 Toyota Tacoma SR5 1998 Toyota 4Runner 1998 Toyota Tacoma Base 1998 Toyota Tacoma DLX 1998 Toyota Tacoma SR5 1998 Toyota Tacoma Pre Runner 1998 Toyota Tacoma Limited 1999 Toyota 4Runner 1999 Toyota Tacoma Base 1999 Toyota Tacoma DLX 1999 Toyota Tacoma SR5 1999 Toyota Tacoma Pre Runner 1999 Toyota Tacoma Limited 2000 Toyota 4Runner 2000 Toyota Tacoma Base 2000 Toyota Tacoma DLX 2000 Toyota Tacoma SR5 2000 Toyota Tacoma Pre Runner 2000 Toyota Tacoma Limited 2001 Toyota 4Runner 2001 Toyota Tacoma Base 2001 Toyota Tacoma DLX 2001 Toyota Tacoma Pre Runner 2002 Toyota 4Runner 2002 Toyota Tacoma Base 2002 Toyota Tacoma DLX 2002 Toyota Tacoma Pre Runner 2003 Toyota Tacoma Base 2003 Toyota Tacoma DLX 2003 Toyota Tacoma Pre Runner 2004 Toyota Tacoma Base 2004 Toyota Tacoma Pre Runner
