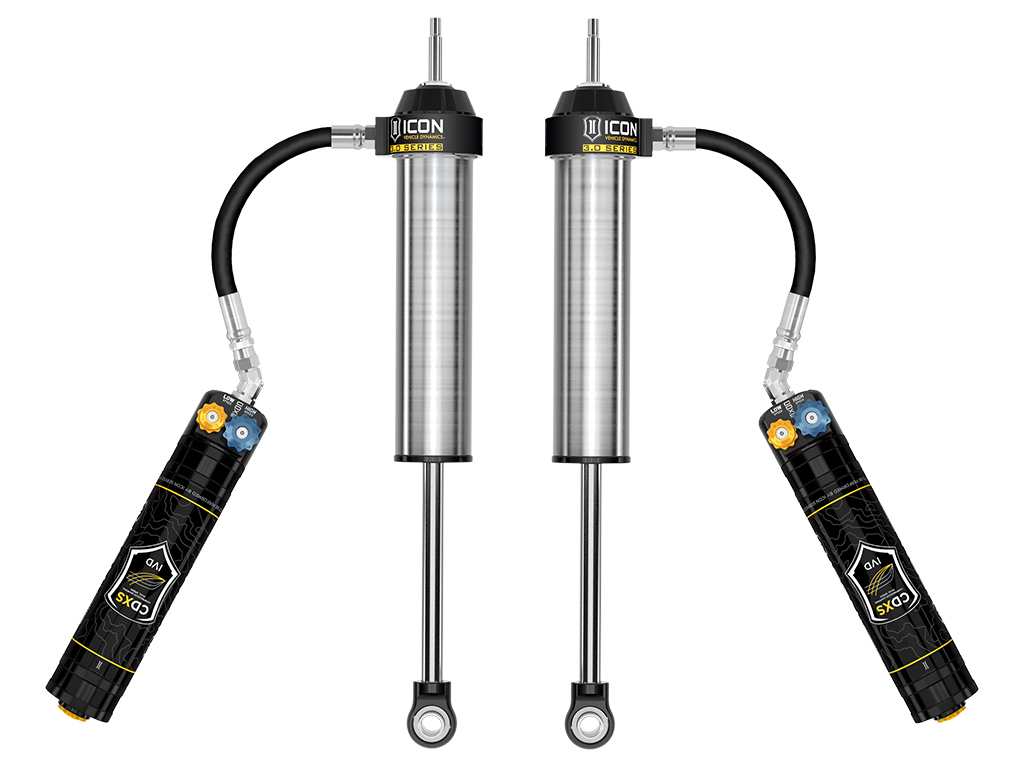

2022-2025 Toyota Tundra 0-1.5 Inch Lift 2023-2025 Sequoia 0-4 Inch Lift Rear V.S. 3.0 Series Shock Absorbers Remote Reservoir W CDXS Pair - ICON Vehicle Dynamics - 57845XP

ICON's 3.0 Series Rear Shocks with CDXS for 2022-2025 Toyota Tundra/2023-2025 Toyota Sequoia are designed to take the off-road capability of the truck to new levels by increasing wheel travel by up to 20 Percent and significantly improving the damping ability of the rear shocks, while being compatible with rear lift heights up to 1.5 Inch over stock on Tundra or 4 Inch over stock on Sequoia.

Features and Benefits:


3.0 Series shocks boast 50 Percent more piston surface area compared to 2.5 Series shocks. This translates into increased stability and vehicle control at the extremes of off-road use, with benefits also making themselves apparent in on-road driving conditions. Increased internal oil volume and more external surface area compared to 2.5 Series Shocks offer improved heat dissipation and resistance to shock fade under hard use.

Compression Damping Dual Speed (CDXS) valves are included for precisely dialing in your suspension performance. CDXS controls fluid flow under compression, with independent adjustability of high speed and low speed compression force. 10 discreet detented settings for both low and high-speed adjustment knobs allow separate adjustments for handling response and overall aggressiveness. When paired with ICON 3.0 Series Coilovers with CDXS on the front, vehicle control can be precisely dialed in front to rear, resulting in the best overall driving experience.

These 3.0 Series Shocks are designed as an OEM shock replacement, making installation a simple and straightforward bolt-on affair. Compatible with rear lift heights from 0-1.5 Inch over stock on Tundra or 0-4 Inch over stock on Sequoia allowing for the fitment of larger, more aggressive wheel and tire combinations. First class ICON manufacturing processes and quality components are used to ensure these shocks function to their maximum potential without issue.

20 Percent increase in rear suspension travel compared to stock

Compatible with up to 1.5 Inch of rear lift on most Tundra models or 3 Inch of lift on Sequoia

Vehicle specific design and tuning for superior shock damping and control

3.0 Inch Body diameter for increased oil volume and larger piston area

ICON CDXS equipped for independent adjustability of high speed and low speed compression force for handling response and aggressiveness

CNC machined 6061 aluminum components with a black anodized finish

PTFE lined spherical bearings for extended longevity and minimal deflection

7/8 Inch diameter induction hardened, chrome plated shock shafts

Corrosion resistant CAD plated steel shock bodies

Fully Rebuildable and Re-tunable


Details


Active Or Passive Suspension: Passive

Adjustable: Yes

Adjustable Compression: Yes

Adjustable Damping: Yes

Adjustable Rebound: No

Boot Included: No

Bore Diameter: 2.75

Cylinder Color: Grey

Cylinder Diameter: 3.0

Cylinder Material: Steel

Damping Adjustment Type: Dual Speed/Manual

Damping Type: Oil

External Reservoir: Yes

Gas Charged: Yes

Grade Type: Performance

Includes Bump Stop: No

Lower Mount Type: Eyelet

Mounting Hardware Included: Yes

Reservoir Type: Remote

Service Parts: 254100G - 1 Gallon Icon Performance Shock Oil

Shaft Diameter: 0.875

Shaft Material: Chrome

Shock Absorber Body End Measuring Point: Shoulder Of Stem

Shock Absorber Rod End Measuring Point: Center Of Eyelet

Tube Outside Diameter: 3.0

Upper Mount Type: Stem

Valving Type: Linear/Digressive

Add On Part: 252012 - -4 To -10 Hose Shield Kit



Detailed Fitment Results
Year Make Model Engine Fuel 2022 Toyota Tundra 3.4L FULL HYBRID EV-GAS (FHEV) 2022 Toyota Tundra 3.4L GAS 2022 Toyota Tundra 3.5L ELECTRIC / GAS 2022 Toyota Tundra 3.5L GAS 2023 Toyota Tundra 3.4L FULL HYBRID EV-GAS (FHEV) 2023 Toyota Tundra 3.4L GAS 2023 Toyota Tundra 3.4L MILD HYBRID EV-GAS (MHEV) 2023 Toyota Tundra 3.5L GAS 2023 Toyota Tundra 3.5L MILD HYBRID EV-GAS (MHEV) 2023 Toyota Sequoia 3.4L FULL HYBRID EV-GAS (FHEV) 2023 Toyota Sequoia 3.4L MILD HYBRID EV-GAS (MHEV) 2023 Toyota Sequoia 3.5L MILD HYBRID EV-GAS (MHEV) 2024 Toyota Tundra 3.4L FULL HYBRID EV-GAS (FHEV) 2024 Toyota Tundra 3.4L GAS 2024 Toyota Tundra 3.4L MILD HYBRID EV-GAS (MHEV) 2024 Toyota Sequoia 3.4L FULL HYBRID EV-GAS (FHEV) 2025 Toyota Tundra 3.4L FULL HYBRID EV-GAS (FHEV) 2025 Toyota Tundra 3.4L GAS 2025 Toyota Sequoia 3.4L FULL HYBRID EV-GAS (FHEV)
