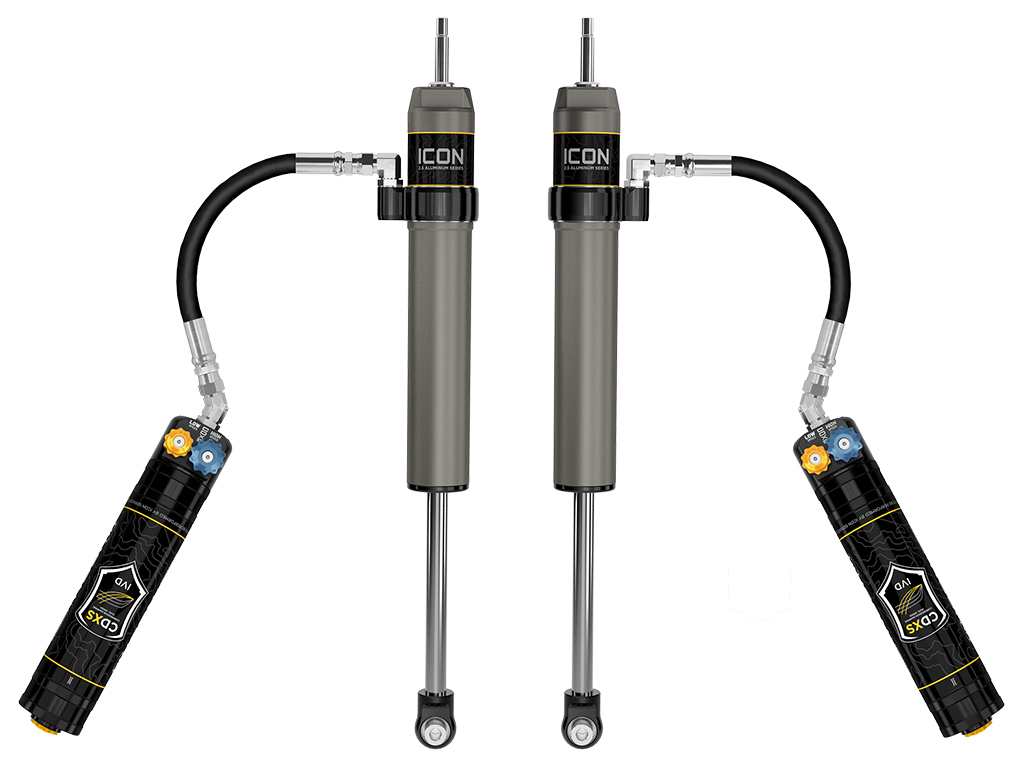

2022-2024 Toyota Tundra 3-3.5 Inch Lift Rear V.S. 2.5 Aluminum Series Shock Absorbers Remote Reservoir W/ CDXS Pair - ICON Vehicle Dynamics - 57841XP

ICON Vehicle Specific (V.S.) 2.5 Aluminum Series shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in both length and damping tune.

Like all ICON'S Shock Absorbers, V.S. 2.5 Aluminum Series shocks are fully rebuildable and re-tunable. For piggyback and specific remote reservoir applications, ICON'S unique use of a 6061-billet aluminum manifold a few inches below the top cap of the shock creates an internal Bump Zone that when used creates an additional 20 Percent of damping force.

This additional force helps prevent harsh bottom outs and controls the suspension when compressing at high velocity. Compression Damping Dual Speed (CDXS) valves are included for precisely dialing in your suspension performance.

CDXS controls fluid flow under compression, with independent adjustability of high speed and low speed compression force. 10 discreet detented settings for both low and high-speed adjustment knobs allow separate adjustments for handling response and overall aggressiveness.

Features and Benefits:


ICON CDXS equipped for independent adjustability of high speed and low speed compression force for handling response and aggressiveness

ICON's internal InchBump Zone Inch increases damping by 20 Percent to provide more control as the shock approaches full compression

Remote reservoir design improves heat dissipation to reduce shock fade during prolonged use

One-piece, hard anodized, impact extruded aluminum cylinders offer excellent corrosion resistance and consistent finish

Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range

Nitrogen charged monotube design with remote reservoir

One-piece digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road

7/8 Inch diameter induction hardened, chrome plated shock shaft

PTFE lined spherical bearings and application specific mounting hardware

6061 aircraft grade aluminum CNC machined components

Fully rebuildable and re-tunable


Details


Active Or Passive Suspension: Passive

Adjustable: Yes

Adjustable Compression: Yes

Adjustable Damping: Yes

Adjustable Rebound: No

Boot Included: No

Bore Diameter: 2.25

Cylinder Color: Grey

Cylinder Diameter: 2.5

Cylinder Material: Aluminum

Damping Adjustment Type: Dual Speed/Manual

Damping Type: Oil

External Reservoir: Yes

Gas Charged: Yes

Grade Type: Performance

Lower Mount Type: Eyelet

Mounting Hardware Included: Yes

Reservoir Type: Remote

Service Parts: 252011 - 2.5 Piggyback/Remote Resi/Bypass Rebuild Kit

Shaft Diameter: 0.875

Shaft Material: Chrome

Shock Absorber Body End Measuring Point: Shoulder Of Stem

Shock Absorber Rod End Measuring Point: Center Of Eylet

Tube Outside Diameter: 2.5

Upper Mount Type: Stem

Valving Type: Digressive

Add On Part: 252012 - -4 To -10 Hose Shield Kit



Detailed Fitment Results
Year Make Model Engine Fuel 2022 Toyota Tundra 3.4L FULL HYBRID EV-GAS (FHEV) 2022 Toyota Tundra 3.4L GAS 2022 Toyota Tundra 3.5L ELECTRIC / GAS 2022 Toyota Tundra 3.5L GAS 2023 Toyota Tundra 3.4L FULL HYBRID EV-GAS (FHEV) 2023 Toyota Tundra 3.4L GAS 2023 Toyota Tundra 3.4L MILD HYBRID EV-GAS (MHEV) 2023 Toyota Tundra 3.5L GAS 2023 Toyota Tundra 3.5L MILD HYBRID EV-GAS (MHEV) 2024 Toyota Tundra 3.4L FULL HYBRID EV-GAS (FHEV) 2024 Toyota Tundra 3.4L GAS 2024 Toyota Tundra 3.4L MILD HYBRID EV-GAS (MHEV) 2025 Toyota Tundra 3.4L FULL HYBRID EV-GAS (FHEV) 2025 Toyota Tundra 3.4L GAS
