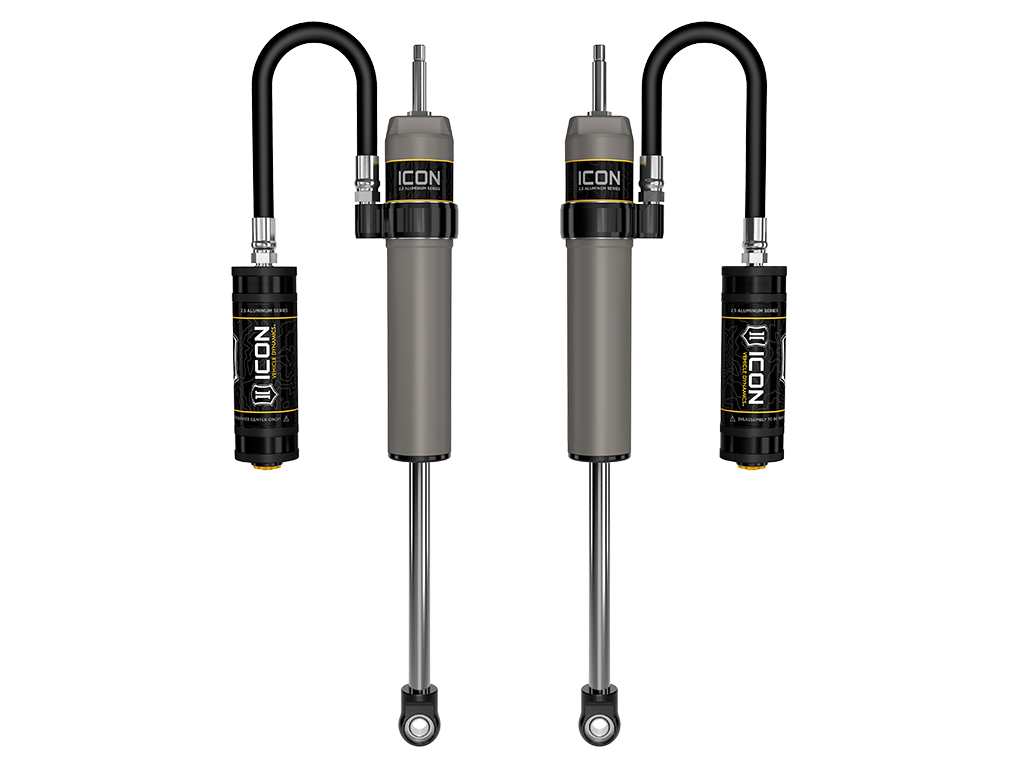

Toyota (4WD/RWD - Coil/Air) Suspension Shock Absorber Set - ICON Vehicle Dynamics - 57840P

SHOCK ABSORBER PAIR
57840P
APPLICATION NOTE #153: Not compatible with Adaptive Variable Suspension (AVS) equipped vehicles
TECH NOTE: Compatible with 0-1.
5” of rear lift on non-TRD Tundras or 0-1" lift on TRD Tundras equipped with rear coil springs
TECH NOTE: Compatible with 0-3.
5” of rear lift on Tundras equipped with rear OE Load-leveling Rear Height Control Air Suspension
TECH NOTE: Compatible with 0-4” of rear lift on non-TRD Sequoias equipped with rear coil springs or 0-2" lift on TRD Sequoias
22-25 TUNDRA 0-1.
5"/23-25 SEQUOIA 0-4" REAR 2.
5 VS RR PAIR
ICON VS 2.
5 Aluminum Series shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street.
They feature remote reservoirs and are 100% rebuildable/revalveable.
ICON Vehicle Specific (V.
S.
) 2.
5 Aluminum Series shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street.
These shocks are configured specifically for each application in both length and damping tune.
Like all ICON'S Shock Absorbers, V.
S.
2.
5 Aluminum Series shocks are fully rebuildable and re-tunable.
For piggyback and specific remote reservoir applications, ICON'S unique use of a 6061-billet aluminum manifold a few inches below the top cap of the shock creates an internal Bump Zone that when used creates an additional 20% of damping force.
This additional force helps prevent harsh bottom outs and controls the suspension when compressing at high velocity.
If you are looking for a more user defined tune, consider looking into the Compression Damping Control Valve (CDCV) shocks.
ICON’s internal “Bump Zone” increases damping by 20% to provide more control as the shock approaches full compression
Remote reservoir design improves heat dissipation to reduce shock fade during prolonged use
One-piece, hard anodized, impact extruded aluminum cylinders offer excellent corrosion resistance and consistent finish
Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
Nitrogen charged monotube design with piggyback reservoir
One-piece digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
All ICON 2.
5 Series Piggyback and Remote Reservoir shocks can be upgraded to ICON’s Compression Damping Control Valve (CDCV)
7/8” diameter induction hardened, chrome plated shock shaft
PTFE lined spherical bearings and application specific mounting hardware
6061 aircraft grade aluminum CNC machined components
Fully rebuildable and re-tunable
ICON 2022-2025 Toyota Tundra 0-1.
5” Lift/2023-2025 Sequoia 0-4" Lift, Rear, V.
S.
2.
5 Aluminum Series Shock Absorbers, Remote Reservoir, Pair, 57840P
ICON 2022-2025 Toyota Tundra 0-1.
5” Lift/2023-2025 Sequoia 0-4" Lift, Rear, V.
S.
2.
5 Aluminum Series Shock Absorbers, Remote Reservoir, Pair
ICON 22-25 TUNDRA 0-1.
5"/23-25 SEQUOIA 0-4" REAR 2.
5 VS RR PAIR.

Detailed Fitment Results
Year Make Model Submodel 2022 Toyota Tundra SR 2022 Toyota Tundra SR5 2022 Toyota Tundra Limited 2022 Toyota Tundra Platinum 2022 Toyota Tundra 1794 Edition 2022 Toyota Tundra TRD Pro 2022 Toyota Tundra SR TRD Off-Road 2022 Toyota Tundra SR5 TRD Off-Road 2022 Toyota Tundra Limited TRD Off-Road 2022 Toyota Tundra Platinum 1794 Edition 2023 Toyota Tundra SR 2023 Toyota Tundra SR5 2023 Toyota Tundra Limited 2023 Toyota Tundra Platinum 2023 Toyota Tundra 1794 Edition 2023 Toyota Tundra TRD Pro 2023 Toyota Sequoia SR5 2023 Toyota Sequoia Limited 2023 Toyota Sequoia Capstone 2023 Toyota Sequoia TRD Pro 2023 Toyota Sequoia Platinum 2023 Toyota Sequoia TRD Off-Road 2024 Toyota Tundra SR 2024 Toyota Tundra SR5 2024 Toyota Tundra Limited 2024 Toyota Tundra Platinum 2024 Toyota Tundra 1794 Edition 2024 Toyota Tundra TRD Pro 2024 Toyota Sequoia SR5 2024 Toyota Sequoia Limited 2024 Toyota Sequoia Capstone 2024 Toyota Sequoia TRD Pro 2024 Toyota Sequoia Platinum 2025 Toyota Tundra SR 2025 Toyota Tundra SR5 2025 Toyota Tundra Limited 2025 Toyota Tundra Platinum 2025 Toyota Tundra 1794 Edition 2025 Toyota Tundra TRD Pro 2025 Toyota Tundra TRD Off-Road 2025 Toyota Sequoia SR5 2025 Toyota Sequoia Limited 2025 Toyota Sequoia Capstone 2025 Toyota Sequoia TRD Pro 2025 Toyota Sequoia Platinum 2025 Toyota Sequoia 1794 Edition
