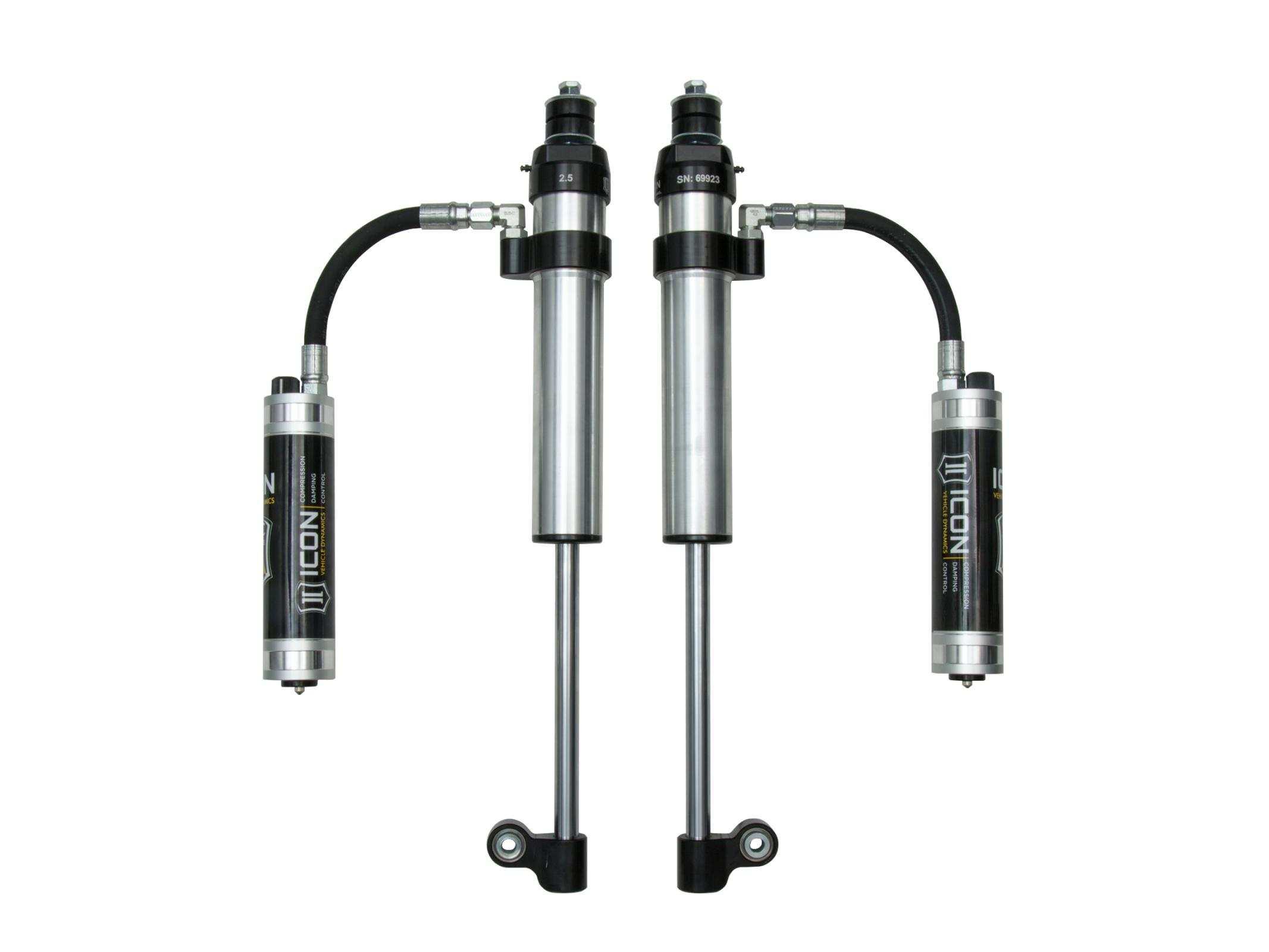

05-23 Toyota Tacoma (4WD) Suspension Shock Absorber Set - ICON Vehicle Dynamics - 57826CP

SHOCK ABSORBER PAIR
57826CP
TECH NOTE: ICON Multi-Rate Leaf Springs Part # 158505 (QTY of 2) required for installation
TECH NOTE: Compatible with 0-2.
625" of rear lift provided by ICON Multi-Rate Leaf Springs
TECH NOTE: Not compatible with 2005-2015 2WD 5-Lug Toyota Tacoma models
05-23 TACOMA RXT REAR 2.
5 RR CDCV PAIR
ICON 2.
5 Aluminum Series shocks are designed for outstanding performance off-road and a smooth ride on the street.
With vehicle-specific design, these shocks are configured specifically for each application in both length and damping tune.
ICON’s 2.
5 Aluminum Series shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street.
With a truly vehicle-specific design, these shocks are configured specifically for each application in both length and damping tune.
Featuring one-piece impact extruded aluminum cylinders, these 2.
5 Aluminum Series shocks offer lighter weight, improved corrosion resistance, and a more uniform finish than traditional plated steel cylinders.
Like all ICON shock absorbers, these 2.
5 Aluminum Series shocks are 100% rebuildable and 100% revalveable.
For piggyback and specific remote reservoir applications, ICON’s unique use of a 6061 billet aluminum manifold a few inches below the top cap of the shock creates an internal “Bump Zone” that when used creates an additional 20% of damping force.
This additional force helps prevent harsh bottom-out conditions and controls the suspension effectively when compressing at high velocity.
The ICON CDC Valve is an externally adjustable valve that restricts oil flow into the reservoir which creates 10 levels of compression damping force ranges.
If you are looking for a more user defined tune, consider looking into the Omega Series bypass shocks.
PTFE lined spherical bearings and application specific mounting hardware
Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
Remote reservoir design improves heat dissipation to reduce shock fade during prolonged use
ICON's CDC Valve technology allows for 10 levels of high-resolution compression adjustability with the turn of a knob
Nitrogen charged monotube design with remote reservoir
One-piece impact extruded aluminum cylinders offer excellent corrosion resistance and consistent finish
ICON’s internal “Bump Zone” increases damping by 20% to provide more control as the shock approaches full compression
One piece digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
7/8” diameter induction hardened, chrome plated shock shaft
6061 aircraft grade aluminum CNC machined components
Double-sealed Schrader caps reduce risk of damage
100% Rebuildable
100% Revalveable
ICON 2005-2023 Toyota Tacoma, Rear, 2.
5 RXT Remote Reservoir w/ CDCV Shocks, Pair, 57826CP
ICON 2005-2023 Toyota Tacoma, Rear, 2.
5 RXT Remote Reservoir w/ CDCV Shocks, Pair
ICON 05-23 TACOMA RXT REAR 2.
5 RR CDCV PAIR.

Detailed Fitment Results
Year Make Model Submodel 2005 Toyota Tacoma Base 2005 Toyota Tacoma Pre Runner 2006 Toyota Tacoma Base 2006 Toyota Tacoma Pre Runner 2006 Toyota Tacoma TRD Sport Prerunner 2006 Toyota Tacoma SR5 Prerunner 2006 Toyota Tacoma Base Prerunner 2007 Toyota Tacoma Base 2007 Toyota Tacoma Pre Runner 2007 Toyota Tacoma TRD Sport Prerunner 2007 Toyota Tacoma SR5 Prerunner 2008 Toyota Tacoma Base 2008 Toyota Tacoma Pre Runner 2008 Toyota Tacoma TRD Sport Prerunner 2008 Toyota Tacoma SR5 Prerunner 2009 Toyota Tacoma Base 2009 Toyota Tacoma Pre Runner 2009 Toyota Tacoma TRD Sport Prerunner 2009 Toyota Tacoma SR5 Prerunner 2010 Toyota Tacoma Base 2010 Toyota Tacoma Pre Runner 2010 Toyota Tacoma TRD Sport 2011 Toyota Tacoma Base 2011 Toyota Tacoma Pre Runner 2011 Toyota Tacoma TRD Sport 2012 Toyota Tacoma Base 2012 Toyota Tacoma Pre Runner 2012 Toyota Tacoma TRD Sport 2013 Toyota Tacoma Base 2013 Toyota Tacoma Pre Runner 2013 Toyota Tacoma TRD Sport 2014 Toyota Tacoma Base 2014 Toyota Tacoma Pre Runner 2014 Toyota Tacoma TRD Sport 2015 Toyota Tacoma Base 2015 Toyota Tacoma Pre Runner 2015 Toyota Tacoma TRD Sport 2015 Toyota Tacoma TRD Pro 2016 Toyota Tacoma TRD Sport 2016 Toyota Tacoma SR5 2016 Toyota Tacoma Limited 2016 Toyota Tacoma SR 2016 Toyota Tacoma Edicion Especial 2016 Toyota Tacoma TRD Off-Road 2017 Toyota Tacoma TRD Sport 2017 Toyota Tacoma TRD Pro 2017 Toyota Tacoma SR5 2017 Toyota Tacoma Limited 2017 Toyota Tacoma SR 2017 Toyota Tacoma Edicion Especial 2017 Toyota Tacoma TRD Off-Road 2017 Toyota Tacoma Sport 2018 Toyota Tacoma TRD Sport 2018 Toyota Tacoma TRD Pro 2018 Toyota Tacoma SR5 2018 Toyota Tacoma Limited 2018 Toyota Tacoma SR 2018 Toyota Tacoma Edicion Especial 2018 Toyota Tacoma TRD Off-Road 2018 Toyota Tacoma Sport 2019 Toyota Tacoma TRD Sport 2019 Toyota Tacoma TRD Pro 2019 Toyota Tacoma SR5 2019 Toyota Tacoma Limited 2019 Toyota Tacoma SR 2019 Toyota Tacoma Edicion Especial 2019 Toyota Tacoma TRD Off-Road 2019 Toyota Tacoma Sport 2020 Toyota Tacoma TRD Sport 2020 Toyota Tacoma TRD Pro 2020 Toyota Tacoma SR5 2020 Toyota Tacoma Limited 2020 Toyota Tacoma SR 2020 Toyota Tacoma Edicion Especial 2020 Toyota Tacoma TRD Off-Road 2020 Toyota Tacoma Sport 2021 Toyota Tacoma TRD Sport 2021 Toyota Tacoma TRD Pro 2021 Toyota Tacoma SR5 2021 Toyota Tacoma Limited 2021 Toyota Tacoma SR 2021 Toyota Tacoma Edicion Especial 2021 Toyota Tacoma TRD Off-Road 2021 Toyota Tacoma Sport 2021 Toyota Tacoma Nightshade 2021 Toyota Tacoma Trail 2022 Toyota Tacoma TRD Sport 2022 Toyota Tacoma TRD Pro 2022 Toyota Tacoma SR5 2022 Toyota Tacoma Limited 2022 Toyota Tacoma SR 2022 Toyota Tacoma Edicion Especial 2022 Toyota Tacoma TRD Off-Road 2022 Toyota Tacoma Sport 2022 Toyota Tacoma Nightshade 2022 Toyota Tacoma Trail 2022 Toyota Tacoma Base 2023 Toyota Tacoma TRD Sport 2023 Toyota Tacoma TRD Pro 2023 Toyota Tacoma SR5 2023 Toyota Tacoma Limited 2023 Toyota Tacoma SR 2023 Toyota Tacoma Edicion Especial 2023 Toyota Taco…
