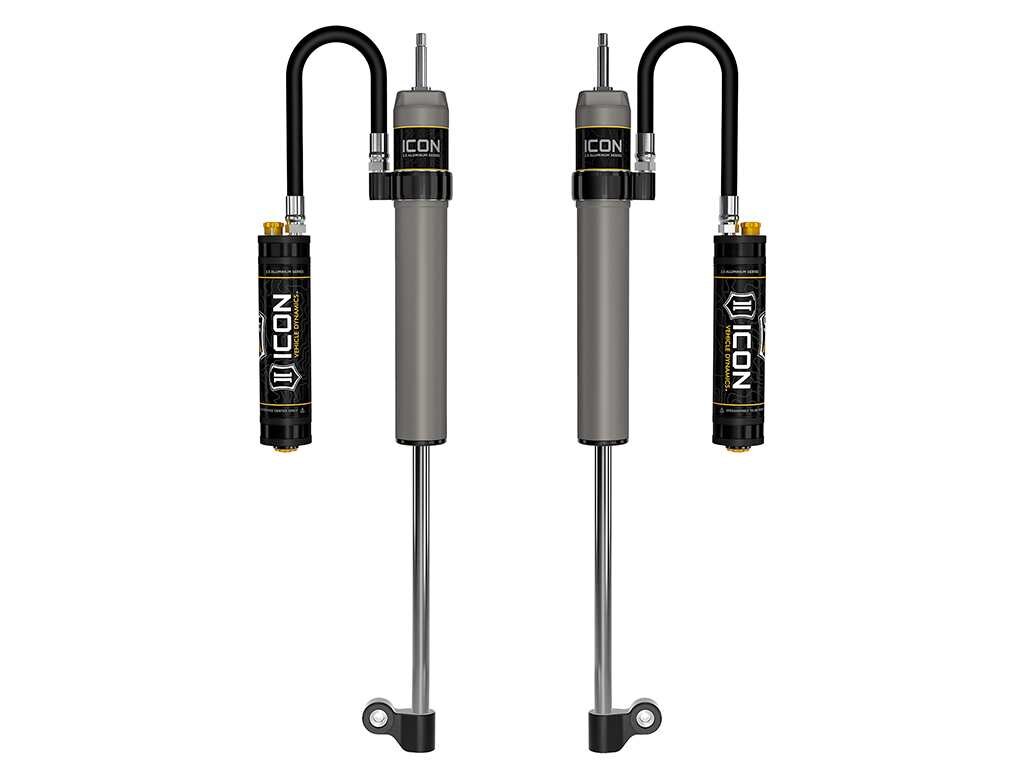

07-21 Toyota Tundra Suspension Shock Absorber Set - Rear - ICON Vehicle Dynamics - 57823CP

SHOCK ABSORBERS
07-21 TUNDRA RXT REAR CDCV
ICON Multi-Rate Leaf Springs Part # 158509 required for installation
07-21 TUNDRA RXT REAR 2.
5 VS RR CDCV PAIR
2007-2021 TOYOTA TUNDRA RXT REAR 2.
5 VS REMORE RESERVOIR WITH CDCV SHOCK PAIR
ICON’s 2.
5 Aluminum Series shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street.
With a truly vehicle-specific design, these shocks are configured specifically for each application in both length and damping tune.
Featuring one-piece impact extruded aluminum cylinders, these 2.
5 Aluminum Series shocks offer lighter weight, improved corrosion resistance, and a more uniform finish than traditional plated steel cylinders.
Like all ICON shock absorbers, these 2.
5 Aluminum Series shocks are 100% rebuildable and 100% revalveable.
For piggyback and specific remote reservoir applications, ICON’s unique use of a 6061 billet aluminum manifold a few inches below the top cap of the shock creates an internal “Bump Zone” that when used creates an additional 20% of damping force.
This additional force helps prevent harsh bottom-out conditions and controls the suspension effectively when compressing at high velocity.
The ICON CDC Valve is an externally adjustable valve that restricts oil flow into the reservoir which creates 10 levels of compression damping force ranges.
If you are looking for a more user defined tune, consider looking into the Omega Series bypass shocks.
6061 aircraft grade aluminum CNC machined components
ICON's CDC Valve technology allows for 10 levels of high-resolution compression adjustability with the turn of a knob
Nitrogen charged monotube design with piggyback reservoir
One-piece impact extruded aluminum cylinders offer excellent corrosion resistance and consistent finish
ICON’s internal “Bump Zone” increases damping by 20% to provide more control as the shock approaches full compression
One piece digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
7/8” diameter induction hardened, chrome plated shock shaft
100% Rebuildable
Remote reservoir design improves heat dissipation to reduce shock fade during prolonged use
Double-sealed Schrader caps reduce risk of damage
PTFE lined spherical bearings and application specific mounting hardware
100% Revalveable
Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
ICON 2007-21 Toyota Tundra, Rear, RXT 2.
5 VS RR/CDCV Shocks, Pair, 57823CP
ICON 2007-21 Toyota Tundra, Rear, RXT 2.
5 VS Remote Reservoir/CDCV Shocks, Pair.

Detailed Fitment Results
Year Make Model 2007 Toyota Tundra 2008 Toyota Tundra 2009 Toyota Tundra 2010 Toyota Tundra 2011 Toyota Tundra 2012 Toyota Tundra 2013 Toyota Tundra 2014 Toyota Tundra 2015 Toyota Tundra 2016 Toyota Tundra 2017 Toyota Tundra 2018 Toyota Tundra 2019 Toyota Tundra 2020 Toyota Tundra 2021 Toyota Tundra
