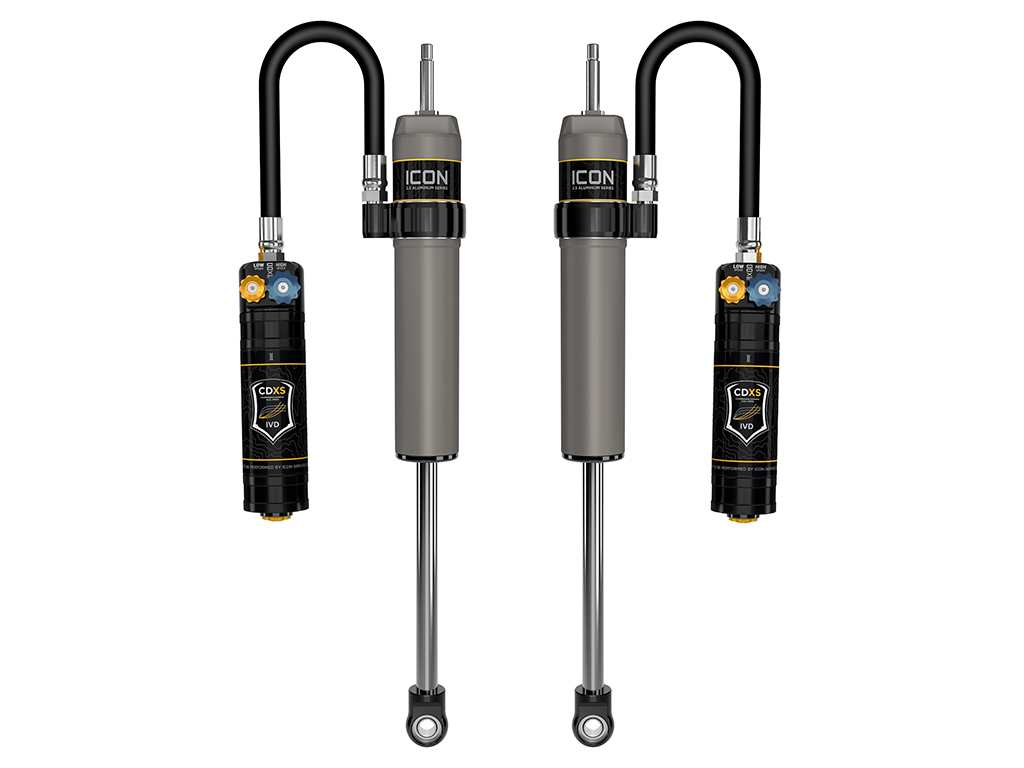

24-25 Toyota Tacoma (Coil) Suspension Shock Absorber Set - ICON Vehicle Dynamics - 57808XP

SHOCK ABSORBER PAIR
57808XP
APPLICATION NOTE #55: Shocks Are Fully Serviceable.
Lift Heights Indicated Are For A Stock Equipped Vehicle.
APPLICATION NOTE #153: Not compatible with Adaptive Variable Suspension (AVS) equipped vehicles
APPLICATION NOTE #164: Will not fit Tacoma submodels equipped with rear leaf springs
TECH NOTE: Compatible with 0-1” of rear lift over stock
24-25 TACOMA 0-1" REAR 2.
5 VS RR CDXS PAIR
ICON VS 2.
5 Aluminum Series shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street.
They feature remote reservoirs and are 100% rebuildable/revalveable.
ICON Vehicle Specific (V.
S.
) 2.
5 Aluminum Series shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street.
These shocks are configured specifically for each application in both length and damping tune.
Like all ICON'S Shock Absorbers, V.
S.
2.
5 Aluminum Series shocks are fully rebuildable and re-tunable.
For piggyback and specific remote reservoir applications, ICON'S unique use of a 6061-billet aluminum manifold a few inches below the top cap of the shock creates an internal Bump Zone that when used creates an additional 20% of damping force.
This additional force helps prevent harsh bottom outs and controls the suspension when compressing at high velocity.
ICON's exclusive Compression Damping Dual Speed (CDXS) valves are included for precisely dialing in your suspension performance.
CDXS controls fluid flow under compression, with independent adjustability of high speed and low speed compression force.
10 discreet detented settings for both low and high-speed adjustment knobs allow separate adjustments for handling response and overall aggressiveness.
ICON’s internal “Bump Zone” increases damping by 20% to provide more control as the shock approaches full compression
Remote reservoir design improves heat dissipation to reduce shock fade during prolonged use
One-piece, hard anodized, impact extruded aluminum cylinders offer excellent corrosion resistance and consistent finish
Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
Nitrogen charged monotube design with remote reservoir
ICON CDXS equipped for independent adjustability of high speed and low speed compression force for handling response and aggressiveness
One-piece digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
7/8” diameter induction hardened, chrome plated shock shaft
Rubber dust boot included for added shaft protection
PTFE lined spherical bearings and application specific mounting hardware
6061 aircraft grade aluminum CNC machined components
Fully rebuildable and re-tunable
ICON 2024-2025 Toyota Tacoma, 0-1” Lift, Rear, V.
S.
2.
5 Aluminum Series Shock Absorbers, Remote Reservoir w/ CDXS, Pair, 57808XP
ICON 2024-2025 Toyota Tacoma, 0-1” Lift, Rear, V.
S.
2.
5 Aluminum Series Shock Absorbers, Remote Reservoir w/ CDXS, Pair
ICON 24-25 TACOMA 0-1" REAR 2.
5 VS RR CDXS PAIR.

Detailed Fitment Results
Year Make Model Submodel 2024 Toyota Tacoma SR5 2024 Toyota Tacoma TRD Off-Road 2024 Toyota Tacoma TRD Sport 2024 Toyota Tacoma Limited 2025 Toyota Tacoma SR5 2025 Toyota Tacoma TRD Off-Road 2025 Toyota Tacoma TRD Sport 2025 Toyota Tacoma TRD Sport Premium
