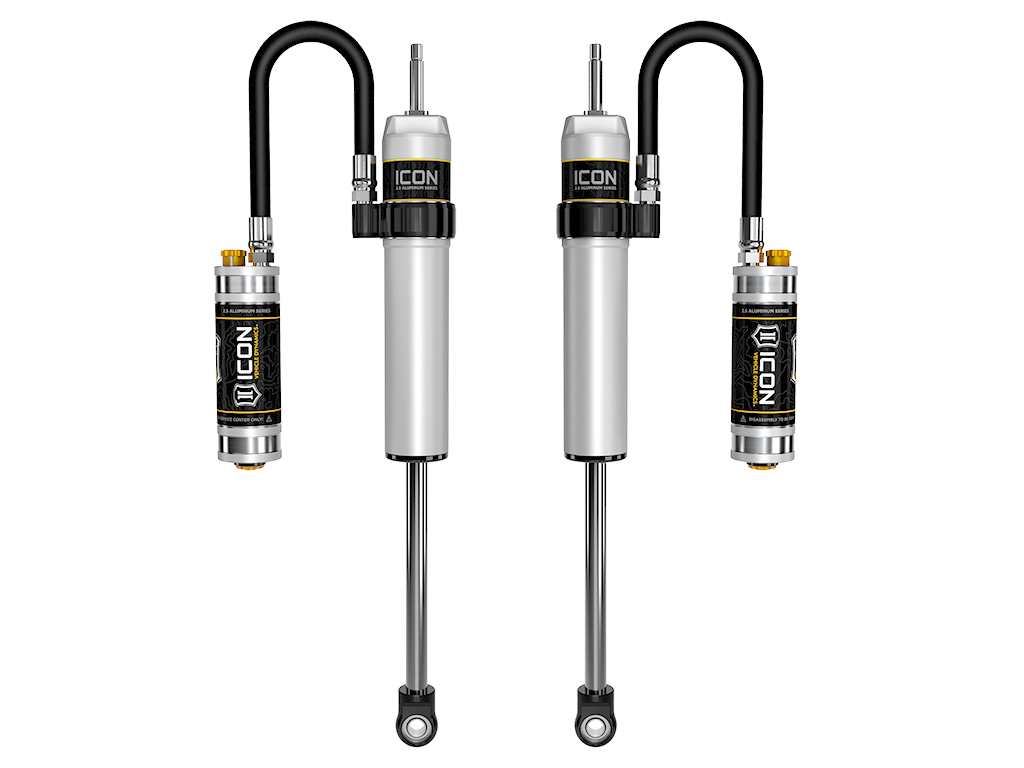

91-97 Toyota Land Cruiser Suspension Shock Absorber Set - Front - ICON Vehicle Dynamics - 57803CP

FRNT SHOCK ABSORBERS
91-97 LC 80 4-6 FRONT 2.
5 RR CDC PAIR
91-97 LAND CRUISER 80 4-6" FRONT 2.
5 VS RR CDCV PAIR
1991-1997 LAND CRUISER 80 SERIES 4-6" LIFT FRONT 2.
5 VS REMOTE RESERVOIR CDCV SHOCK PAIR
ICON Vehicle Specific (V.
S.
) 2.
5 Aluminum Series shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street.
These shocks are configured specifically for each application in both length and damping tune.
Like all ICON'S Shock Absorbers, V.
S.
2.
5 Aluminum Series shocks are 100% rebuildable and 100% revalveable.
For piggyback and specific remote reservoir applications, ICON'S unique use of a 6061 billet aluminum manifold a few inches below the top cap of the shock creates an internal Bump Zone that when used creates an additional 20% of damping force.
This additional force helps prevent harsh bottom outs and controls the suspension when compressing at high velocity.
The ICON CDC Valve is an externally adjustable valve that restricts oil flow into the reservoir which creates 10 levels of compression damping force ranges.
Remote reservoir design improves heat dissipation to reduce shock fade during prolonged use
6061 aircraft grade aluminum CNC machined components
ICON’s internal “Bump Zone” increases damping by 20% to provide more control as the shock approaches full compression
PTFE lined spherical bearings and application specific mounting hardware
ICON's CDC Valve technology allows for 10 levels of high-resolution compression adjustability with the turn of a knob
One piece digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
7/8” diameter induction hardened, chrome plated shock shaft
Nitrogen charged monotube design with piggyback reservoir
Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
One-piece impact extruded aluminum cylinders offer excellent corrosion resistance and consistent finish
100% Rebuildable
100% Revalveable
ICON 1991-97 Toyota Land Cruiser, 4-6” Lift, Front, 2.
5 VS RR/CDCV Shocks, Pair, 57803CP
ICON 1991-97 Toyota Land Cruiser, 4-6” Lift, Front, 2.
5 VS RR/CDCV Shocks, Pair.

Detailed Fitment Results
Year Make Model 1991 Toyota Land Cruiser 1992 Toyota Land Cruiser 1993 Toyota Land Cruiser 1994 Toyota Land Cruiser 1995 Toyota Land Cruiser 1996 Toyota Land Cruiser 1997 Toyota Land Cruiser
