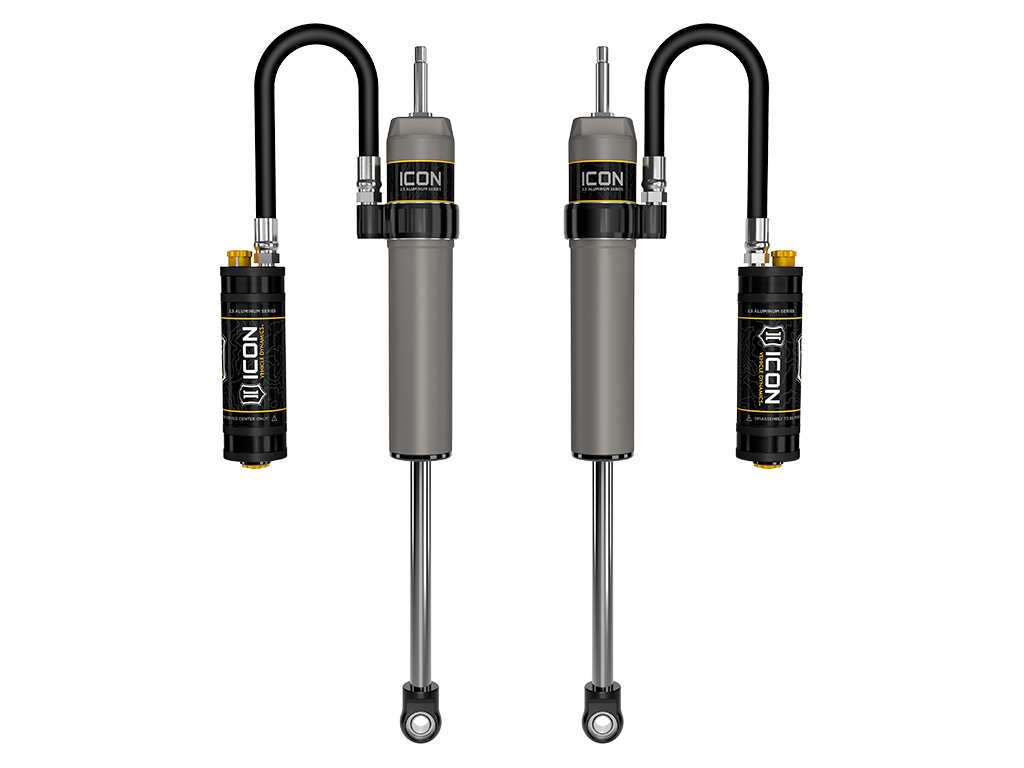

96-02 Toyota 4Runner Suspension Shock Absorber Set - ICON Vehicle Dynamics - 57800CP

SHOCK ABSORBER PAIR
57800CP
APPLICATION NOTE #55: Shocks are fully serviceable.
Coilover heights indicated are for a stock equipped vehicle
TECH NOTE: Compatible with 0-2" of rear lift over stock
96-02 4RUNNER REAR 2.
5 VS CDCV RR PAIR
ICON VS 2.
5 Aluminum Series shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street.
They feature remote reservoirs and are 100% rebuildable/revalveable.
ICON Vehicle Specific (V.
S.
) 2.
5 Aluminum Series shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street.
These shocks are configured specifically for each application in both length and damping tune.
Like all ICON'S Shock Absorbers, V.
S.
2.
5 Aluminum Series shocks are 100% rebuildable and 100% revalveable.
For piggyback and specific remote reservoir applications, ICON'S unique use of a 6061 billet aluminum manifold a few inches below the top cap of the shock creates an internal Bump Zone that when used creates an additional 20% of damping force.
This additional force helps prevent harsh bottom outs and controls the suspension when compressing at high velocity.
The ICON CDC Valve is an externally adjustable valve that restricts oil flow into the reservoir which creates 10 levels of compression damping force ranges.
ICON's CDC Valve technology allows for 10 levels of high-resolution compression adjustability with the turn of a knob
ICON’s internal “Bump Zone” increases damping by 20% to provide more control as the shock approaches full compression
Remote reservoir design improves heat dissipation to reduce shock fade during prolonged use
Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
Nitrogen charged monotube design with piggyback reservoir
One piece digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
PTFE lined spherical bearings and application specific mounting hardware
7/8” diameter induction hardened, chrome plated shock shaft
6061 aircraft grade aluminum CNC machined components
One-piece impact extruded aluminum cylinders offer excellent corrosion resistance and consistent finish
100% Rebuildable
100% Revalveable
ICON 1996-2002 Toyota 4Runner, 0-2" Lift, Rear, V.
S.
2.
5 Aluminum Series Shock Absorbers, Remote Reservoir w/ CDCV, Pair, 57800CP
ICON 1996-2002 Toyota 4Runner, 0-2" Lift, Rear, V.
S.
2.
5 Aluminum Series Shock Absorbers, Remote Reservoir w/ CDCV, Pair
ICON 96-02 4RUNNER REAR 2.
5 VS CDCV RR PAIR.

Detailed Fitment Results
Year Make Model 1996 Toyota 4Runner 1997 Toyota 4Runner 1998 Toyota 4Runner 1999 Toyota 4Runner 2000 Toyota 4Runner 2001 Toyota 4Runner 2002 Toyota 4Runner
