00-06 Toyota Tundra Suspension Shock Absorber Set - Rear - ICON Vehicle Dynamics - 57716CP-CB

REAR SHOCK ABSORBERS
00-06 TUNDRA 6" REAR 2.
5 PB CDCV
00-06 TUNDRA 6" REAR 2.
5 VS PB CDCV PAIR
2000-2006 TUNDRA 6" LIFT REAR 2.
5 VS PIGGYBACK CDCV SHOCK PAIR
ICON Vehicle Specific (V.
S.
) 2.
5 Series shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street.
These shocks are configured specifically for each application in both length and damping tune.
Like all ICON'S Shock Absorbers, V.
S.
2.
5 Series shocks are 100% rebuildable and 100% revalveable.
For piggyback and specific remote reservoir applications, ICON'S unique use of a 6061 billet aluminum manifold a few inches below the top cap of the shock creates an internal Bump Zone that when used creates an additional 20% of damping force.
This additional force helps prevent harsh bottom outs and controls the suspension when compressing at high velocity.
The ICON CDC Valve is an externally adjustable valve that restricts oil flow into the reservoir which creates 10 levels of compression damping force ranges.
If you are looking for a more user defined tune, consider looking into the Omega Seriesbypass shocks.
Remote reservoir design improves heat dissipation to reduce shock fade during prolonged use
6061 aircraft grade aluminum CNC machined components
ICON’s internal “Bump Zone” increases damping by 20% to provide more control as the shock approaches full compression
PTFE lined spherical bearings and application specific mounting hardware
ICON's CDC Valve technology allows for 10 levels of high-resolution compression adjustability with the turn of a knob
7/8” diameter induction hardened, chrome plated shock shaft
One piece digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
100% Revalveable
Nitrogen charged monotube design with piggyback reservoir
100% Rebuildable
Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
CAD plated, precision machined 1026 DOM steel shock body for maximum durability and corrosion resistance

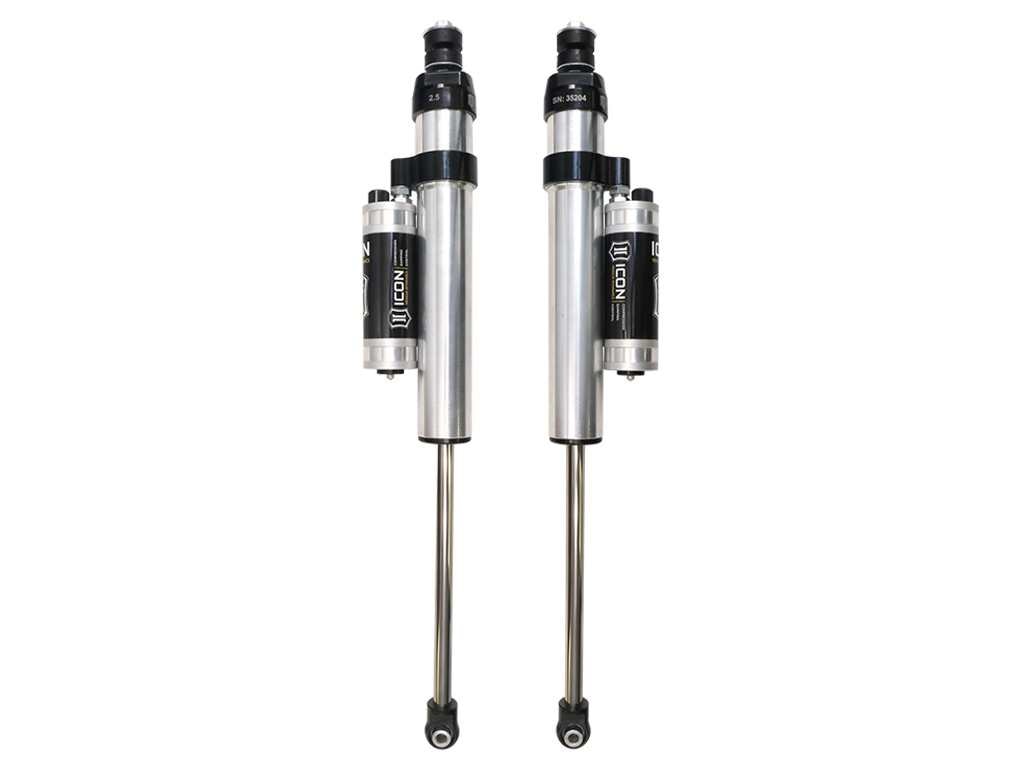

ICON 2000-06 Toyota Tundra, 6” Lift, Rear, 2.
5 VS Piggyback/CDCV Shocks, Pair, 57716CP-CB
ICON 2000-06 Toyota Tundra, 6” Lift, Rear, 2.
5 VS Piggyback/CDCV Shocks, Pair.

Detailed Fitment Results
Year Make Model 2000 Toyota Tundra 2001 Toyota Tundra 2002 Toyota Tundra 2003 Toyota Tundra 2004 Toyota Tundra 2005 Toyota Tundra 2006 Toyota Tundra
