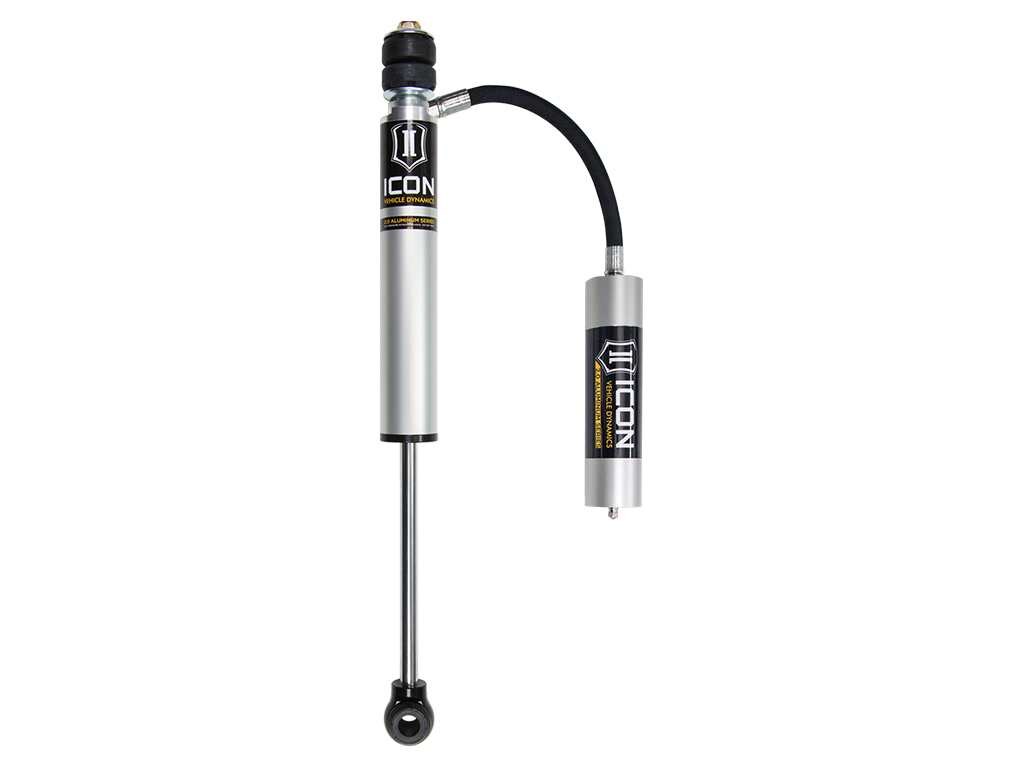

2025 Toyota 4Runner 0-3 Inch Lift Passenger Rear V.S. 2.0 Aluminum Series Shock Absorber Remote Reservoir - ICON Vehicle Dynamics - 56524R

ICON Vehicle Specific (V.S.) 2.0 Aluminum Series shock absorbers are the ultimate in cost effective upgrades, specifically tailored by ICON engineers for your application. The V.S. 2.0 Aluminum Series shocks are a high-quality upgrade for the everyday street driver and weekend warrior looking for improved on and off-road performance.

Remote reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade. Like all ICON shock absorbers, V.S. 2.0 Aluminum Series shocks are fully rebuildable and re-tunable.

For those using their vehicle in extreme off-road situations, consider the ICON V.S. 2.5 Aluminum Series shock to handle extra abuse and punishment your suspension will need to endure.

Features and Benefits:


Nitrogen charged monotube design with remote reservoir

One piece linear/digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road

5/8 Inch chrome plated hardened steel shaft resists corrosion and pits

6061 aluminum rod end, top cap, and internals ensure strength and durability

Polyurethane bushings, zinc plated sleeves, and forged steel mounting stems for OE factory type fitment

6063 anodized aluminum body and reservoir tubing for superb heat dissipation, excellent corrosion resistance, and high-tech appearance

Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range

Nitrile rubber top out bumper for noise free operation

Rubber dust boot included for added shaft protection

Fully rebuildable and re-tunable


Details


Color: Silver, Black, Gray

Material: Aluminum, Steel

Finish: Anodized

Active Or Passive Suspension: Passive

Adjustable: No

Adjustable Compression: No

Adjustable Damping: No

Adjustable Rebound: No

Adjustable Ride Height: No

Body Color: Gray

Body Diameter: 2 Inch

Body Material: Aluminum

Boot Color: Black

Boot Included: No

Bore Diameter: 1.75

Bushing Color: Black

Bushing Included: Yes

Bushing Material: Polyurethane, Rubber

Coil Spring InsulatorS Included: No

Cylinder Color: Gray

Cylinder Finish: Anodized

Cylinder Material: Aluminum

Cylinder Outside Diameter: 2.0

Damping Type: Oil

Dust Boot Included: Yes

Dust Shield: No

Dust Shield Included: Yes

Dust Shield Material: Rubber

External Reservoir: No

Gas Charged: Yes

Grade Type: Performance

Hydraulic Lockout: No

Includes Bump Stop: No

Internal Construction Type: Single Tube

Internal Rebound Bumper: Yes

Internal Rebound Spring: No

Lower Mount Sleeve Inside Diameter: 0.75

Lower Mount Sleeve Overall Length: 1.825

Lower Mount Type: Eyelet

Maximum Ride Height Raising Distance: 3.0

Minimum Ride Height Raising Distance: 0.0

Mounting Hardware Included: No

Remote Reservoir: Yes

Reservoir Diameter: 2.0

Reservoir Hose Inside Diameter: 0.25

Reservoir Hose Length: 29.0

Reservoir Length: 8.0

Reservoir Type: Remote

Rod Diameter: 0.625

Self Leveling: No

Service Parts: 202003 - 2.0 Remote Resi Rebuild Kit

Shaft Diameter: 0.625

Shaft Material: Chrome

Shock Absorber Body End Measuring Point: Shoulder Of Stem

Shock Absorber Bore Size: 1.75

Shock Absorber Rod End Measuring Point: Center Of Eyelet

Suspension Type: Spring

Upper Mount Type: Stem

Valving Type: Digressive, Linear

Add On Part: 56523R - 25 4Runner 0-3 Inch Driver Rear 2.0 Vs Rr, 252012 - -4 To -10 Hose Shield Kit, 52753 - 25 4Runner .75 Inch Dual Rate Rear Spring Kit, 56100 - 07-14 FJ Cruiser 03-24 4Runner/22-24 Tundra/23-24 Sequoia Rear Shin Guards



Detailed Fitment Results
Year Make Model Engine Fuel 2025 Toyota 4Runner 2.4L FULL HYBRID EV-GAS (FHEV) 2025 Toyota 4Runner 2.4L GAS
