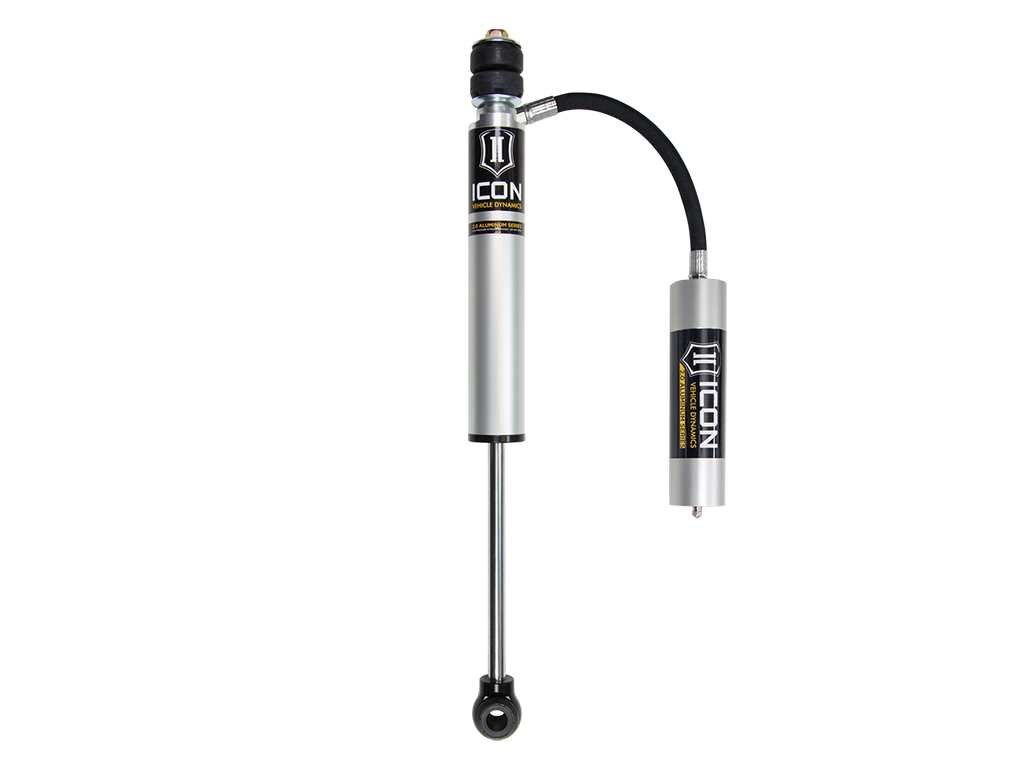

22-24 Toyota Tundra (Coil) Suspension Shock Absorber - ICON Vehicle Dynamics - 56517R

SHOCK ABSORBER
56517R
APPLICATION NOTE #55: Shocks Are Fully Serviceable.
Lift Heights Indicated Are For A Stock Equipped Vehicle.
APPLICATION NOTE #142: Not compatible with vehicles equipped with Load-Leveling Rear Height Control Air Suspension.
APPLICATION NOTE #153: Not compatible with Adaptive Variable Suspension (AVS) equipped vehicles.
TECH NOTE: Compatible with 3-3.
5” of rear lift on non-TRD Tundras or 3" rear lift on TRD Tundras equipped with rear coil springs
22-24 TUNDRA 3.
5" REAR 2.
0 VS RR
ICON VS 2.
0 Aluminum Series shocks are a high-quality upgrade for the everyday street driver and weekend warrior looking for improved on and off-road performance.
Shocks are vehicle specific, 100% rebuildable, and 100% revalveable.
ICON Vehicle Specific (V.
S.
) 2.
0 Aluminum Series shock absorbers are the ultimate in cost effective upgrades, specifically tailored by ICON engineers for your application.
The V.
S.
2.
0 Aluminum Series shocks are a high-quality upgrade for the everyday street driver and weekend warrior looking for improved on and off-road performance.
Like all ICON shock absorbers, V.
S.
2.
0 Aluminum Series shocks are fully rebuildable and re-tunable.
Remote reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade.
For those using their vehicle in extreme off-road situations, consider the ICON V.
S.
2.
5 Series shock to handle extra abuse and punishment your suspension will need to endure.
Nitrogen charged monotube design with remote reservoir
One piece linear/digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
5/8” chrome plated hardened steel shaft resists corrosion and pits
6061 aluminum rod end, top cap, and internals ensure strength and durability
Polyurethane bushings, zinc plated sleeves, and forged steel mounting stems for OE factory type fitment
6063 anodized aluminum body and reservoir tubing for superb heat dissipation, excellent corrosion resistance, and high-tech appearance
Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
Nitrile rubber top out bumper for noise free operation
Fully rebuildable and re-tunable
ICON 2022-2024 Toyota Tundra, 3-3.
5" Lift, Rear, V.
S.
2.
0 Aluminum Series Shock Absorber, Remote Reservoir, 56517R
ICON 2022-2024 Toyota Tundra, 3-3.
5" Lift, Rear, V.
S.
2.
0 Aluminum Series Shock Absorber, Remote Reservoir
ICON 22-24 TUNDRA 3.
5" REAR 2.
0 VS RR.

Detailed Fitment Results
Year Make Model Submodel 2022 Toyota Tundra SR5 2022 Toyota Tundra 1794 Edition 2022 Toyota Tundra SR 2022 Toyota Tundra TRD Pro 2022 Toyota Tundra Limited 2022 Toyota Tundra Platinum 2022 Toyota Tundra Limited TRD Off-Road 2022 Toyota Tundra SR TRD Off-Road 2022 Toyota Tundra SR5 TRD Off-Road 2022 Toyota Tundra Platinum 1794 Edition 2023 Toyota Tundra SR5 2023 Toyota Tundra 1794 Edition 2023 Toyota Tundra SR 2023 Toyota Tundra TRD Pro 2023 Toyota Tundra Limited 2023 Toyota Tundra Platinum 2024 Toyota Tundra SR5 2024 Toyota Tundra 1794 Edition 2024 Toyota Tundra SR 2024 Toyota Tundra TRD Pro 2024 Toyota Tundra Platinum
