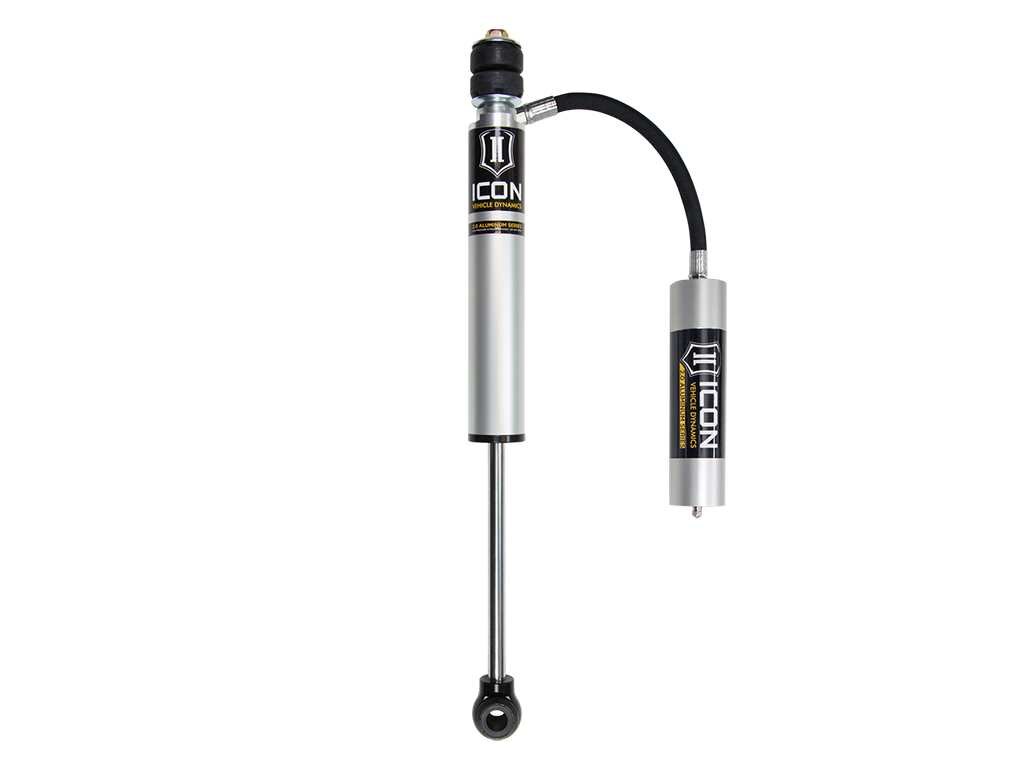

Toyota (4WD/RWD - Coil/Air) Suspension Shock Absorber - ICON Vehicle Dynamics - 56516R

SHOCK ABSORBER
56516R
APPLICATION NOTE #153: Not compatible with Adaptive Variable Suspension (AVS) equipped vehicles
TECH NOTE: Compatible with 0-1.
5” of rear lift on non-TRD Tundras or 0-1" lift on TRD Tundras equipped with rear coil springs
TECH NOTE: Compatible with 0-3.
5” of rear lift on Tundras equipped with rear OE Load-leveling Rear Height Control Air Suspension
TECH NOTE: Compatible with 0-4” of rear lift on non-TRD Sequoias or 0-2" lift on TRD Sequoias
22-25 TUNDRA 0-1.
5"/23-25 SEQUOIA 0-4" REAR 2.
0 VS RR
ICON VS 2.
0 Aluminum Series shocks are a high-quality upgrade for the everyday street driver and weekend warrior looking for improved on and off-road performance.
Shocks are vehicle specific, 100% rebuildable, and 100% revalveable.
ICON Vehicle Specific (V.
S.
) 2.
0 Aluminum Series shock absorbers are the ultimate in cost effective upgrades, specifically tailored by ICON engineers for your application.
The V.
S.
2.
0 Aluminum Series shocks are a high-quality upgrade for the everyday street driver and weekend warrior looking for improved on and off-road performance.
Like all ICON shock absorbers, V.
S.
2.
0 Aluminum Series shocks are fully rebuildable and re-tunable.
For those using their vehicle in extreme off-road situations, consider the ICON V.
S.
2.
5 Series shock to handle extra abuse and punishment your suspension will need to endure.
Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
Nitrogen charged monotube design with remote reservoir
One piece linear/digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
5/8” chrome plated hardened steel shaft resists corrosion and pits
6061 aluminum rod end, top cap, and internals ensure strength and durability
Polyurethane bushings, zinc plated sleeves, and forged steel mounting stems for OE factory type fitment
6063 anodized aluminum body and reservoir tubing for superb heat dissipation, excellent corrosion resistance, and high-tech appearance
Nitrile rubber top out bumper for noise free operation
Fully rebuildable and re-tunable
ICON 2022-2025 Toyota Tundra, 0-1.
5" Lift/2023-2025 Sequoia, 0-4" Lift, Rear, V.
S.
2.
0 Aluminum Series Shock Absorber, Remote Reservoir, 56516R
ICON 2022-2025 Toyota Tundra, 0-1.
5" Lift/2023-2025 Sequoia, 0-4" Lift, Rear, V.
S.
2.
0 Aluminum Series Shock Absorber, Remote Reservoir
ICON 22-25 TUNDRA 0-1.
5"/23-25 SEQUOIA 0-4" REAR 2.
0 VS RR.

Detailed Fitment Results
Year Make Model Submodel 2022 Toyota Tundra Limited 2022 Toyota Tundra SR5 2022 Toyota Tundra 1794 Edition 2022 Toyota Tundra SR 2022 Toyota Tundra Platinum 2022 Toyota Tundra TRD Pro 2022 Toyota Tundra Limited TRD Off-Road 2022 Toyota Tundra SR TRD Off-Road 2022 Toyota Tundra SR5 TRD Off-Road 2022 Toyota Tundra Platinum 1794 Edition 2023 Toyota Tundra Limited 2023 Toyota Tundra SR5 2023 Toyota Tundra 1794 Edition 2023 Toyota Tundra SR 2023 Toyota Tundra Platinum 2023 Toyota Tundra TRD Pro 2023 Toyota Sequoia SR5 2023 Toyota Sequoia Limited 2023 Toyota Sequoia Platinum 2023 Toyota Sequoia Capstone 2023 Toyota Sequoia TRD Pro 2023 Toyota Sequoia TRD Off-Road 2024 Toyota Tundra Limited 2024 Toyota Tundra SR5 2024 Toyota Tundra 1794 Edition 2024 Toyota Tundra SR 2024 Toyota Tundra Platinum 2024 Toyota Tundra TRD Pro 2024 Toyota Sequoia SR5 2024 Toyota Sequoia Limited 2024 Toyota Sequoia Platinum 2024 Toyota Sequoia Capstone 2024 Toyota Sequoia TRD Pro 2025 Toyota Tundra Limited 2025 Toyota Tundra SR5 2025 Toyota Tundra 1794 Edition 2025 Toyota Tundra SR 2025 Toyota Tundra Platinum 2025 Toyota Tundra TRD Pro 2025 Toyota Sequoia SR5 2025 Toyota Sequoia Limited 2025 Toyota Sequoia Platinum 2025 Toyota Sequoia Capstone 2025 Toyota Sequoia TRD Pro 2025 Toyota Sequoia 1794 Edition
