22-24 Toyota Tundra (Coil) Suspension Bump Stop - ICON Vehicle Dynamics - 56115

BUMP STOP KIT
56115
OEM Wheels and Tires Fitment: Yes
TECH NOTE: Compatible with 3-5" of rear lift on models equipped with rear coil springs without TRD package.
TECH NOTE: Compatible with 3-4.
5" of rear lift on models equipped with rear coil springs with TRD package, or TRD Pro.
APPLICATION NOTE #142: Not compatible with vehicles equipped with Load-Leveling Rear Height Control Air Suspension.
TECH NOTE: Compatible with ICON 6" Lift Performance Suspension System.
For shorter lift height compatibility, use part number 56111.
22-24 TUNDRA 3.
5" REAR HYD BUMP STOP KIT
The ICON 2022-2024 Toyota Tundra Rear Hydraulic Bump Stop System was designed to take the off-road capability of the truck to new levels by significantly improving the bottom-out control of the rear suspension and reducing rear end kick.
While the factory rear bump stops do a satisfactory job of absorbing impacts on a street driven truck, ICON found that there was much room for improvement during spirited driving in rough, off-road terrain.
The ICON Vehicle Dynamics 2022-2024 Toyota Tundra Rear Hydraulic Bump Stop System was designed to take the off-road capability of the truck to new levels by significantly improving the bottom-out control of the rear suspension and reducing rear end kick.
Like all ICON hydraulic bumps stops, these feature both velocity and position sensitive technology which means that as the shaft speed increases and moves through the travel, the force increases exponentially to provide excellent bottoming resistance that won’t negatively affect articulation.
This hydraulic bump stop system was developed as an OEM replacement, making installation a simple and straightforward bolt-on affair.
With no major cutting, welding, or fabrication required you have the option to return the vehicle back to its stock form.
The factory rubber bump stops have a limited energy absorption capacity and a rapid release of this energy upon rebound - This translates into a harsh ride and poor handling in rough terrain.
ICON hydraulic bump stops absorb and release this energy in a much more controlled manner due to the digressive rebound piston valving, resulting in predictable handling and vehicle dynamics.
Direct bolt-in to OEM bump stop location makes for an easy and straightforward install
Fully reversible to factory configuration with no bed cutting required
2.
5” travel bump stop reduces rear end ‘kick’ and improves overall performance
Position and velocity sensitive technology exponentially increases bottom-out resistance
Vehicle specific bump stop tune to provide smooth engagement and best ride quality
Heavy duty 1 ¼” CNC machined nitro steel shaft
Multi stage CAD plated body for maximum corrosion resistance
Double sealed high pressure Schrader valve
Replaceable noise reducing striker pad
Fully serviceable

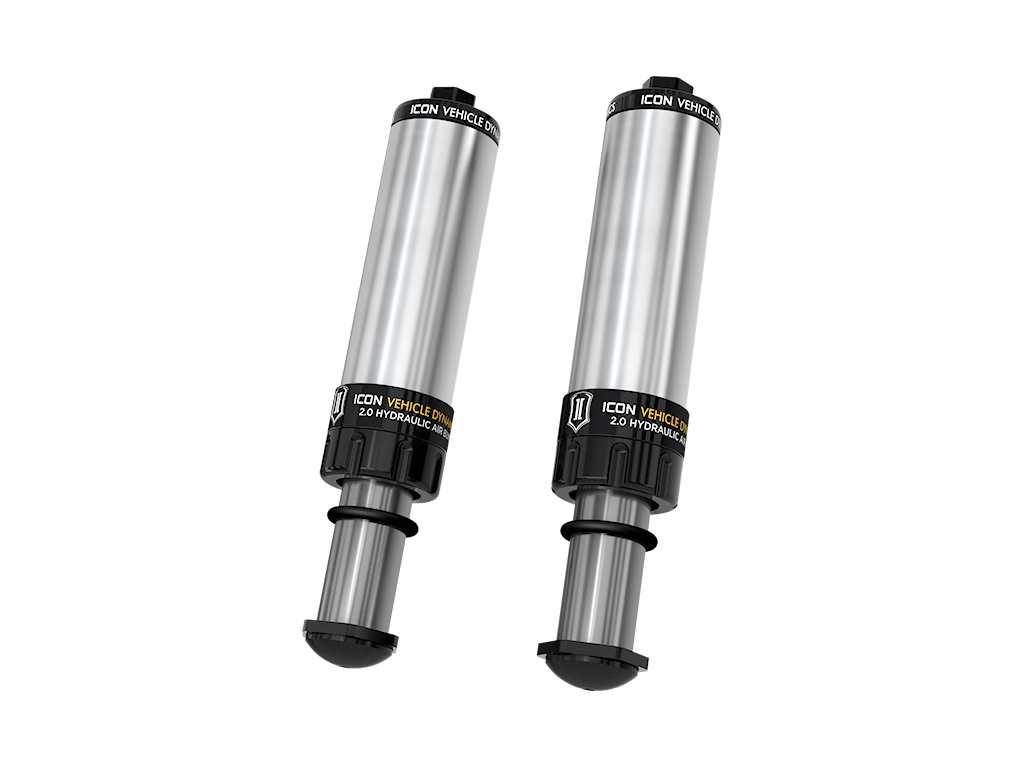

ICON 2022-2024 Toyota Tundra, Rear Hydraulic Bump Stop Kit, 3-5" Lift, 56115
ICON 2022-2024 Toyota Tundra, Rear Hydraulic Bump Stop Kit, 3-5" Lift
ICON 22-24 TUNDRA 3.
5" REAR HYD BUMP STOP KIT.

Detailed Fitment Results
Year Make Model Submodel 2022 Toyota Tundra Limited 2022 Toyota Tundra SR 2022 Toyota Tundra SR5 2022 Toyota Tundra TRD Pro 2022 Toyota Tundra Capstone 2022 Toyota Tundra 1794 Edition 2022 Toyota Tundra Platinum 2022 Toyota Tundra Limited TRD Off-Road 2022 Toyota Tundra Platinum 1794 Edition 2022 Toyota Tundra SR TRD Off-Road 2022 Toyota Tundra SR5 TRD Off-Road 2023 Toyota Tundra Limited 2023 Toyota Tundra SR 2023 Toyota Tundra SR5 2023 Toyota Tundra TRD Pro 2023 Toyota Tundra Capstone 2023 Toyota Tundra 1794 Edition 2023 Toyota Tundra Platinum 2024 Toyota Tundra Limited 2024 Toyota Tundra SR 2024 Toyota Tundra SR5 2024 Toyota Tundra TRD Pro 2024 Toyota Tundra Capstone 2024 Toyota Tundra Platinum 2024 Toyota Tundra 1794 Edition
