05-23 Toyota Tacoma (4WD) Suspension Bump Stop - Rear - ICON Vehicle Dynamics - 56103

TACO BUMPSTOP KIT
56103
TECH NOTE: Not compatible with 2005-2015 5-lug RWD Tacoma models
05-23 TACOMA REAR HYD BUMP STOP KIT
This vehicle specific tuned hydraulic bumpstop system offers both smooth engagement, maximum bottom resistance, and smooth controlled return.
The compression and rebound tuned bumpstop is smooth, not abrupt or harsh like the OE bumpstop.

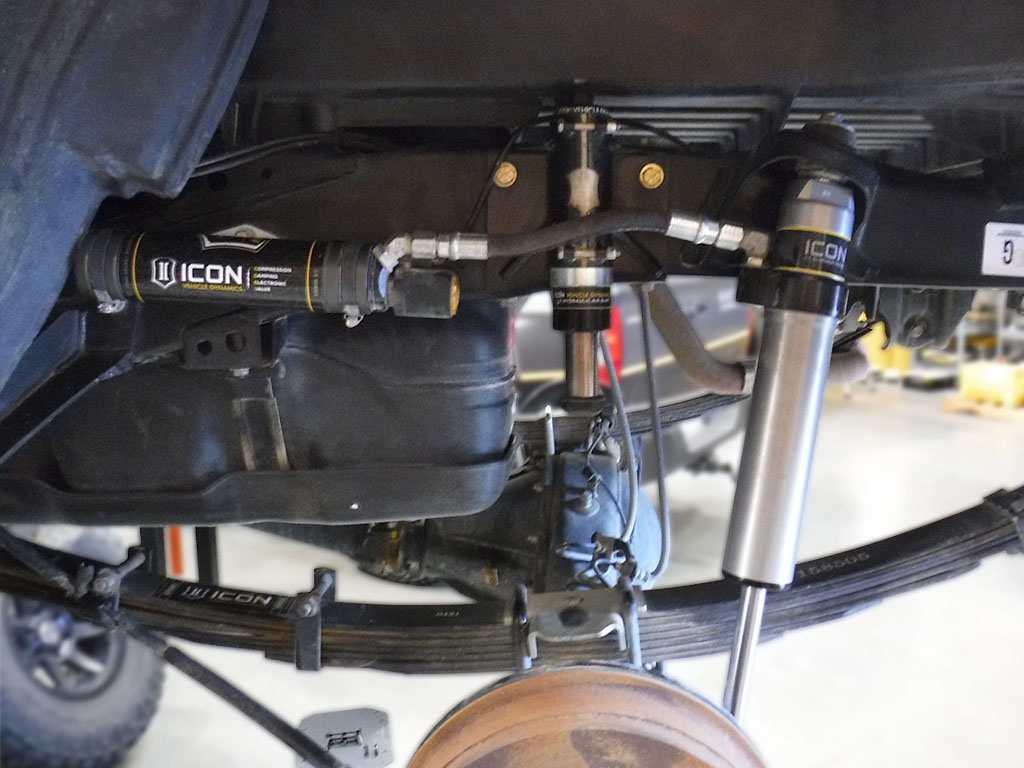

Bolt on a set of ICON Vehicle Dynamics rear hydraulic air bumpstops to improve the on or off-road capabilities of your 2005-2023 Toyota Tacoma when using maximum suspension travel.
ICON’s race proven hydraulic air bumpstops are tested, tried and true, from Cabo to Canada in all conditions.
This vehicle specific tuned hydraulic air bumpstop system offers both smooth engagement, maximum bottom resistance, and smooth controlled return while being used in extreme conditions.
The true value to using a compression and rebound tuned bumpstop is the exponentially increasing force is smooth, not abrupt or harsh like the OEM bumpstop.
As part of the kit, ICON includes an industry first selectable install height for the hydraulic air bumpstop so up travel is not limited with use of an aftermarket thicker leaf pack.
This allows you to upgrade your leaf springs down the road, and retain maximum up travel without having to purchase a new bump stop bracket kit.
Bolt-on design using existing holes in frame for clean install with no cutting or welding
Industry only Toyota Tacoma specific tune to maximize bottom out resistance while having smooth engagement as well as return
Absorbs additional impact energy over the OEM rubber bumpstop and returns the axle in a more controlled manner
Industry only kit allowing adjustment for leaf pack height changes so uptravel is not lost
Can be returned to stock
Linear-digressive piston which compliment a bumpstop over the industry standard linear-linear piston.
Infinite tuning options with valve stack, oil volume, and nitrogen pressure adjustments
Anodized billet top cap, o-ring sealed back up cap, seal head and striker
CAD Plated body for corrosion free service
Urethane rod seal and wiper for long service life
User serviceable
ICON 2005-2023 Toyota Tacoma Rear Hydraulic Bump Stop Kit, 56103
ICON 2005-2023 Toyota Tacoma Rear Hydraulic Bump Stop Kit
ICON 05-23 TACOMA REAR HYD BUMP STOP KIT.

Detailed Fitment Results
Year Make Model Submodel 2005 Toyota Tacoma Pre Runner 2005 Toyota Tacoma Base 2006 Toyota Tacoma Pre Runner 2006 Toyota Tacoma Base 2006 Toyota Tacoma TRD Sport Prerunner 2006 Toyota Tacoma SR5 Prerunner 2006 Toyota Tacoma Base Prerunner 2007 Toyota Tacoma Pre Runner 2007 Toyota Tacoma Base 2007 Toyota Tacoma TRD Sport Prerunner 2007 Toyota Tacoma SR5 Prerunner 2008 Toyota Tacoma Pre Runner 2008 Toyota Tacoma Base 2008 Toyota Tacoma TRD Sport Prerunner 2008 Toyota Tacoma SR5 Prerunner 2009 Toyota Tacoma Pre Runner 2009 Toyota Tacoma Base 2009 Toyota Tacoma TRD Sport Prerunner 2009 Toyota Tacoma SR5 Prerunner 2010 Toyota Tacoma Pre Runner 2010 Toyota Tacoma Base 2010 Toyota Tacoma TRD Sport 2011 Toyota Tacoma Pre Runner 2011 Toyota Tacoma Base 2011 Toyota Tacoma TRD Sport 2012 Toyota Tacoma Pre Runner 2012 Toyota Tacoma Base 2012 Toyota Tacoma TRD Sport 2013 Toyota Tacoma Pre Runner 2013 Toyota Tacoma Base 2013 Toyota Tacoma TRD Sport 2014 Toyota Tacoma Pre Runner 2014 Toyota Tacoma Base 2014 Toyota Tacoma TRD Sport 2015 Toyota Tacoma Pre Runner 2015 Toyota Tacoma Base 2015 Toyota Tacoma TRD Sport 2015 Toyota Tacoma TRD Pro 2016 Toyota Tacoma TRD Sport 2016 Toyota Tacoma SR 2016 Toyota Tacoma SR5 2016 Toyota Tacoma TRD Off-Road 2016 Toyota Tacoma Limited 2016 Toyota Tacoma Edicion Especial 2017 Toyota Tacoma TRD Sport 2017 Toyota Tacoma TRD Pro 2017 Toyota Tacoma SR 2017 Toyota Tacoma SR5 2017 Toyota Tacoma TRD Off-Road 2017 Toyota Tacoma Limited 2017 Toyota Tacoma Edicion Especial 2017 Toyota Tacoma Sport 2018 Toyota Tacoma TRD Sport 2018 Toyota Tacoma TRD Pro 2018 Toyota Tacoma SR 2018 Toyota Tacoma SR5 2018 Toyota Tacoma TRD Off-Road 2018 Toyota Tacoma Limited 2018 Toyota Tacoma Edicion Especial 2018 Toyota Tacoma Sport 2019 Toyota Tacoma TRD Sport 2019 Toyota Tacoma TRD Pro 2019 Toyota Tacoma SR 2019 Toyota Tacoma SR5 2019 Toyota Tacoma TRD Off-Road 2019 Toyota Tacoma Limited 2019 Toyota Tacoma Edicion Especial 2019 Toyota Tacoma Sport 2020 Toyota Tacoma TRD Sport 2020 Toyota Tacoma TRD Pro 2020 Toyota Tacoma SR 2020 Toyota Tacoma SR5 2020 Toyota Tacoma TRD Off-Road 2020 Toyota Tacoma Limited 2020 Toyota Tacoma Edicion Especial 2020 Toyota Tacoma Sport 2021 Toyota Tacoma TRD Sport 2021 Toyota Tacoma TRD Pro 2021 Toyota Tacoma SR 2021 Toyota Tacoma SR5 2021 Toyota Tacoma TRD Off-Road 2021 Toyota Tacoma Limited 2021 Toyota Tacoma Edicion Especial 2021 Toyota Tacoma Sport 2021 Toyota Tacoma Nightshade 2021 Toyota Tacoma Trail 2022 Toyota Tacoma TRD Sport 2022 Toyota Tacoma TRD Pro 2022 Toyota Tacoma SR 2022 Toyota Tacoma SR5 2022 Toyota Tacoma TRD Off-Road 2022 Toyota Tacoma Limited 2022 Toyota Tacoma Edicion Especial 2022 Toyota Tacoma Sport 2022 Toyota Tacoma Nightshade 2022 Toyota Tacoma Trail 2022 Toyota Tacoma Base 2023 Toyota Tacoma TRD Sport 2023 Toyota Tacoma TRD Pro 2023 Toyota Tacoma SR 2023 Toyota Tacoma SR5 2023 Toyota Tacoma TRD Off-Road 2023 Toyota Tacoma Limited 2023 Toyota Tacoma Edicion Especial 2023 Toyota Tacoma Sport 2023 Toyota Tacoma Nightshade 2023 Toyota Tacoma Base 2023 Toyota Tacoma Trail Special Edition
