05-23 Toyota Tacoma (4WD) Suspension Control Arm Kit - Front Lower - ICON Vehicle Dynamics - 54300

LOWER CONTROL ARMS
54300
OEM Wheels and Tires Fitment: Yes
Recommended Aftermarket Wheels: ICON Alloys - 17x8.
5 with 4.
75” Backspace / 0mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 18x9 with 5.
00” Backspace / 0mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 20x9 with 5.
00” Backspace / 0mm Offset
Recommended Aftermarket Tires: 33" x 11.
50" (Larger tires may fit but fender trimming and modifications will be required.
)
APPLICATION NOTE #167: 2005-2015 Tacoma also requires part # 54302
APPLICATION NOTE #168: 2016-2023 Tacoma also requires part # 54301
TECH NOTE: Fits 2005-2015 4WD and PreRunner and 2016-2023 2WD/4WD Toyota Tacoma models
TECH NOTE: Will not fit 2005-2015 2WD 5-Lug Toyota Tacoma models
TECH NOTE: Not compatible with OE front coilovers.
Aftermarket coilovers with COM10 lower bearings are required.
05-23 TACOMA LOWER CONTROL ARMS

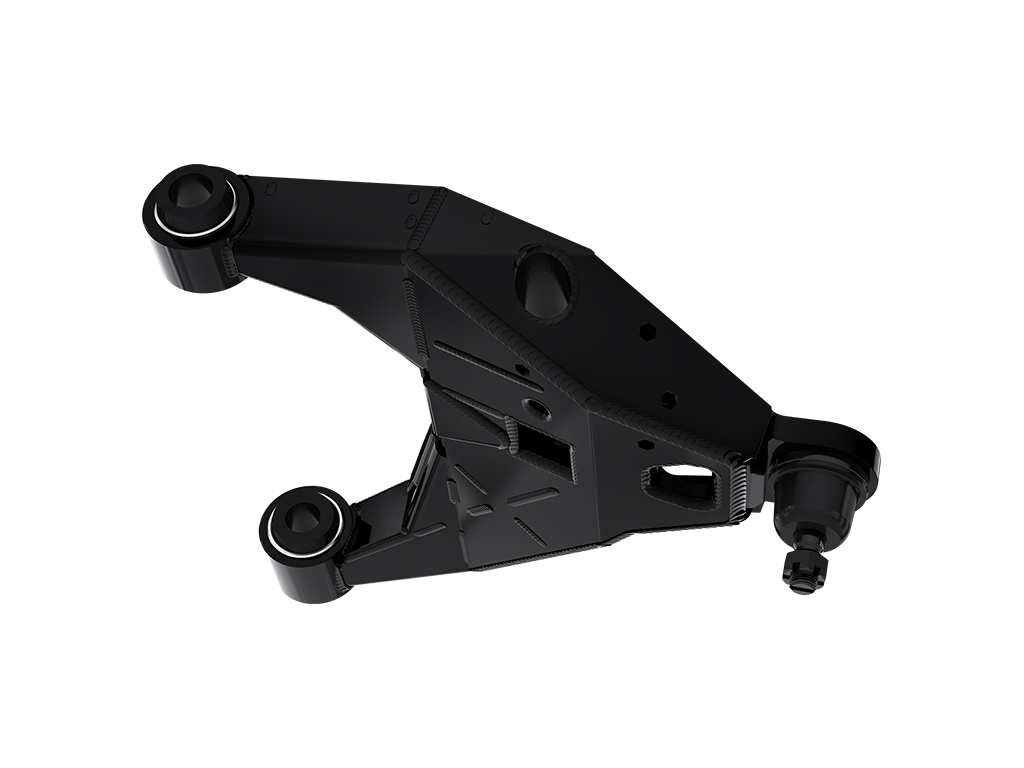

The ICON 05-23 Toyota Tacoma Lower Control Arm Kit is designed to be the ultimate stock width replacement control arm upgrade.
Featuring a fabricated, boxed, steel plate construction, a clearance design, and secondary shock compatibility.
***ADDITIONAL MODEL SPECIFIC HARDWARE KIT ALSO REQUIRED FOR INSTALL - SEE APPLICATION NOTES BELOW***
The ICON Vehicle Dynamics 2005-2023 Toyota Tacoma Lower Control Arm Kit is designed to be the ultimate stock width replacement control arm upgrade.
Their fully welded, boxed, CNC laser cut and brake formed steel plate construction is internally braced with multiple ribs to offer significantly improved strength over the stock Tacoma LCAs.
Featuring a high ground clearance design, specially angled plates also allow the arms to easily slide over larger obstacles out on the trail.
CNC machined forged steel ball joint housings maintain the highest possible ground clearance while also ensuring strength and appropriate CV boot clearance on 4WD Tacoma models.
Rather than using traditional top mounted coilover mounting tabs, these LCAs utilize recessed coilover mounts, further increasing strength and provide race inspired styling.
Their incorporated secondary shock mounting tabs tie seamlessly into the ICON S2 Secondary Shock System for a fully bolt-on installation of multiple secondary shock options to effectively double the shock damping ability of the front suspension and improve off-road performance.
To make these arms as much at home on the street as they are on the trail, the lower ball joints are of a metal on metal and greaseable design to avoid the short service life and noises typically associated with uniballs while also being able to withstand the abuses of aggressive off-road use.
The inner pivot bushings are bonded polyurethane to the outer sleeve and unbonded inner sleeve to minimize deflection and improve handling characteristics while allowing unhindered suspension movement though the entire travel range.
Additionally, these specialty bushings do not require any greasing or other maintenance throughout their service life.
With features like these, the ICON 2005-2023 Toyota Tacoma Lower Control Arm Kit would make an incredible addition to round out your Tacoma’s suspension system.
High clearance, stock width design
Fully welded boxed steel construction with internal ribs for maximum strength
CNC laser cut and brake formed steel plate
ICON secondary shock compatibility with ICON S2 Shock Hoops (sold separately)
Recessed coilover mounting points
Pocketed lower plates allow drainage and easy access to coilover mounting hardware
Angled front plates and relocated steering stops help arms slide over obstacles and prevent trail hang ups
CNC machined forged ball joint housings ensure strength and CV boot clearance
Metal on metal, greaseable lower ball joints for longevity and noise free operation
Maintenance free bonded polyurethane bushings
Semi-gloss black powder coat finish for corrosion resistance
Fabricated components covered by ICON’s Limited Lifetime Warranty
ICON 2005-2023 Toyota Tacoma, Front, Lower Control Arm Kit, 54300
ICON 2005-2023 Toyota Tacoma, Front, Lower Control Arm Kit
ICON 05-23 TACOMA LOWER CONTROL ARMS.

Detailed Fitment Results
Year Make Model Submodel 2005 Toyota Tacoma Base 2005 Toyota Tacoma Pre Runner 2006 Toyota Tacoma Base 2006 Toyota Tacoma Pre Runner 2006 Toyota Tacoma SR5 Prerunner 2006 Toyota Tacoma TRD Sport Prerunner 2006 Toyota Tacoma Base Prerunner 2007 Toyota Tacoma Base 2007 Toyota Tacoma Pre Runner 2007 Toyota Tacoma SR5 Prerunner 2007 Toyota Tacoma TRD Sport Prerunner 2008 Toyota Tacoma Base 2008 Toyota Tacoma Pre Runner 2008 Toyota Tacoma SR5 Prerunner 2008 Toyota Tacoma TRD Sport Prerunner 2009 Toyota Tacoma Base 2009 Toyota Tacoma Pre Runner 2009 Toyota Tacoma SR5 Prerunner 2009 Toyota Tacoma TRD Sport Prerunner 2010 Toyota Tacoma Base 2010 Toyota Tacoma Pre Runner 2010 Toyota Tacoma TRD Sport 2011 Toyota Tacoma Base 2011 Toyota Tacoma Pre Runner 2011 Toyota Tacoma TRD Sport 2012 Toyota Tacoma Base 2012 Toyota Tacoma Pre Runner 2012 Toyota Tacoma TRD Sport 2013 Toyota Tacoma Base 2013 Toyota Tacoma Pre Runner 2013 Toyota Tacoma TRD Sport 2014 Toyota Tacoma Base 2014 Toyota Tacoma Pre Runner 2014 Toyota Tacoma TRD Sport 2015 Toyota Tacoma Base 2015 Toyota Tacoma Pre Runner 2015 Toyota Tacoma TRD Sport 2015 Toyota Tacoma TRD Pro 2016 Toyota Tacoma 2017 Toyota Tacoma 2018 Toyota Tacoma 2019 Toyota Tacoma 2020 Toyota Tacoma 2021 Toyota Tacoma 2022 Toyota Tacoma 2023 Toyota Tacoma
