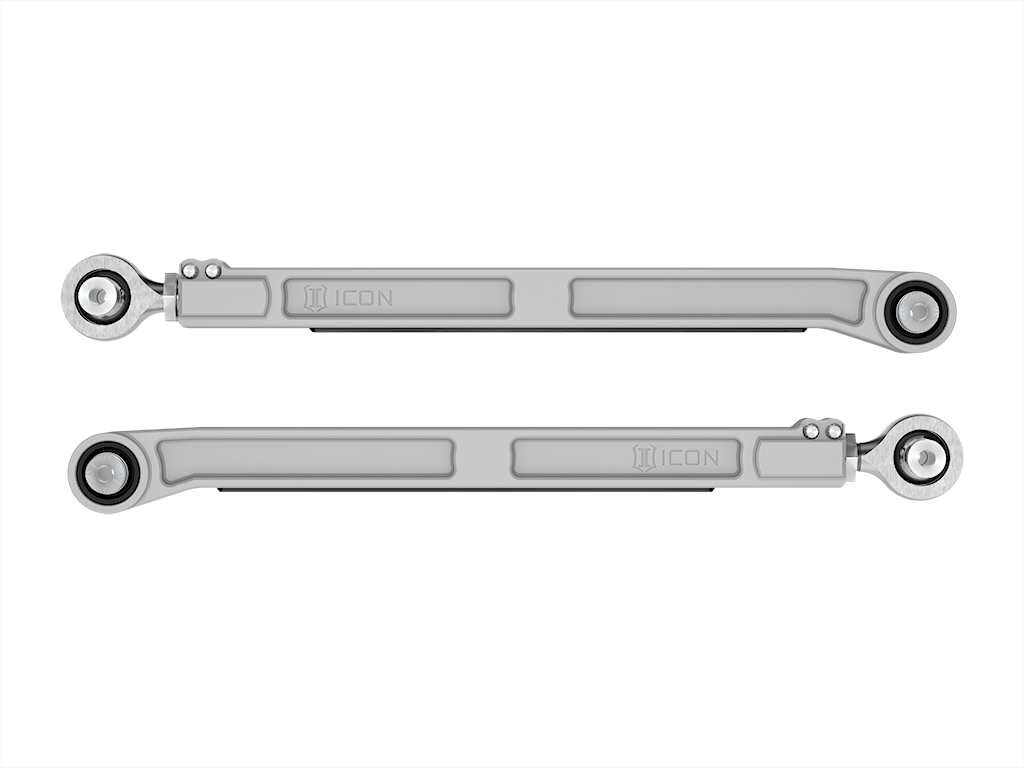

Toyota (Coil) Suspension Control Arm Kit - ICON Vehicle Dynamics - 54002

REAR LOWER LINK KIT
54002
APPLICATION NOTE #164: Will not fit Tacoma submodels equipped with rear leaf springs
22-25 TUNDRA/23-25 SEQUOIA/24-25 TACOMA BILLET REAR LOWER LINK KIT
ICON billet trailing arms are light, strong, and engineered to improve off-road ride quality.
Built with CNC machined 6061 aluminum, they feature PTFE-lined rod ends, replaceable nylon rock sliders for protection, and on-vehicle adjustment.
ICON’s billet aluminum rear lower link arms for the 2022-2025 Toyota Tundra, 2023-2025 Toyota Sequoia, and 2024-2025 Toyota Tacoma are a significant upgrade over the factory units due to increases in strength, adjustability, and performance.
These links are made from CNC machined 6061 aluminum in-house and anodized for corrosion resistance, providing a major improvement over the construction of the stock units.
This rear lower link arm kit features PTFE-lined FK rod ends for increased suspension articulation, reduced deflection, and on-vehicle link arm length adjustability using ICON’s double adjuster system.
Additionally, multi durometer bushings are installed that allow for noise free operation and maximum angularity without the need for periodic greasing and/or other maintenance.
The quality rod ends and bushings featured in these link arms allow the vehicle’s suspension to function as intended, without the bushing bind that limits the vehicle in stock form.
ICON’s engineering team has also gone a step further in the development of these products by incorporating features such replaceable nylon rock sliders to prevent any hang-ups on the trail.
After the design phase was completed ICON engineers put these parts through the “ICON1K” real-world test cycle for a final stamp of approval.
On vehicle adjustment for different ride heights and pinion angles using ICON's Double Adjuster System
Vehicle specific, high clearance design for reduced link contact with obstacles
Replaceable Nylon Rock Slider to protect the link from damage
CNC machined 6061 aluminum construction
Large FK Bearing JMX16T PTFE-lined rod ends
Maintenance free, dual durometer bushings for maximum angularity and noise isolation
Covered by ICON’s Limited Lifetime Warranty
ICON 2022-2025 Toyota Tundra/2023-2025 Toyota Sequoia/2024-2025 Toyota Tacoma, Rear, Billet Lower Link Kit, 54002
ICON 2022-2025 Toyota Tundra/2023-2025 Toyota Sequoia/2024-2025 Toyota Tacoma, Rear, Billet Lower Link Kit
ICON 22-25 TUNDRA/23-25 SEQUOIA/24-25 TACOMA BILLET REAR LOWER LINK KIT.

Detailed Fitment Results
Year Make Model Submodel 2022 Toyota Tundra 1794 Edition 2022 Toyota Tundra Capstone 2022 Toyota Tundra Limited 2022 Toyota Tundra Platinum 2022 Toyota Tundra SR 2022 Toyota Tundra SR5 2022 Toyota Tundra TRD Pro 2022 Toyota Tundra Limited TRD Off-Road 2022 Toyota Tundra Platinum 1794 Edition 2022 Toyota Tundra SR TRD Off-Road 2022 Toyota Tundra SR5 TRD Off-Road 2023 Toyota Tundra 1794 Edition 2023 Toyota Tundra Capstone 2023 Toyota Tundra Limited 2023 Toyota Tundra Platinum 2023 Toyota Tundra SR 2023 Toyota Tundra SR5 2023 Toyota Tundra TRD Pro 2023 Toyota Sequoia Capstone 2023 Toyota Sequoia Limited 2023 Toyota Sequoia Platinum 2023 Toyota Sequoia SR5 2023 Toyota Sequoia TRD Pro 2023 Toyota Sequoia TRD Off-Road 2024 Toyota Tundra 1794 Edition 2024 Toyota Tundra Capstone 2024 Toyota Tundra Limited 2024 Toyota Tundra Platinum 2024 Toyota Tundra SR 2024 Toyota Tundra SR5 2024 Toyota Tundra TRD Pro 2024 Toyota Sequoia Capstone 2024 Toyota Sequoia Limited 2024 Toyota Sequoia Platinum 2024 Toyota Sequoia SR5 2024 Toyota Sequoia TRD Pro 2024 Toyota Tacoma SR5 2024 Toyota Tacoma TRD Off-Road 2024 Toyota Tacoma Limited 2024 Toyota Tacoma TRD Sport 2025 Toyota Tundra 1794 Edition 2025 Toyota Tundra Capstone 2025 Toyota Tundra Limited 2025 Toyota Tundra Platinum 2025 Toyota Tundra SR 2025 Toyota Tundra SR5 2025 Toyota Tundra TRD Pro 2025 Toyota Tundra TRD Off-Road 2025 Toyota Sequoia Capstone 2025 Toyota Sequoia Limited 2025 Toyota Sequoia Platinum 2025 Toyota Sequoia SR5 2025 Toyota Sequoia TRD Pro 2025 Toyota Sequoia 1794 Edition 2025 Toyota Tacoma SR5 2025 Toyota Tacoma TRD Off-Road 2025 Toyota Tacoma Limited 2025 Toyota Tacoma TRD Sport Premium 2025 Toyota Tacoma TRD Sport
