22-24 Toyota Tundra (Coil) Coil Spring Spacer - Rear - ICON Vehicle Dynamics - 51016

COIL SPACER KIT
51016
OEM Wheels and Tires Fitment: No
Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.
625” Backspace / 16mm Offset
Recommended Aftermarket Tires: 37" x 12.
50" (Larger tires may fit but fender trimming and modifications will be required.
)
APPLICATION NOTE #85: Advertised Lift Height Ranges Are For A Stock Equipped Vehicle.
Increasing Weight Of Vehicle Due To Accessories Will Alter Lift Range.
APPLICATION NOTE #142: Not compatible with vehicles equipped with Load-Leveling Rear Height Control Air Suspension.
APPLICATION NOTE #153: Not Compatible With Adaptive Variable Suspension (AVS) Equipped Vehicles
APPLICATION NOTE #155: Requires recalibration of Advanced Driver Assistance Systems (ADAS) after install
TECH NOTE: Requires additional components to complete system.
DO NOT attempt install without part numbers 51010, 51011, 51012, 51014, and 51017.

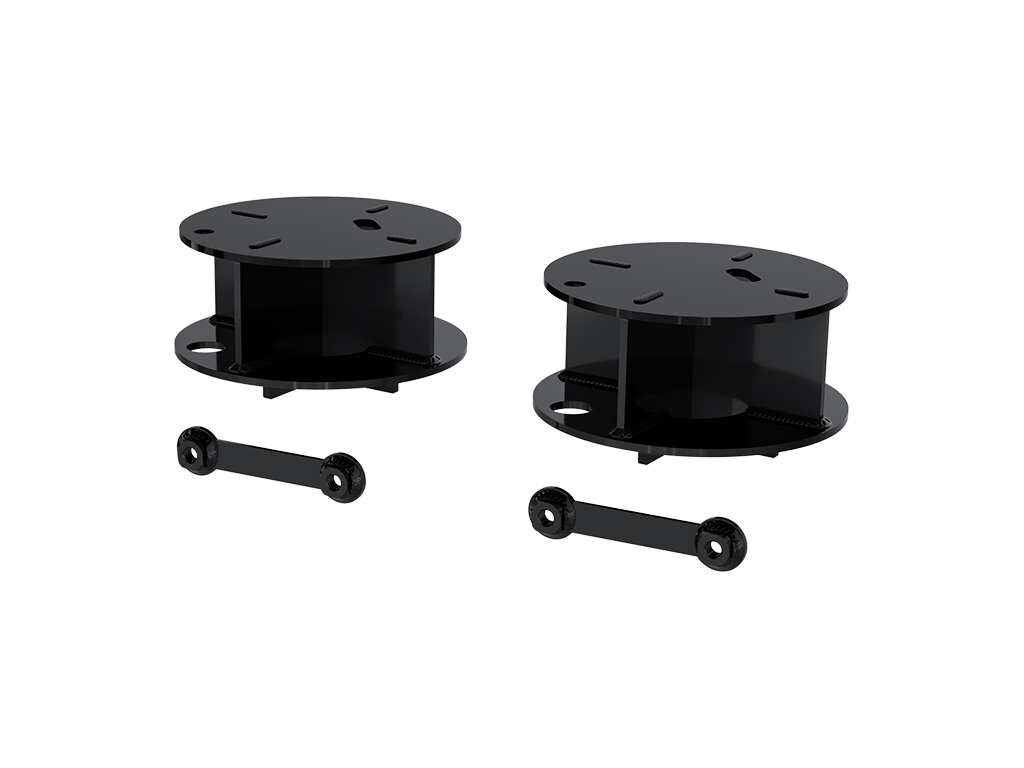

22-24 TUNDRA REAR COIL SPACER KIT
The ICON 3” Coil Spring Spacer Kit is used as part of the 6” Lift Suspension System for the 22-24 Tundra.
Allows the OE rear coils to be reused to obtain lift while still allowing the option to upgrade to ICON rear coils in the future.
The ICON 3” Lift Rear Coil Spacer Kit is used as part of the ICON 6” Lift Performance Suspension System for the 2022-2024 Toyota Tundra and allows the OE rear coil springs to be reused to obtain the required rear lift at a lower cost while still allowing the option to upgrade to ICON Triple Rate Rear Coil Springs in the future.
These high-quality spacers are fabricated from CNC laser cut steel and powder coated with a semi-gloss black finish.
Allows use of OE rear coil springs with ICON 6” Lift Performance Suspension System
Lower cost option compared to ICON Triple Rate Rear Coils
Compatible with 2WD and 4WD models
Fabricated steel construction
Durable semi-gloss black powder coat finish
ICON Limited Lifetime Warranty
ICON 2022-2024 Toyota Tundra, 3" Lift Rear Coil Spacer Kit, 51016
ICON 2022-2024 Toyota Tundra, 3" Lift Rear Coil Spacer Kit
ICON 22-24 TUNDRA REAR COIL SPACER KIT.

Detailed Fitment Results
Year Make Model 2022 Toyota Tundra 2023 Toyota Tundra 2024 Toyota Tundra
