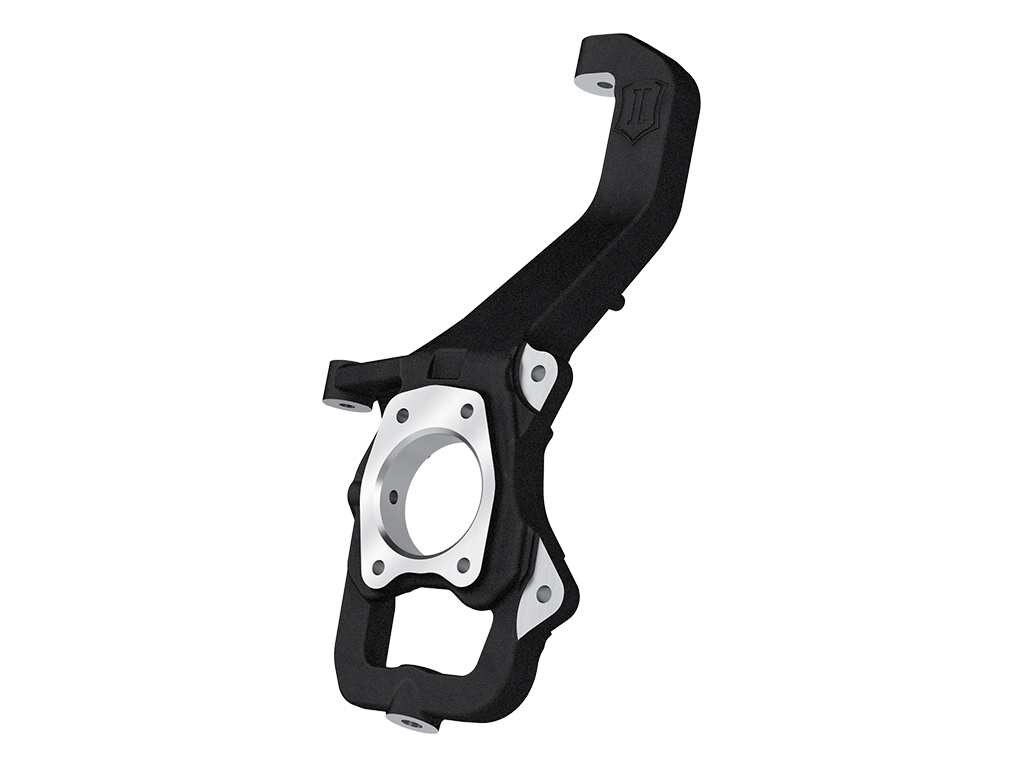

22-24 Toyota Tundra (Coil) Steering Knuckle Kit - N/A - ICON Vehicle Dynamics - 51014

STEERING KNUCKLE KIT
51014
OEM Wheels and Tires Fitment: No
Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.
625” Backspace / 16mm Offset
Recommended Aftermarket Tires: 37" x 12.
50" (Larger tires may fit but fender trimming and modifications will be required.
)
TECH NOTE: Require minimum of 20" diameter wheels
TECH NOTE: Requires additional components to complete system.
DO NOT attempt install without part numbers 51010, 51011, 51012, and 51017.
22-24 TUNDRA FRONT SKID PLATE
The ICON Steering Knuckle Kit is an essential component of the ICON 6” Lift System and compliment the ICON front crossmembers.
Their high-strength ductile iron construction is engineered to withstand the stresses of aggressive off-road use.
The ICON Vehicle Dynamics Front Steering Knuckle Kit is an essential component of the ICON 6” Lift Performance Suspension System for the 2022-2024 Toyota Tundra, featuring a 4” drop to compliment the ICON high-clearance front crossmembers.
Their single piece, high-strength CNC machined ductile iron construction ensures strength and have been engineered to withstand the stresses of aggressive off-road use while minimizing un-sprung weight and maintaining factory track width.
Optimized steering arm geometry also virtually eliminates bump steer through the entire wheel travel range for predictable handling characteristics.
These steering knuckles will stand the test of time with replaceable steering stops, a durable black powder coat finish, and ICON’s Limited Lifetime Warranty.
Single piece high-strength ductile iron steering knuckles with built-in 4" drop
Precision CNC machined
Designed to fit 37" tires with full articulation (larger tires may fit but fender trimming and modifications will be required)
Optimized suspension geometry nearly eliminates bump steer
Maintains factory track width
Engineered to withstand the stresses of aggressive off-road use
Pocketed design for lower un-sprung weight
Replaceable steering stops
Durable powder coat finish for corrosion resistance
ICON Limited Lifetime Warranty
ICON 2022-2024 Toyota Tundra, Front Steering Knuckle Kit, 51014
ICON 2022-2024 Toyota Tundra, Front Steering Knuckle Kit
ICON 22-23 TUNDRA FRONT KNUCKLE KIT.

Detailed Fitment Results
Year Make Model 2022 Toyota Tundra 2023 Toyota Tundra 2024 Toyota Tundra
