21-23 Ford Bronco Coilover Spring and Shock Assembly - Rear - ICON Vehicle Dynamics - 48711C

CDCV COILOVER KIT
48711C
OEM Wheels and Tires Fitment: Yes
Recommended Aftermarket Wheels (With Sasquatch Package): ICON Alloys - 17x8.
5" w/ 4.
75" Backspace / 0mm Offset
Recommended Aftermarket Wheels (With Sasquatch Package): ICON Alloys - 18x9" w/ 5.
00" Backspace / 0mm Offset
Recommended Aftermarket Wheels (With Sasquatch Package): ICON Alloys - 20x9" w/ 5.
00" Backspace / 0mm Offset
Recommended Aftermarket Wheels (Without Sasquatch Package): ICON Alloys - 17x8.
5" w/ 5.
75" Backspace / 25mm Offset
Recommended Aftermarket Wheels (Without Sasquatch Package): ICON Alloys - 18x9" w/ 6.
00" Backspace / 25mm Offset
Recommended Aftermarket Tires (With Sasquatch Package): 35" x 12.
50" (37" tires require coilover bump stop spacers)
Recommended Aftermarket Tires (Without Sasquatch Package): 35" x 12.
50" (37" tires require coilover bump stop spacers)
APPLICATION NOTE #66: 2 door models will sit taller than 4 door models
APPLICATION NOTE #133: When Running 37" Tires Use Up Travel Limiter's Part #611074 For The Rear
APPLICATION NOTE #136: When Running ICON Tubular Lower Links Use Part #611073
APPLICATION NOTE #137: When Running Factory Lower Links Use Part #611072
APPLICATION NOTE #150: Shocks are fully serviceable
APPLICATION NOTE #186: Rear reservoir brackets may interfere with some aftermarket step or rock slider mounts.
Modifications may be required.
TECH NOTE: ICON Heavy Rate Rear Coil Springs are optimized for increased rear ride height on Broncos with additional weight added to the rear.
ICON Heavy Rate Rear Coil Springs will result in a slight positive rake when the Bronco is unloaded.
For near stock weight Broncos, consider part number 48710C.
TECH NOTE: Lift height ranges advertised are for 4-door models.
2-door models will net approximately.
5" of additional rear lift over stock.
TECH NOTE: Not compatible with Bronco Raptor
21-23 BRONCO REAR 2.
5 VS RR CDCV COILOVER KIT HEAVY RATE SPRING

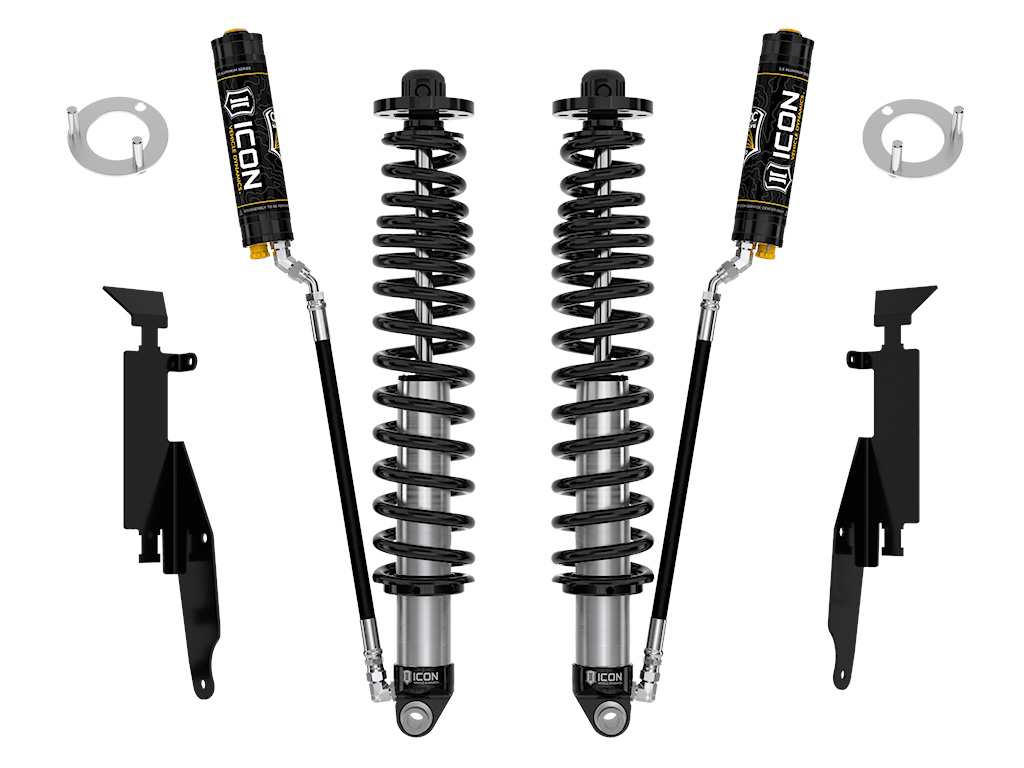

These ICON coilovers feature 2.
5 Series shocks with remote reservoirs and coil springs optimized per application.
The shock’s bigger 2.
5” body and larger piston area improves damping ability and ride quality across varying types of terrain.
ICON Vehicle Dynamics V.
S.
2.
5 Series remote reservoir rear coilover shocks with CDCV are an incredible upgrade for the rear end of the 2021-2023 Ford Bronco.
These adjustable coilovers allow up to 2-3” of rear lift height adjustability on 4-door Broncos without the Sasquatch package or 1.
25-2.
25” of rear lift over stock 4-door Sasquatch equipped Broncos, allowing the use of larger, more aggressive wheel and tire combinations.
ICON’s Vehicle-specific shock length and valving along with the larger 2.
5” shock body and increased piston area over stock components yield the maximum travel possible along with superior ride quality and suspension performance both on- and off-road.
Reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade.
ICON's exclusive Compression Damping Control Valves are included for precisely dialing in your suspension performance.
CDCV controls fluid flow under compression, allowing you to achieve the perfect tune whether driving on the street, slow-crawling through the rocks or mobbing across the desert at full throttle.
These rear coilovers are mounted in a shaft up orientation and feature unique ICON engineered progressive dual rate coil springs that provide extra weight capacity for those who frequently load out their Broncos with extra gear and equipment while maintaining excellent on- and off-road performance characteristics.
This shaft up orientation also requires the reservoir hose to be routed along the rear lower links so ICON offers hose bracket options for the OE or ICON tubular links while ICON billet links incorporate this bracketry into their design.
When paired with ICON 2.
5 Series front coilovers vehicle control will be balanced front to rear, resulting in the best overall driving experience for your Ford Bronco.
Increased wheel travel (up to 14”) and ride quality over stock
Vehicle specific tuned for superior shock damping and control
Remote reservoirs maintain cooler operating temperatures during extended off-road use
ICON CDCV equipped for 10 settings of external compression damping adjustment
Adjustable up to 2-3" of rear lift height on non-Sasquatch or 1.
25-2.
25” of rear lift on Sasquatch Broncos
Unique ICON engineered dual rate coil springs with increased spring rates for heavier equipped Broncos
6061 Aircraft grade aluminum CNC machined components
Corrosion resistant CAD plated shock bodies with 7/8" diameter shaft
FK rod end bearings for extended longevity and minimal deflection
Fully rebuildable and re-tunable
100% Bolt-on - no drilling, cutting or welding necessary for installation
ICON 2021-2023 Ford Bronco, Rear, 1.
25-3” Lift, V.
S.
2.
5 Series Coilover Kit, Remote Reservoir w/ CDCV, Heavy Rate Spring, 48711C
ICON 2021-2023 Ford Bronco, Rear, 1.
25-3” Lift, V.
S.
2.
5 Series Coilover Kit, Remote Reservoir w/ CDCV, Heavy Rate Spring
ICON 21-23 BRONCO REAR 2.
5 VS RR CDCV COILOVER KIT HEAVY RATE SPRING.

Detailed Fitment Results
Year Make Model Submodel Fitment Notes 2021 Ford Bronco Black Diamond Reservoir Brackets May Not Fit with Some Aftermarket Steps or Rock Sliders. Modifications May be Required. 2021 Ford Bronco Outer Banks Reservoir Brackets May Not Fit with Some Aftermarket Steps or Rock Sliders. Modifications May be Required. 2021 Ford Bronco Badlands Reservoir Brackets May Not Fit with Some Aftermarket Steps or Rock Sliders. Modifications May be Required. 2021 Ford Bronco Base Reservoir Brackets May Not Fit with Some Aftermarket Steps or Rock Sliders. Modifications May be Required. 2021 Ford Bronco Big Bend Reservoir Brackets May Not Fit with Some Aftermarket Steps or Rock Sliders. Modifications May be Required. 2021 Ford Bronco Wildtrak Reser…
