21-23 Ford Bronco Suspension Control Arm Kit - Front Upper - ICON Vehicle Dynamics - 48400DJ

UCA KIT
48400DJ
Factory Wheels and Tires Fitment: Yes
Recommended Aftermarket Wheels (With Sasquatch Package): ICON Alloys - 17x8.
5" w/ 4.
75" Backspace / 0mm Offset
Recommended Aftermarket Wheels (With Sasquatch Package): ICON Alloys - 18x9" w/ 5.
00" Backspace / 0mm Offset
Recommended Aftermarket Wheels (With Sasquatch Package): ICON Alloys - 20x9" w/ 5.
00" Backspace / 0mm Offset
Recommended Aftermarket Wheels (Without Sasquatch Package): ICON Alloys - 17x8.
5" w/ 5.
75" Backspace / 25mm Offset
Recommended Aftermarket Wheels (Without Sasquatch Package): ICON Alloys - 18x9" w/ 6.
00" Backspace / 25mm Offset
Recommended Aftermarket Tires: 37" x 12.
50"
TECH NOTE: Not compatible with Bronco Raptor

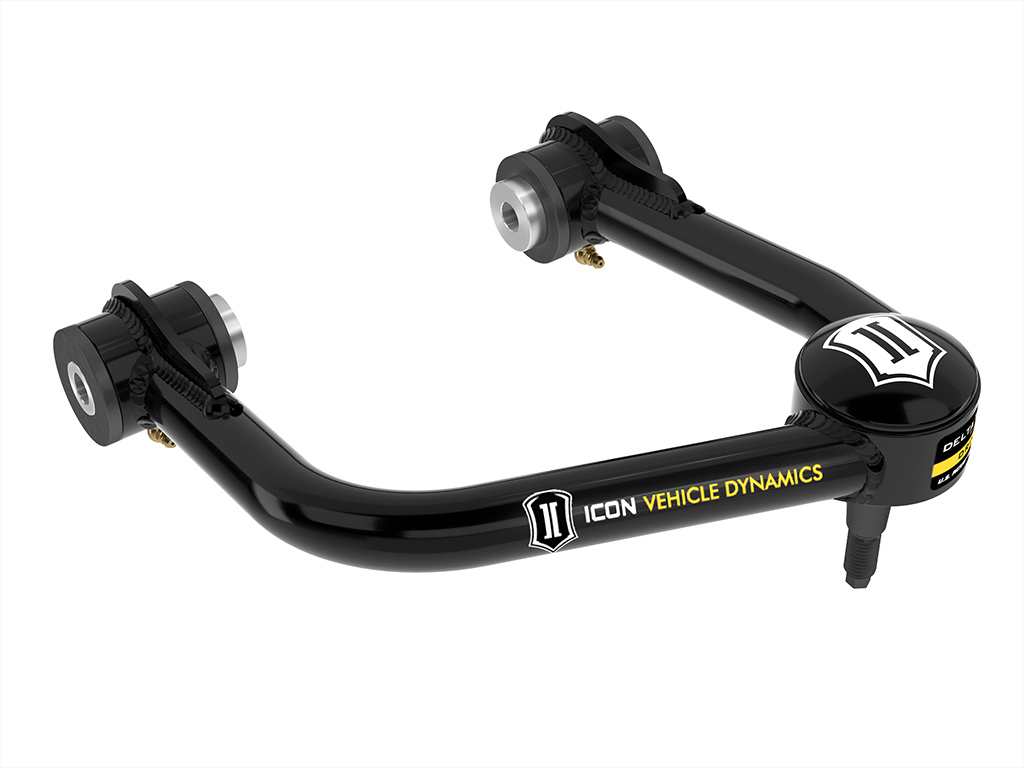

21-23 BRONCO TUBULAR UCA DJ PRO KIT
ICON tubular UCAs feature 1026 DOM tube construction, polyurethane, and ICON’s rebuildable Delta Joint PRO, a hardcore high-angle ball joint that combines the durability of a ball joint with the performance of a traditional uniball.
These tubular steel upper control arms free up your 2021-2023 Ford Bronco's front suspension movement to allow maximum travel for performance shocks and coilovers at an easier price point compared to our range-topping billet components.
Additional caster is built in to correct geometry to allow for better front-end alignment on lifted Broncos.
The all-new Delta Joint PRO provides a host of durability and performance improvements compared to our standard Delta Joints, including up to 90° of free articulation to maximize suspension travel without bind.
It’s also larger and fully rebuildable.
The Delta Joint PRO’s grease fitting is protected by an anodized billet aluminum dust cap, included with the kit.
Serviceable Heavy Duty Dual Stage bushings at the frame pivots are greaseable and rebuildable, and fit into precision machined bushing housings to ensure a responsive driving experience.
ICON Tubular Upper Control Arms are constructed of heavy-wall DOM tubing, CNC formed and fixture welded before receiving our multi-stage black powder coat finish.
Strength and durability are improved by using a larger ball with 56% more bearing surface than our standard Delta Joint, along with improved lubrication sealing.
But improved performance is at the heart of the Delta Joint PRO, with a full 90 degrees of articulation, from one extreme to the other.
This represents a 14% improvement in range of motion, over the highly capable original Delta Joint, allowing for maximum bind-free suspension movement through the complete range of travel.
The Delta Joint PRO is built to take the abuse, with a chromoly ball and shaft that has a bearing surface hardened to Rockwell C 55.
The replaceable races are made of graphite-impregnated sintered metal, machined to the finest tolerance to provide a flawless, metal-to-metal bearing interface.
We also redesigned the lubrication system, with lubricant channels that distribute grease more efficiently without extending past the bearing seal.
Built in added caster for better handling on lifted vehicles
Delta Joint PRO allows maximum articulation without binding
Delta Joint PRO is 100% serviceable and rebuildable
Serviceable dual stage pivot bushings
CNC machined housings for bushings and Delta Joint PRO
1026 DOM tube construction with black powder coat finish
Includes billet dust caps for Delta Joint PRO
ICON 2021-2023 Ford Bronco, Billet Upper Control Arm/Delta Joint Pro Kit, 48400DJ
ICON 2021-2023 Ford Bronco, Tubular Upper Control Arm/Delta Joint Pro Kit
ICON 21-23 BRONCO TUBULAR UCA DJ PRO KIT.

Detailed Fitment Results
Year Make Model Submodel 2021 Ford Bronco Badlands 2021 Ford Bronco Base 2021 Ford Bronco Big Bend 2021 Ford Bronco Black Diamond 2021 Ford Bronco Outer Banks 2021 Ford Bronco Wildtrak 2021 Ford Bronco First Edition 2022 Ford Bronco Badlands 2022 Ford Bronco Base 2022 Ford Bronco Big Bend 2022 Ford Bronco Black Diamond 2022 Ford Bronco Outer Banks 2022 Ford Bronco Wildtrak 2022 Ford Bronco Everglades 2023 Ford Bronco Badlands 2023 Ford Bronco Base 2023 Ford Bronco Big Bend 2023 Ford Bronco Black Diamond 2023 Ford Bronco Outer Banks 2023 Ford Bronco Wildtrak 2023 Ford Bronco Everglades 2023 Ford Bronco Heritage Edition 2023 Ford Bronco Heritage Limited Edition
