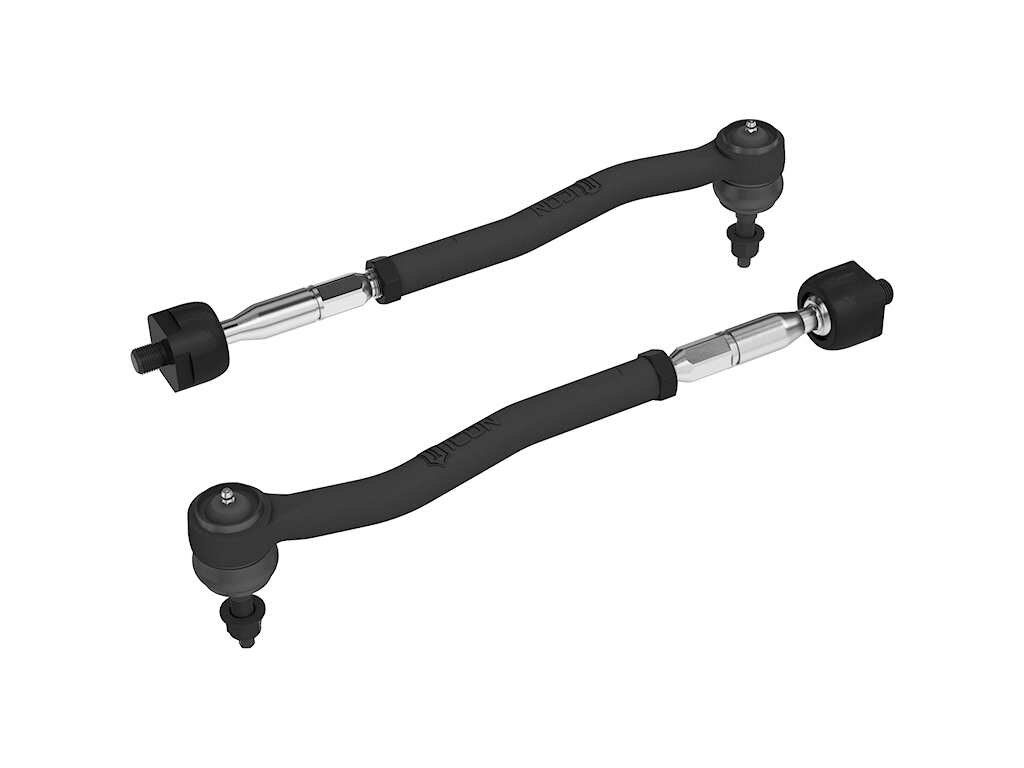

21-23 Ford Bronco Steering Tie Rod Assembly - Front - ICON Vehicle Dynamics - 45212

TIE ROD KIT
45212
TECH NOTE: Compatible with OE HOSS 1.
0 and HOSS 2.
0 steering racks
TECH NOTE: Also compatible with HOSS 3.
0 steering racks but the dust boot must be stretched to fit over the rack housing
TECH NOTE: Not compatible with Bronco Raptor
TECH NOTE: Not compatible with aftermarket tie rod braces
21-23 BRONCO XD TIE ROD KIT
ICON XD Forged Tie Rods offer significant increase in strength with better materials and beefier dimensions than the stock tie rods while also capable of same range of motion and offer same tire fitment as OE units.
The strength limitations of the Bronco's factory steering tie rods has been well documented, especially by Bronco owners who venture into the big rocks with big tires.
These ICON XD Forged Tie Rods remedy this with better materials and beefier dimensions than the stock units.
The inner tie rod and ball stud is CNC machined from 4140 chromoly.
The adjustment threads, where we've seen most of the failures happen on stock tie rods, are18mm on the XD Forged Tie Rods versus 14mm on stock Bronco tie rods.
The outer tie rod is forged steel and has the same bend as the stock tie rods for fitting all of the Bronco's factory wheel diameters and offsets, along with just about any aftermarket wheel.
The tie rod end is a beefier, metal on metal joint that is greaseable for extended service life and has the same range of operating angle as the stock tie rod ends.
For the most hardcore of off-roaders, the ICON XD Forged Tie Rod kit is recommended as part of a comprehensive steering system upgrade strategy.
30% larger diameter than OE tie rods
4140 chromoly inner ball studs
Forged steel outer tie rod ends
Metal on metal ball joint design with grease zerks
Design to fit around factory wheel off set
Includes inner tie rod boots that protect the steering rack from dirt and debris
Limited lifetime warranty
ICON 2021-2023 Ford Bronco Extreme Duty Tie Rod Kit, 45212
ICON 2021-2023 Ford Bronco Extreme Duty Tie Rod Kit
ICON 21-23 BRONCO XD TIE ROD KIT.

Detailed Fitment Results
Year Make Model Submodel 2021 Ford Bronco Badlands 2021 Ford Bronco Base 2021 Ford Bronco Big Bend 2021 Ford Bronco Black Diamond 2021 Ford Bronco Outer Banks 2021 Ford Bronco Wildtrak 2021 Ford Bronco First Edition 2022 Ford Bronco Badlands 2022 Ford Bronco Base 2022 Ford Bronco Big Bend 2022 Ford Bronco Black Diamond 2022 Ford Bronco Outer Banks 2022 Ford Bronco Wildtrak 2022 Ford Bronco Everglades 2023 Ford Bronco Badlands 2023 Ford Bronco Base 2023 Ford Bronco Big Bend 2023 Ford Bronco Black Diamond 2023 Ford Bronco Outer Banks 2023 Ford Bronco Wildtrak 2023 Ford Bronco Everglades 2023 Ford Bronco Heritage Edition 2023 Ford Bronco Heritage Limited Edition
