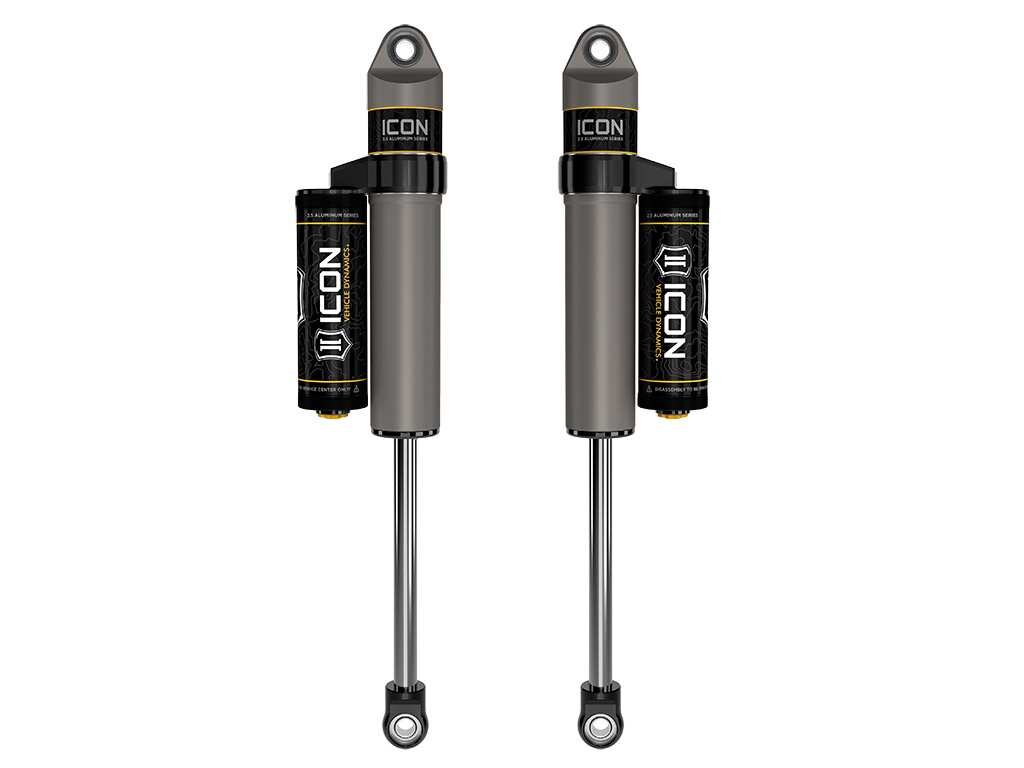

Ford (4WD - Leaf) Suspension Shock Absorber Set - ICON Vehicle Dynamics - 37710P

SHOCK ABSORBER PAIR
37710P
TECH NOTE: Compatible with 3-6” of front lift over stock
TECH NOTE: Can be installed with ICON Dual Shock Mount kit part number 39010.
A quantity of 2 are required per vehicle and heim spacers part number 257164 (qty 8) are also required.
99-04 FSD 4WD 3-6" FRONT 2.
5 VS PB PAIR
ICON V.
S.
2.
5 Aluminum Series shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street.
They feature remote reservoirs and are 100% rebuildable/revalveable.
ICON 2.
5 Aluminum Series shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street.
These shocks are configured specifically for each application in both length and damping tune.
Like all ICON'S Shock Absorbers, 2.
5 Aluminum Series shocks are 100% rebuildable and 100% revalveable.
For piggyback and specific remote reservoir applications, ICON'S unique use of a 6061 billet aluminum manifold a few inches below the top cap of the shock creates an internal Bump Zone that when used creates an additional 20% of damping force.
This additional force helps prevent harsh bottom outs and controls the suspension when compressing at high velocity.
If you are looking for a more user defined tune, consider looking into the ICON CDC Valve shocks.
ICON’s internal “Bump Zone” increases damping by 20% to provide more control as the shock approaches full compression
Remote reservoir design improves heat dissipation to reduce shock fade during prolonged use
Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
Nitrogen charged monotube design with piggyback reservoir
One piece digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
7/8” diameter induction hardened, chrome plated shock shaft
PTFE lined spherical bearings and application specific mounting hardware
6061 aircraft grade aluminum CNC machined components
One-piece impact extruded aluminum cylinders offer excellent corrosion resistance and consistent finish
100% Rebuildable
100% Revalveable
All ICON 2.
5 Series Piggyback and Remote Reservoir shocks can be upgraded to ICON’s Compression Damping Control Valve (CDCV)
ICON 1999-2004 Ford F-250/F-350 Super Duty 4WD, 3-6” Lift, Front, V.
S.
2.
5 Aluminum Series Shock Absorbers, Piggyback Reservoir, Pair, 37710P
ICON 1999-2004 Ford F-250/F-350 Super Duty 4WD, 3-6” Lift, Front, V.
S.
2.
5 Aluminum Series Shock Absorbers, Piggyback Reservoir, Pair
ICON 99-04 FSD 4WD 3-6" FRONT 2.
5 VS PB PAIR.

Detailed Fitment Results
Year Make Model 1999 Ford F-250 Super Duty 1999 Ford F-350 Super Duty 2000 Ford Excursion 2000 Ford F-250 Super Duty 2000 Ford F-350 Super Duty 2001 Ford Excursion 2001 Ford F-250 Super Duty 2001 Ford F-350 Super Duty 2002 Ford Excursion 2002 Ford F-250 Super Duty 2002 Ford F-350 Super Duty 2003 Ford Excursion 2003 Ford F-250 Super Duty 2003 Ford F-350 Super Duty 2004 Ford Excursion 2004 Ford F-250 Super Duty 2004 Ford F-350 Super Duty 2005 Ford Excursion
