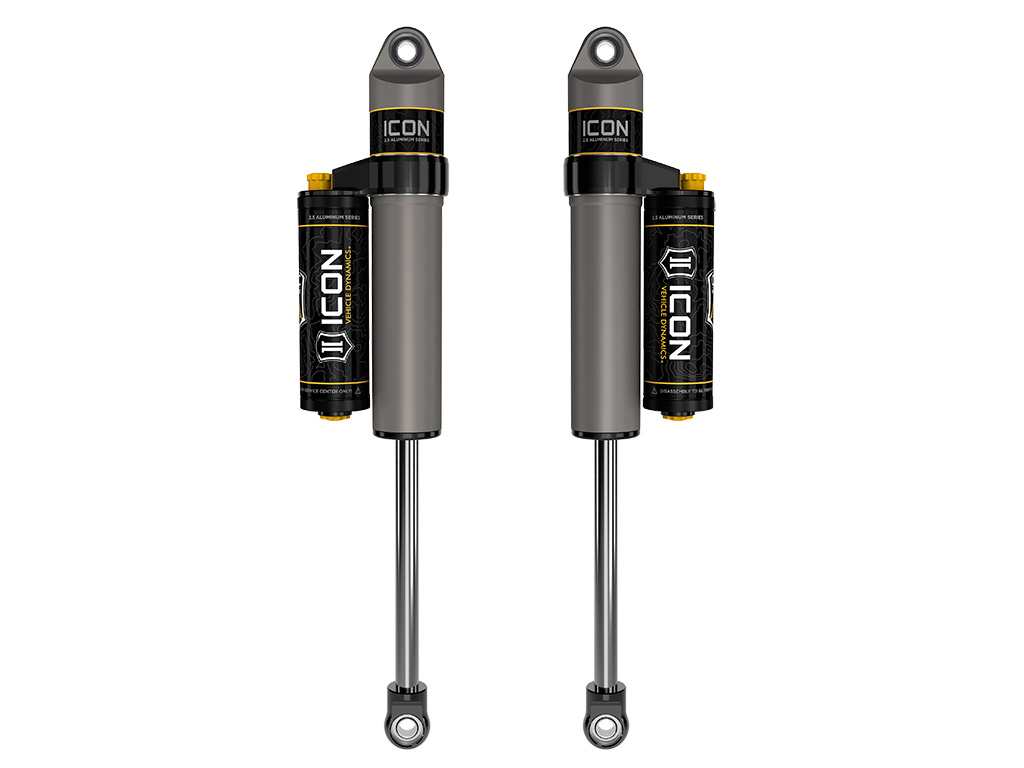

Ford (4WD - Leaf) Suspension Shock Absorber Set - ICON Vehicle Dynamics - 37710CP

SHOCK ABSORBER PAIR
37710CP
TECH NOTE: Compatible with 3-6” of front lift over stock
TECH NOTE: Can be installed with ICON Dual Shock Mount kit part number 39010.
A quantity of 2 are required per vehicle and heim spacers part number 257164 (qty 8) are also required.
99-04 FSD 4WD 3-6" FRONT 2.
5 VS PB CDCV PAIR
ICON V.
S.
2.
5 Aluminum Series shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street.
They feature remote reservoirs and are 100% rebuildable/revalveable.
ICON Vehicle Specific (V.
S.
) 2.
5 Aluminum Series shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street.
These shocks are configured specifically for each application in both length and damping tune.
Like all ICON'S Shock Absorbers, V.
S.
2.
5 Aluminum Series shocks are 100% rebuildable and 100% revalveable.
For piggyback and specific remote reservoir applications, ICON'S unique use of a 6061 billet aluminum manifold a few inches below the top cap of the shock creates an internal Bump Zone that when used creates an additional 20% of damping force.
This additional force helps prevent harsh bottom outs and controls the suspension when compressing at high velocity.
The ICON CDC Valve is an externally adjustable valve that restricts oil flow into the reservoir which creates 10 levels of compression damping force ranges.
Nitrogen charged monotube design with piggyback reservoir
Remote reservoir design improves heat dissipation to reduce shock fade during prolonged use
6061 aircraft grade aluminum CNC machined components
ICON’s internal “Bump Zone” increases damping by 20% to provide more control as the shock approaches full compression
PTFE lined spherical bearings and application specific mounting hardware
ICON's CDC Valve technology allows for 10 levels of high-resolution compression adjustability with the turn of a knob
7/8” diameter induction hardened, chrome plated shock shaft
One piece digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
One-piece impact extruded aluminum cylinders offer excellent corrosion resistance and consistent finish
100% Revalveable
100% Rebuildable
ICON 1999-2004 Ford F-250/F-350 Super Duty 4WD, 3-6” Lift, Front, V.
S.
2.
5 Aluminum Series Shock Absorbers, Piggyback Reservoir w/ CDCV, Pair, 37710CP
ICON 1999-2004 Ford F-250/F-350 Super Duty 4WD, 3-6” Lift, Front, V.
S.
2.
5 Aluminum Series Shock Absorbers, Piggyback Reservoir w/ CDCV, Pair
ICON 99-04 FSD 4WD 3-6" FRONT 2.
5 VS PB CDCV PAIR.

Detailed Fitment Results
Year Make Model 1999 Ford F-250 Super Duty 1999 Ford F-350 Super Duty 2000 Ford Excursion 2000 Ford F-250 Super Duty 2000 Ford F-350 Super Duty 2001 Ford Excursion 2001 Ford F-250 Super Duty 2001 Ford F-350 Super Duty 2002 Ford Excursion 2002 Ford F-250 Super Duty 2002 Ford F-350 Super Duty 2003 Ford Excursion 2003 Ford F-250 Super Duty 2003 Ford F-350 Super Duty 2004 Ford Excursion 2004 Ford F-250 Super Duty 2004 Ford F-350 Super Duty 2005 Ford Excursion
