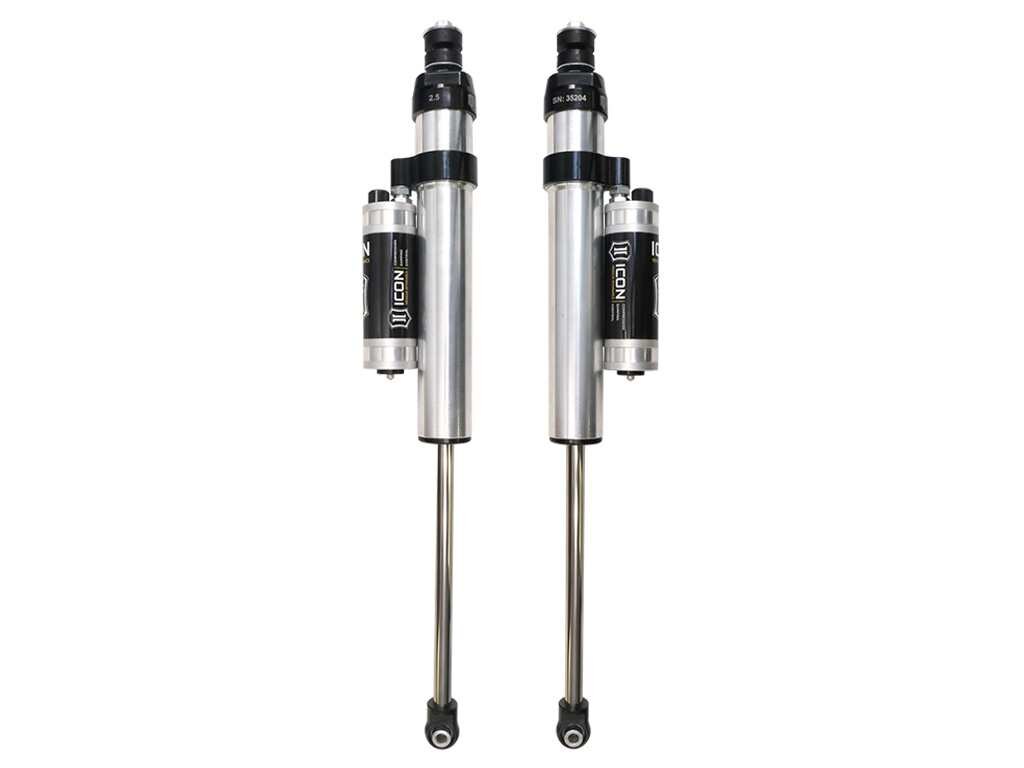

Jeep Suspension Shock Absorber Set - Rear - ICON Vehicle Dynamics - 27745CP

REAR SHOCK ABSORBERS
07-18 JK 4.
5" REAR 2.
5 VS PB CDCV PAIR
2007-2018 JK 4.
5" LIFT REAR 2.
5 VS PIGGYBACK CDCV SHCOK PAIR
ICON Vehicle Specific (V.
S.
) 2.
5 Series shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street.
These shocks are configured specifically for each application in both length and damping tune.
Like all ICON'S Shock Absorbers, V.
S.
2.
5 Series shocks are 100% rebuildable and 100% revalveable.
For piggyback and specific remote reservoir applications, ICON'S unique use of a 6061 billet aluminum manifold a few inches below the top cap of the shock creates an internal Bump Zone that when used creates an additional 20% of damping force.
This additional force helps prevent harsh bottom outs and controls the suspension when compressing at high velocity.
The ICON CDC Valve is an externally adjustable valve that restricts oil flow into the reservoir which creates 10 levels of compression damping force ranges.
If you are looking for a more user defined tune, consider looking into the Omega Series bypass shocks.
ICON's CDC Valve technology allows for 10 levels of high-resolution compression adjustability with the turn of a knob
ICON’s internal “Bump Zone” increases damping by 20% to provide more control as the shock approaches full compression
Piggyback reservoir design improves heat dissipation to reduce shock fade during prolonged use
Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
Nitrogen charged monotube design with piggyback reservoir
One piece digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
7/8” diameter induction hardened, chrome plated shock shaft
PTFE lined spherical bearings and application specific mounting hardware
6061 aircraft grade aluminum CNC machined components
CAD plated, precision machined 1026 DOM steel shock body for maximum durability and corrosion resistance
100% Rebuildable
100% Revalveable
ICON 2007-18 Jeep JK Wrangler, 4.
5" Lift, Rear, 2.
5 VS Piggy/CDCV Shocks, Pair, 27745CP
ICON 2007-18 Jeep JK Wrangler, 4.
5" Lift, Rear, 2.
5 VS Piggy/CDCV Shocks, Pair.

Detailed Fitment Results
Year Make Model 2007 Jeep Wrangler 2008 Jeep Wrangler 2009 Jeep Wrangler 2010 Jeep Wrangler 2011 Jeep Wrangler 2012 Jeep Wrangler 2013 Jeep Wrangler 2014 Jeep Wrangler 2015 Jeep Wrangler 2016 Jeep Wrangler 2017 Jeep Wrangler 2018 Jeep Wrangler JK
