20-23 Jeep Gladiator Suspension Shock Absorber Set - Rear - ICON Vehicle Dynamics - 27727EP

SHOCK ABSORBER PAIR
27727EP
TECH NOTE: Also requires installation of IIC kit (Part # 23502) and CDEV front shocks (Part # 27821EP)
TECH NOTE: Rear shocks require sway bar relocation kit (Part #22062) or sway bar link kit (Part #22070) to be used in conjunction with JT coil spacer (Part #22065) or JT coil spring (Part #22066)
TECH NOTE: Only fits models equipped with 3.
6L "Pentastar" V6 gasoline engine.
TECH NOTE: An iOS operated device is required to run ICON Intelligent Control App
20-23 JT 1.
5" REAR 2.
5 VS PB CDEV PAIR
ICON 2.
5 Aluminum Series shocks with CDEV are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street.
These shocks are configured for each application in both length and damping tune.
ICON Vehicle Specific (V.
S.
) 2.
5 Aluminum Series shocks with CDEV are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street.
These shocks are configured specifically for each application in both length and damping tune.
For piggyback and specific remote reservoir applications, ICON'S unique use of a 6061 billet aluminum manifold a few inches below the top cap of the shock creates an internal Bump Zone that when used creates an additional 20% of damping force.
This additional force helps prevent harsh bottom outs and controls the suspension when compressing at high velocity.
Like all ICON'S Shock Absorbers, V.
S.
2.
5 Aluminum Series shocks with CDEV are 100% rebuildable and 100% revalveable.
Compression Damping Electronic Valve (CDEV) is an electronically controlled valve that meters the flow of oil to regulate the amount of damping force that is created by the shock when compressed.
This infinitely variable valve can react in less than 40ms and has the ability to make extremely precise adjustments for varying terrain.
CDEV’s hydraulic circuits are also custom tailored per application to create the highest resolution and dynamic range allowable for each specific vehicle.

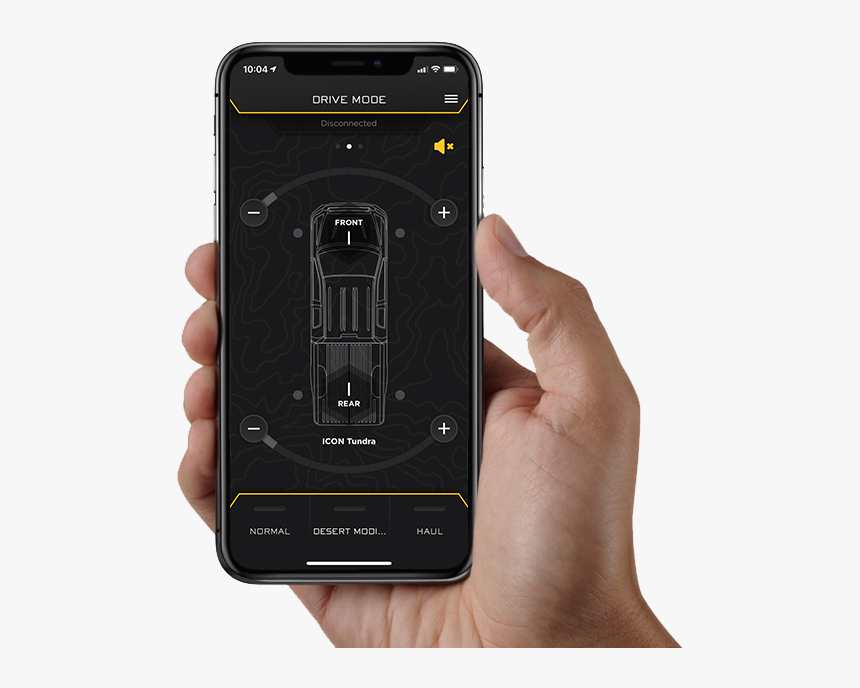

Powered by ICON Intelligent Control and proprietary ICON mobile app, the system uses information from the onboard G-force sensor and Gyroscope to perform calculations based on algorithms and user-defined settings to predict terrain and adjust shock settings via the CDEV accordingly.
ICON's CDE Valve technology allows for in vehicle adjustment of compression damping settings and active adjustment via the ICON Intelligent Control (IIC)
ICON’s internal “Bump Zone” increases damping by 20% to provide more control as the shock approaches full compression
One-piece, hard anodized, impact extruded aluminum cylinders offer excellent corrosion resistance and consistent finish
Remote reservoir design improves heat dissipation to reduce shock fade during prolonged use
Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
Nitrogen charged monotube design with piggyback reservoir
One-piece digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
7/8” diameter induction hardened, chrome plated shock shaft
PTFE lined spherical bearings and application specific mounting hardware
6061 aircraft grade aluminum CNC machined components
Protective shin guards standard with every shock
100% Rebuildable
100% Revalveable
ICON 2020-2023 Jeep Gladiator, 1.
5" Lift, Rear, V.
S.
2.
5 Aluminum Series Shock Absorbers, Piggyback Reservoir w/ CDEV, Pair, 27727EP
ICON 2020-2023 Jeep Gladiator, 1.
5" Lift, Rear, V.
S.
2.
5 Aluminum Series Shock Absorbers, Piggyback Reservoir w/ CDEV, Pair
ICON 20-23 JT 1.
5" REAR 2.
5 VS PB CDEV PAIR.

Detailed Fitment Results
Year Make Model Submodel 2020 Jeep Gladiator Rubicon 2020 Jeep Gladiator Sport 2020 Jeep Gladiator Overland 2020 Jeep Gladiator Mojave 2020 Jeep Gladiator Sport S 2020 Jeep Gladiator Altitude 2020 Jeep Gladiator Launch Edition 2021 Jeep Gladiator Rubicon 2021 Jeep Gladiator Sport 2021 Jeep Gladiator Overland 2021 Jeep Gladiator Mojave 2021 Jeep Gladiator Sport S 2021 Jeep Gladiator Willys Sport 2021 Jeep Gladiator High Altitude 2021 Jeep Gladiator Willys 2021 Jeep Gladiator Texas Trail 2021 Jeep Gladiator 80th Anniversary 2022 Jeep Gladiator Rubicon 2022 Jeep Gladiator Sport 2022 Jeep Gladiator Overland 2022 Jeep Gladiator Mojave 2022 Jeep Gladiator Sport S 2022 Jeep Gladiator Altitude 2022 Jeep Gladiator Willys Sport 2022 Jeep Gladiator High Altitude 2022 Jeep Gladiator Willys 2022 Jeep Gladiator Texas Trail 2023 Jeep Gladiator Rubicon 2023 Jeep Gladiator Sport 2023 Jeep Gladiator Overland 2023 Jeep Gladiator Mojave 2023 Jeep Gladiator Sport S 2023 Jeep Gladiator Willys Sport 2023 Jeep Gladiator High Altitude 2023 Jeep Gladiator Willys 2023 Jeep Gladiator Texas Trail 2023 Jeep Gladiator Freedom 2023 Jeep Gladiator Rubicon Blue Sunrider
