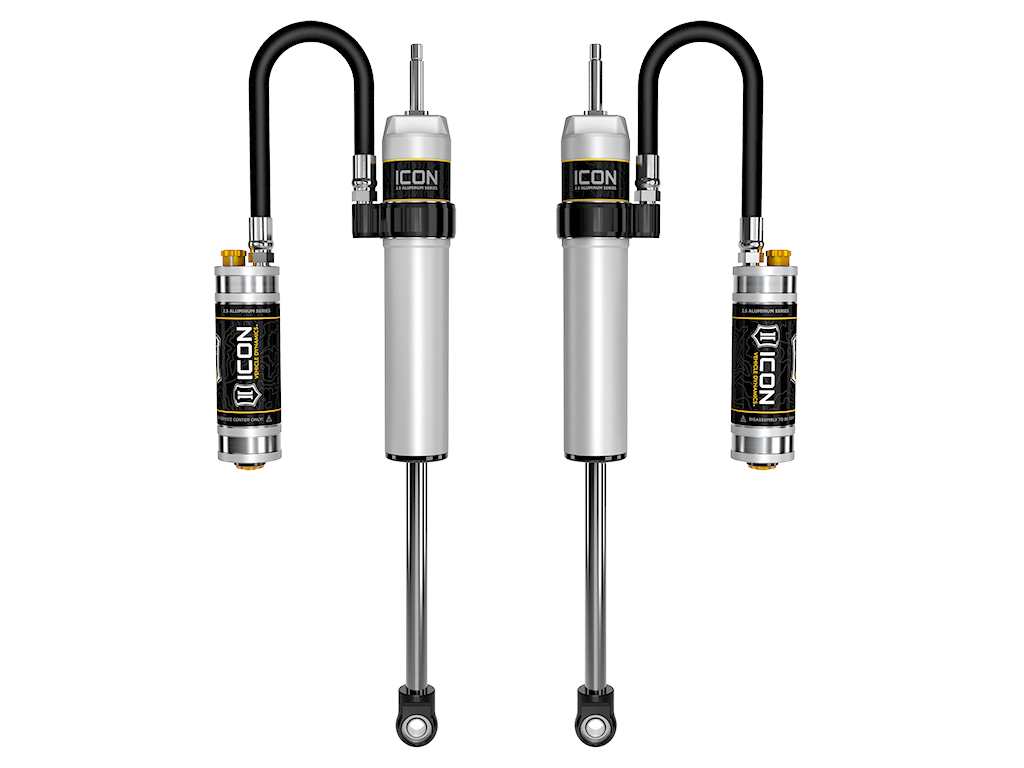

Ram (4WD - Coil/Coil/Air) Suspension Shock Absorber Set - Front - ICON Vehicle Dynamics - 217803CP

FRNT SHOCK ABSORBERS
14-UP RAM 2500 4.
5 FRNT 2.
5 RR CDCV PAIR
14-UP RAM 2500 4.
5" FRONT 2.
5 VS RR CDCV PAIR
2014-UP RAM 2500 4.
5" FRONT 2.
5 VS REMOTE RESERVOIR CDCV SHOCK PAIR
ICON Vehicle Specific (V.
S.
) 2.
5 Aluminum Series shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street.
These shocks are configured specifically for each application in both length and damping tune.
Like all ICON'S Shock Absorbers, V.
S.
2.
5 Aluminum Series shocks are 100% rebuildable and 100% revalveable.
For piggyback and specific remote reservoir applications, ICON'S unique use of a 6061 billet aluminum manifold a few inches below the top cap of the shock creates an internal Bump Zone that when used creates an additional 20% of damping force.
This additional force helps prevent harsh bottom outs and controls the suspension when compressing at high velocity.
The ICON CDC Valve is an externally adjustable valve that restricts oil flow into the reservoir which creates 10 levels of compression damping force ranges.
ICON's CDC Valve technology allows for 10 levels of high-resolution compression adjustability with the turn of a knob
ICON’s internal “Bump Zone” increases damping by 20% to provide more control as the shock approaches full compression
Remote reservoir design improves heat dissipation to reduce shock fade during prolonged use
Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
Nitrogen charged monotube design with remote reservoir
One piece digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
7/8” diameter induction hardened, chrome plated shock shaft
PTFE lined spherical bearings and application specific mounting hardware
6061 aircraft grade aluminum CNC machined components
2.
5 Aluminum Series rear shocks feature one-piece impact extruded aluminum cylinders for excellent corrosion resistance and consistent finish
100% Rebuildable
100% Revalveable
ICON 2014-Up Ram 2500, 4.
5” Lift, Front, 2.
5 VS Remote/CDCV Shocks, Pair, 217803CP
ICON 2014-Up Ram 2500, 4.
5” Lift, Front, 2.
5 VS Remote/CDCV Shocks, Pair.

Detailed Fitment Results
Year Make Model Submodel 2013 Ram 3500 SLT 2013 Ram 3500 Tradesman 2013 Ram 3500 Laramie 2013 Ram 3500 Big Horn 2013 Ram 3500 Laramie Longhorn 2013 Ram 3500 ST 2013 Ram 3500 Lone Star 2014 Ram 2500 Power Wagon 2014 Ram 2500 Tradesman 2014 Ram 2500 Big Horn 2014 Ram 2500 Laramie 2014 Ram 2500 Laramie Longhorn 2014 Ram 2500 Laramie Limited 2014 Ram 2500 R/T 2014 Ram 2500 Outdoorsman 2014 Ram 2500 ST 2014 Ram 2500 SLT 2014 Ram 2500 Lone Star 2014 Ram 3500 SLT 2014 Ram 3500 Tradesman 2014 Ram 3500 Laramie 2014 Ram 3500 Big Horn 2014 Ram 3500 Laramie Longhorn 2014 Ram 3500 ST 2014 Ram 3500 Lone Star 2014 Ram 3500 Laramie Limited 2015 Ram 2500 Power Wagon 2015 Ram 2500 Tradesman 2015 Ram 2500 Big Horn 2015 Ram 2500 Laramie 2015 Ram 2500 Laramie Longhorn 2015 Ram 2500 Laramie Limited 2015 Ram 2500 R/T 2015 Ram 2500 Outdoorsman 2015 Ram 2500 ST 2015 Ram 2500 SLT 2015 Ram 2500 Lone Star 2015 Ram 2500 Hemi Sport 2015 Ram 3500 SLT 2015 Ram 3500 Tradesman 2015 Ram 3500 Laramie 2015 Ram 3500 Big Horn 2015 Ram 3500 Laramie Longhorn 2015 Ram 3500 ST 2015 Ram 3500 Lone Star 2015 Ram 3500 Laramie Limited 2016 Ram 2500 Power Wagon 2016 Ram 2500 Tradesman 2016 Ram 2500 Big Horn 2016 Ram 2500 Laramie 2016 Ram 2500 Laramie Longhorn 2016 Ram 2500 Laramie Limited 2016 Ram 2500 R/T 2016 Ram 2500 Outdoorsman 2016 Ram 2500 ST 2016 Ram 2500 SLT 2016 Ram 2500 Hemi Sport 2016 Ram 2500 Limited 2016 Ram 3500 SLT 2016 Ram 3500 Tradesman 2016 Ram 3500 Laramie 2016 Ram 3500 Big Horn 2016 Ram 3500 Laramie Longhorn 2016 Ram 3500 ST 2016 Ram 3500 Laramie Limited 2016 Ram 3500 Limited 2017 Ram 2500 Power Wagon 2017 Ram 2500 Tradesman 2017 Ram 2500 Big Horn 2017 Ram 2500 Laramie 2017 Ram 2500 Laramie Longhorn 2017 Ram 2500 Laramie Limited 2017 Ram 2500 R/T 2017 Ram 2500 Outdoorsman 2017 Ram 2500 ST 2017 Ram 2500 Limited 2017 Ram 2500 SLT HD 2017 Ram 2500 Sport 2017 Ram 2500 SLT 2017 Ram 2500 Laramie HD 2017 Ram 3500 SLT 2017 Ram 3500 Tradesman 2017 Ram 3500 Laramie 2017 Ram 3500 Big Horn 2017 Ram 3500 Laramie Longhorn 2017 Ram 3500 ST 2017 Ram 3500 Lone Star 2017 Ram 3500 Laramie Limited 2017 Ram 3500 Limited 2018 Ram 2500 Power Wagon 2018 Ram 2500 Tradesman 2018 Ram 2500 Big Horn 2018 Ram 2500 Laramie 2018 Ram 2500 Laramie Longhorn 2018 Ram 2500 Laramie Limited 2018 Ram 2500 R/T 2018 Ram 2500 Outdoorsman 2018 Ram 2500 ST 2018 Ram 2500 Limited 2018 Ram 2500 SLT HD 2018 Ram 2500 Sport 2018 Ram 2500 SLT 2018 Ram 3500 SLT 2018 Ram 3500 Tradesman 2018 Ram 3500 Laramie 2018 Ram 3500 Big Horn 2018 Ram 3500 Laramie Longhorn 2018 Ram 3500 ST 2018 Ram 3500 Laramie Limited 2018 Ram 3500 Limited 2019 Ram 2500 Power Wagon 2019 Ram 2500 Tradesman 2019 Ram 2500 Big Horn 2019 Ram 2500 Laramie 2019 Ram 2500 Laramie Longhorn 2019 Ram 2500 Laramie Limited 2019 Ram 2500 R/T 2019 Ram 2500 Lone Star 2019 Ram 2500 Limited 2019 Ram 2500 SLT HD 2019 Ram 2500 Sport 2019 Ram 2500 SLT 2019 Ram 3500 SLT 2019 Ram 3500 Tradesman 2019 Ram 3500 Laramie 2019 Ram 3500 Big Horn 2019 Ram 3500 Laramie Longhorn 2019 Ram 3500 Lone Star 2019 Ram 3500 Laramie Limited 2019 Ram 3500 Limited 2020 Ram 2500 Power Wagon 2020 Ram 2500 Tradesman 2020 Ram 2500 Big Horn 2020 Ram 2500 Laramie 2020 Ram 2500 Laramie Longhorn 2020 Ram 2500 Laramie Limited 2020 Ram 2500 Lone Star 2020 Ram 2500 Limited 2020 Ram 2500 SLT HD 2020 Ram 3500 SLT 2020 Ram 3500 Tradesman 2020 Ram 3500 Laramie 2020 Ram 3500 Big Horn 2020 Ram 3500 Laramie Longhorn 2020 Ram 3500 Lone Star 2020 Ram 3500 Laramie Limited 2020 Ram 3500 Limited 2021 Ram 2500 Power Wagon 2021 Ram 2500 Tradesman 2021 Ram 2500 Big Horn 2021 Ram 2500 Laramie 2021 Ram 2500 Laramie Longhorn 2021 Ram 2500 Lone Star 2021 Ram 2500 Limited 2021 Ram 2500 SLT HD 2021 Ram 3500 SLT 2021 Ram 3500 Tradesman 2021 Ram 3500 Laramie 2021 Ram…
