Ram (4WD) Suspension Shock Absorber Set - Front - ICON Vehicle Dynamics - 217802CP

FRNT SHOCK ABSORBERS
14-UP RAM 2500 2.
5 FRNT 2.
5 RR CDCV PAIR
14-UP RAM 2500 2.
5" FRONT 2.
5 VS RR CDCV PAIR
2014-UP RAM 2500 2.
5" LIFT FRONT 2.
5 VS CDCV REMOTE RESERVOIR SHOCK PAIR

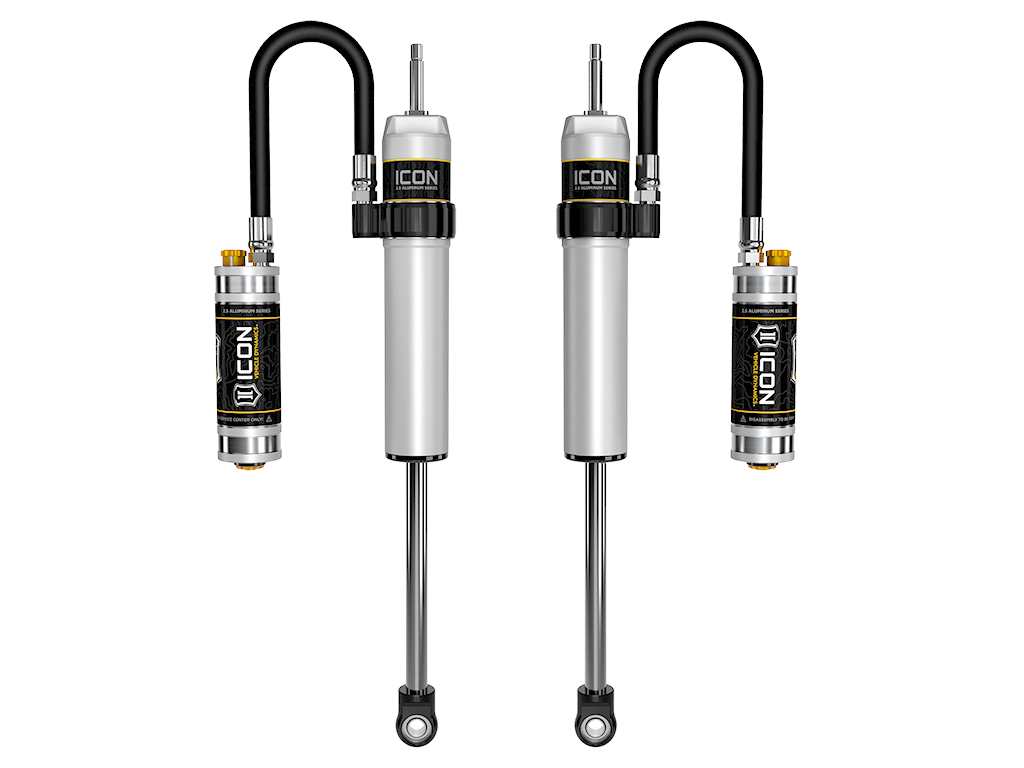

ICON Vehicle Specific 2.
5 Aluminum Series shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street.
These shocks are configured specifically for each application in both length and damping tune.
Like all ICON'S Shock Absorbers, 2.
5 Aluminum Series shocks are 100% rebuildable and 100% revalveable.
For piggyback and specific remote reservoir applications, ICON'S unique use of a 6061 billet aluminum manifold a few inches below the top cap of the shock creates an internal Bump Zone that when used creates an additional 20% of damping force.
This additional force helps prevent harsh bottom outs and controls the suspension when compressing at high velocity.
The ICON CDC Valve is an externally adjustable valve that restricts oil flow into the reservoir which creates 10 levels of compression damping force ranges.
ICON's CDC Valve technology allows for 10 levels of high-resolution compression adjustability with the turn of a knob
One-piece impact extruded aluminum cylinders offer excellent corrosion resistance and consistent finish
100% Rebuildable
100% Revalveable
ICON’s internal “Bump Zone” increases damping by 20% to provide more control as the shock approaches full compression
Remote reservoir design improves heat dissipation to reduce shock fade during prolonged use
Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
Nitrogen charged monotube design with remote reservoir
One-piece digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
7/8” diameter induction hardened, chrome plated shock shaft
PTFE lined spherical bearings and application specific mounting hardware
6061 aircraft grade aluminum CNC machined components
ICON 2014-Up Ram 2500, 2.
5” Lift, Front, 2.
5 VS Remote/CDCV Shocks, Pair, 217802CP
ICON 2014-Up Ram 2500, 2.
5” Lift, Front, 2.
5 VS Remote/CDCV Shocks, Pair.

Detailed Fitment Results
Year Make Model 2013 Ram 3500 2014 Ram 2500 2014 Ram 3500 2015 Ram 2500 2015 Ram 3500 2016 Ram 2500 2016 Ram 3500 2017 Ram 2500 2017 Ram 3500 2018 Ram 2500 2018 Ram 3500 2019 Ram 2500 2019 Ram 3500 2020 Ram 2500 2020 Ram 3500 2021 Ram 2500 2021 Ram 3500 2022 Ram 2500 2022 Ram 3500
