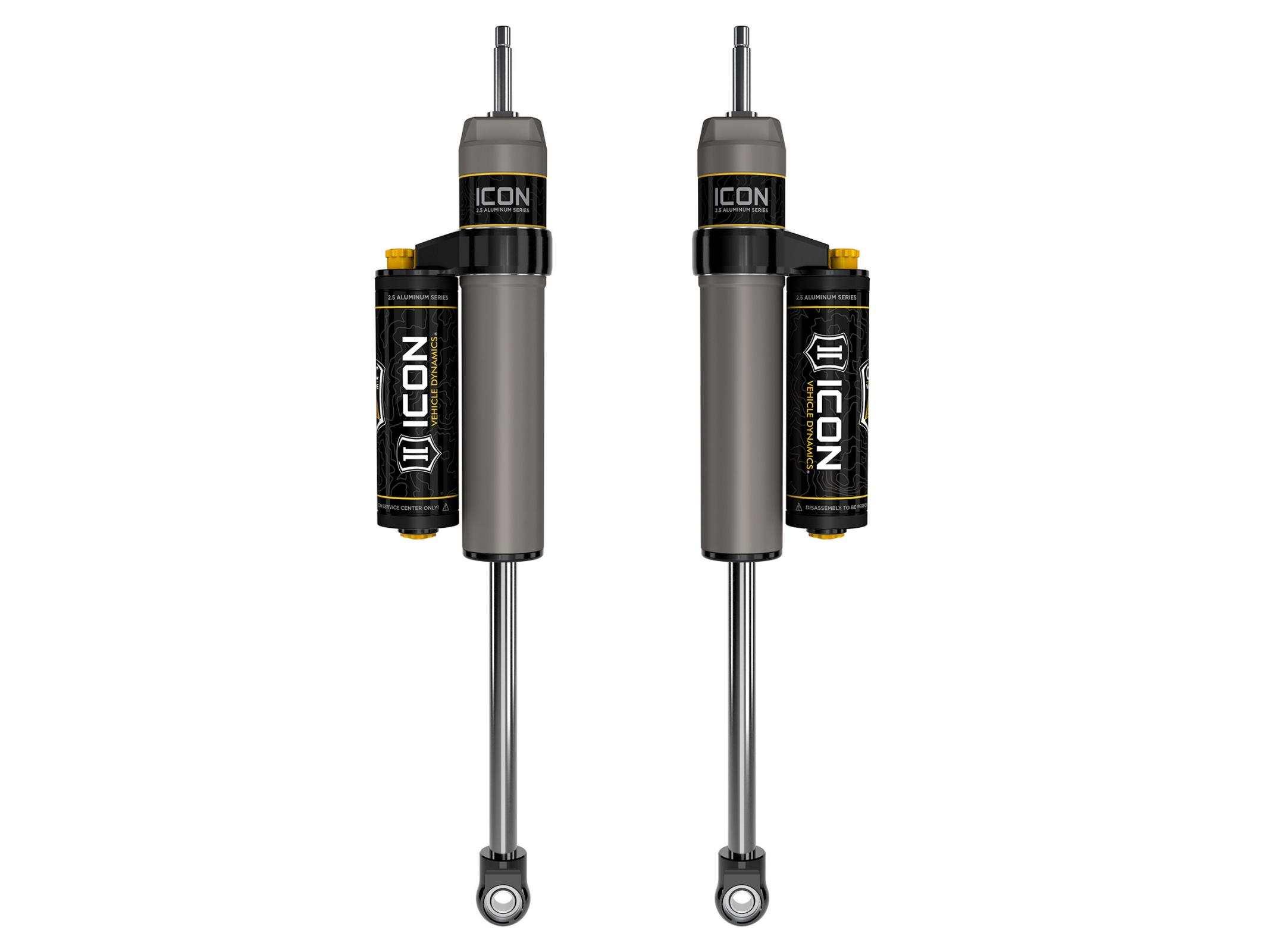

19-23 Ram 1500 (Coil) Suspension Shock Absorber Set - ICON Vehicle Dynamics - 217716CP

SHOCK ABSORBER PAIR
217716CP
APPLICATION NOTE #105: Not for vehicles with rear factory air ride
TECH NOTE: Compatible with 0-3" of rear lift on most Ram 1500 submodels
TECH NOTE: Compatible with 0-2.
5" of rear lift on 2019-2023 Ram 1500 Rebel
TECH NOTE: Will not fit 2021-2023 Ram 1500 TRX
TECH NOTE: Will not fit 2019-2023 Ram 1500 Classic models
19-23 RAM 1500 0-3" REAR 2.
5 VS PB CDCV PAIR
ICON Vehicle Specific 2.
5 Aluminum Series shocks are designed to give your vehicle outstanding performance off-road and a smooth ride on the street.
These shocks are configured specifically for each application in length and damping tune.
ICON’s 2.
5 Aluminum Series shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street.
These shocks are configured specifically for each application in both length and damping tune.
Featuring one-piece impact extruded aluminum cylinders, these 2.
5 Aluminum Series shocks offer lighter weight, improved corrosion resistance, and a more uniform finish than traditional plated steel cylinders.
Like all ICON'S Shock Absorbers, 2.
5 Aluminum Series shocks are 100% rebuildable and 100% revalveable.
For piggyback and specific remote reservoir applications, ICON'S unique use of a 6061 billet aluminum manifold a few inches below thetop cap of the shock creates an internal Bump Zone that when used creates an additional 20% of damping force.
This additional force helps prevent harsh bottom outs and controls the suspension when compressing at high velocity.
The ICON CDC Valve is an externally adjustable valve that restricts oil flow into the reservoir which creates 10 levels of compression damping force ranges.
ICON's CDC Valve technology allows for 10 levels of high-resolution compression adjustability with the turn of a knob
One-piece impact extruded aluminum cylinders offer excellent corrosion resistance and consistent finish
100% Rebuildable
100% Revalveable
ICON’s internal “Bump Zone” increases damping by 20% to provide more control as the shock approaches full compression
Piggyback reservoir design improves heat dissipation to reduce shock fade during prolonged use
Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
Nitrogen charged monotube design with piggyback reservoir
Double-sealed Schrader caps reduce risk of damage
One piece digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
7/8” diameter induction hardened, chrome plated shock shaft
PTFE lined spherical bearings and application specific mounting hardware
6061 aircraft grade aluminum CNC machined components
ICON 2019-2023 Ram 1500, 0-3” Lift, Rear, V.
S.
2.
5 Aluminum Series Shock Absorbers, Piggyback Reservoir w/ CDCV, Pair, 217716CP
ICON 2019-2023 Ram 1500, 0-3” Lift, Rear, V.
S.
2.
5 Aluminum Series Shock Absorbers, Piggyback Reservoir w/ CDCV, Pair
ICON 19-23 RAM 1500 0-3" REAR 2.
5 VS PB CDCV PAIR.

Detailed Fitment Results
Year Make Model Submodel 2019 Ram 1500 Big Horn 2019 Ram 1500 HFE 2019 Ram 1500 Laramie 2019 Ram 1500 Limited 2019 Ram 1500 Lone Star 2019 Ram 1500 Rebel 2019 Ram 1500 SLT 2019 Ram 1500 Sport 2019 Ram 1500 Tradesman 2019 Ram 1500 Laramie Longhorn 2019 Ram 1500 ST 2019 Ram 1500 SXT 2020 Ram 1500 Big Horn 2020 Ram 1500 HFE 2020 Ram 1500 Laramie 2020 Ram 1500 Limited 2020 Ram 1500 Lone Star 2020 Ram 1500 Rebel 2020 Ram 1500 SLT 2020 Ram 1500 Sport 2020 Ram 1500 Tradesman 2020 Ram 1500 Laramie Longhorn 2020 Ram 1500 ST 2020 Ram 1500 Laramie Sport 2020 Ram 1500 Hemi Sport 2020 Ram 1500 Special Service 2021 Ram 1500 Big Horn 2021 Ram 1500 HFE 2021 Ram 1500 Laramie 2021 Ram 1500 Limited 2021 Ram 1500 Lone Star 2021 Ram 1500 Rebel 2021 Ram 1500 SLT 2021 Ram 1500 Sport 2021 Ram 1500 Tradesman 2021 Ram 1500 Laramie Longhorn 2021 Ram 1500 ST 2021 Ram 1500 Laramie Sport 2021 Ram 1500 Hemi Sport 2021 Ram 1500 Special Service 2021 Ram 1500 Limited Longhorn 2021 Ram 1500 Longhorn 2022 Ram 1500 Big Horn 2022 Ram 1500 HFE 2022 Ram 1500 Laramie 2022 Ram 1500 Limited 2022 Ram 1500 Lone Star 2022 Ram 1500 Rebel 2022 Ram 1500 SLT 2022 Ram 1500 Sport 2022 Ram 1500 Tradesman 2022 Ram 1500 Laramie Sport 2022 Ram 1500 Hemi Sport 2022 Ram 1500 Limited Longhorn 2023 Ram 1500 Big Horn 2023 Ram 1500 HFE 2023 Ram 1500 Laramie 2023 Ram 1500 Limited 2023 Ram 1500 Lone Star 2023 Ram 1500 Rebel 2023 Ram 1500 SLT 2023 Ram 1500 Sport 2023 Ram 1500 Tradesman 2023 Ram 1500 Laramie Sport 2023 Ram 1500 Hemi Sport 2023 Ram 1500 Limited Longhorn 2023 Ram 1500 Big Horn OffRoad
