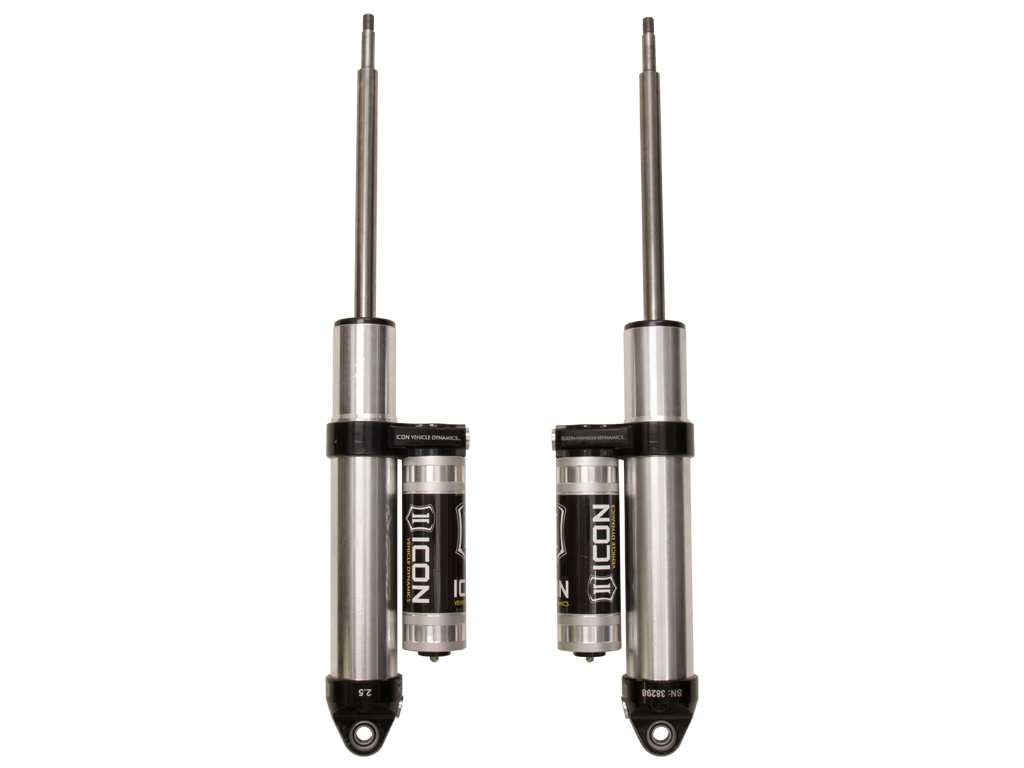

14-18 Ram 2500 (Coil) Suspension Shock Absorber Set - Rear - ICON Vehicle Dynamics - 217707P

REAR SHOCK ABSORBERS
14-UP RAM 2500 2" REAR 2.
5 VS PB PAIR
14-UP RAM 2500 2" STANDARD REAR 2.
5 VS PB PAIR
2014-UP RAM 2500 2" LIFT STANDARD REAR 2.
5 VS PIGGYBACK SHOCK PAIR
ICON Vehicle Specific (V.
S.
) 2.
5 Aluminum Series shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street.
These shocks are configured specifically for each application in both length and damping tune.
Like all ICON'S Shock Absorbers, V.
S.
2.
5 Aluminum Series shocks are 100% rebuildable and 100% revalveable.
For piggyback and specific remote reservoir applications, ICON'S unique use of a 6061 billet aluminum manifold a few inches below the top cap of the shock creates an internal Bump Zone that when used creates an additional 20% of damping force.
This additional force helps prevent harsh bottom outs and controls the suspension when compressing at high velocity.
If you are looking for a more user defined tune, consider looking into the Compression Damping Control Valve (CDCV) shocks.
ICON’s internal “Bump Zone” increases damping by 20% to provide more control as the shock approaches full compression
Remote reservoir design improves heat dissipation to reduce shock fade during prolonged use
Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
Nitrogen charged monotube design with piggyback reservoir
One piece digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
7/8” diameter induction hardened, chrome plated shock shaft
PTFE lined spherical bearings and application specific mounting hardware
6061 aircraft grade aluminum CNC machined components
One-piece impact extruded aluminum cylinders offer excellent corrosion resistance and consistent finish
100% Rebuildable
100% Revalveable
ICON 2014-Up Ram 2500, 2” Lift, Rear, 2.
5 VS Standard Piggyback Res Shocks, Pair, 217707P
ICON 2014-Up Ram 2500, 2” Lift, Rear, 2.
5 VS Standard Piggyback Res Shocks, Pair.

Detailed Fitment Results
Year Make Model 2014 Ram 2500 2015 Ram 2500 2016 Ram 2500 2017 Ram 2500 2018 Ram 2500
