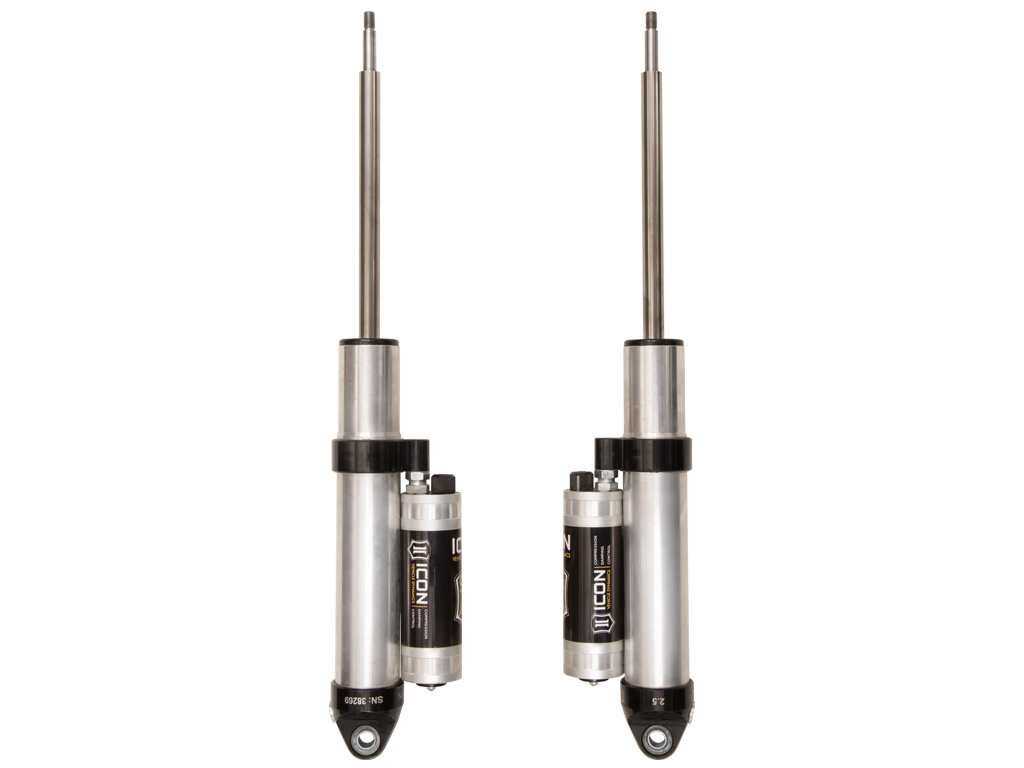

14-18 Ram 2500 (Coil) Suspension Shock Absorber Set - Rear - ICON Vehicle Dynamics - 217707CP

REAR SHOCK ABSORBERS
14-UP RAM 2500 2 REAR 2.
5 PB CDCV PAIR
14-UP RAM 2500 2" STANDARD REAR 2.
5 VS PB CDCV PAIR
2014-UP RAM 2500 2" STANDARD REAR 2.
5 VS PIGGYBACK CDCV SHOCK PAIR
ICON Vehicle Specific (V.
S.
) 2.
5 Series shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street.
These shocks are configured specifically for each application in both length and damping tune.
Like all ICON'S Shock Absorbers, V.
S.
2.
5 Series shocks are 100% rebuildable and 100% revalveable.
For piggyback and specific remote reservoir applications, ICON'S unique use of a 6061 billet aluminum manifold a few inches below the top cap of the shock creates an internal Bump Zone that when used creates an additional 20% of damping force.
This additional force helps prevent harsh bottom outs and controls the suspension when compressing at high velocity.
The ICON CDC Valve is an externally adjustable valve that restricts oil flow into the reservoir which creates 10 levels of compression damping force ranges.
ICON's CDC Valve technology allows for 10 levels of high-resolution compression adjustability with the turn of a knob
ICON’s internal “Bump Zone” increases damping by 20% to provide more control as the shock approaches full compression
Piggyback reservoir design improves heat dissipation to reduce shock fade during prolonged use
Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
Nitrogen charged monotube design with piggyback reservoir
One piece digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
7/8” diameter induction hardened, chrome plated shock shaft
PTFE lined spherical bearings and application specific mounting hardware
6061 aircraft grade aluminum CNC machined components
CAD plated, precision machined 1026 DOM steel shock body for maximum durability and corrosion resistance
100% Rebuildable
100% Revalveable
ICON 2014-Up Ram 2500, 2” Lift, Rear, 2.
5 VS Standard Piggyback/CDCV Shocks, Pair, 217707CP
ICON 2014-Up Ram 2500, 2” Lift, Rear 2.
5 VS Standard Piggyback/CDCV Shocks, Pair.

Detailed Fitment Results
Year Make Model 2014 Ram 2500 2015 Ram 2500 2016 Ram 2500 2017 Ram 2500 2018 Ram 2500
